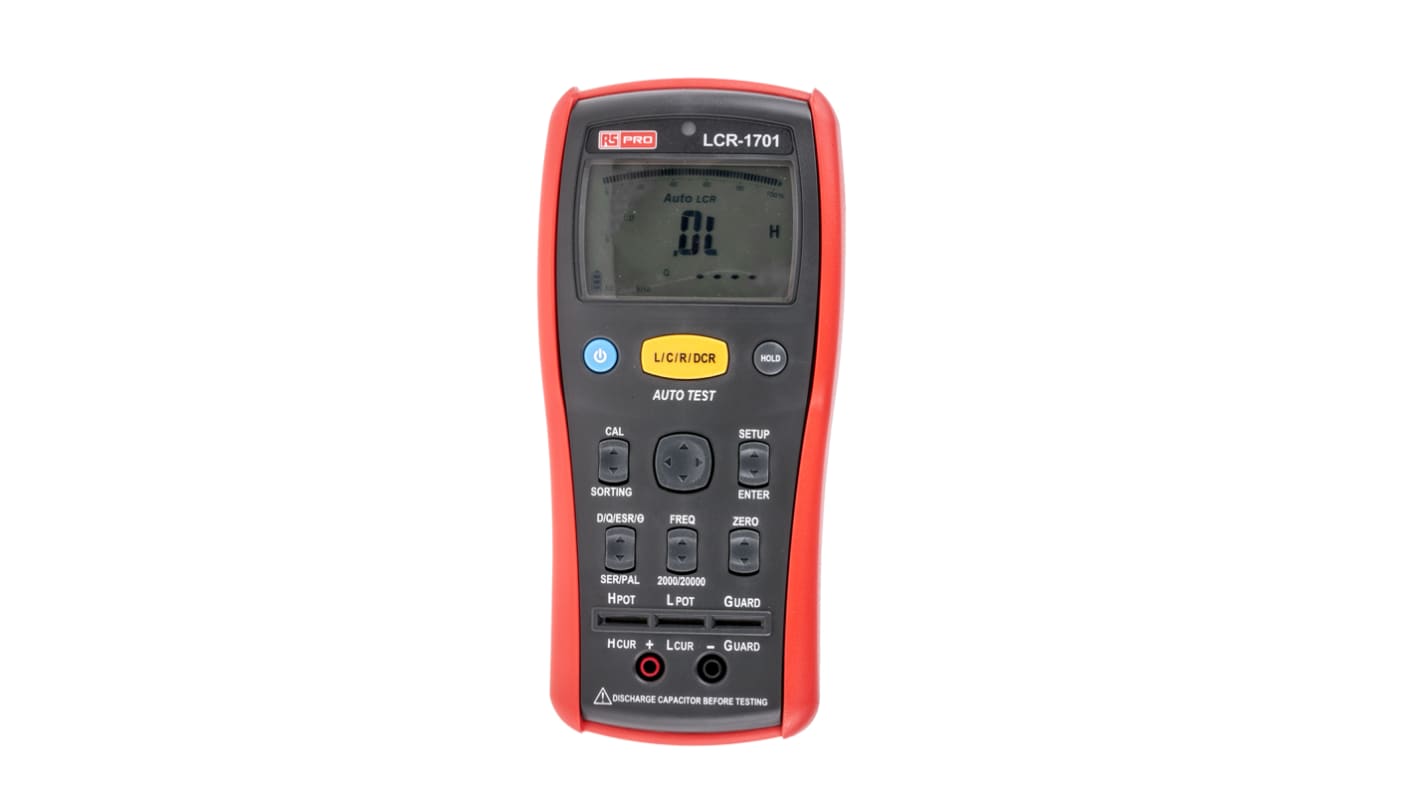

RS PRO LCR-1701 Handheld LCR Meter 20mF, 200 MΩ, 20000H
- RS Stock No.:
- 123-3255
- Manufacturer:
- RS PRO
53 In stock for delivery within 2 working days
Added
Price Each
€289.43
(exc. VAT)
€356.00
(inc. VAT)
| Units | Per unit |
| 1 + | €289.43 |
Calibration Options:
- RS Stock No.:
- 123-3255
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Pro LCR1701 LCR Meter
The ISO-TECH LCR 1701 hand held LCR smart meter features innovative automatic selection technology. Its auto ON/OFF backlit display gives the user continuous visibility while extending battery life. This instrument is competitively priced, technically advanced, highly efficient, slim and tactile, with ergonomically designed comfort grip. Also includes alligator clips, shorting bar, battery (installed) and manual.
Features and Benefits:
• 20000/2000 Count dual digital display
• 46 segments bar graph display
• Auto selection of LCR testing
• Auto-ranging
• 0.2% basic accuracy capacitance and inductance
• Measurement parameters L.C.R.D.Q., Ɵ, EsR
• Parallel/serial test mode
• Sorting mode for QC
• 46 segments bar graph display
• Auto selection of LCR testing
• Auto-ranging
• 0.2% basic accuracy capacitance and inductance
• Measurement parameters L.C.R.D.Q., Ɵ, EsR
• Parallel/serial test mode
• Sorting mode for QC
• Test frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, selectable
Dimensions (W x L x D): 95 mm x 207 mm x 52 mm
Supplied with
Alligator clips, shorting bar, battery (installed), manual
Specifications
Attribute | Value |
|---|---|
| Maximum Capacitance Measurement | 20mF |
| Maximum Resistance Measurement | 200 MΩ |
| Maximum Inductance Measurement | 20000H |
| Battery Life | 50 h |
| Battery Type | AA |
| Bench/Handheld | Handheld |
| Display Type | Auto Backlit Bar Graph Display |
| Power Source | Battery |
| Dimensions | 95 x 51.2 x 200mm |
| Weight | 605g |
| Height | 200mm |
| Length | 95mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Model Number p | LCR-1701 |
| Width | 51.2mm |
