RS PRO Handheld LCR Meter 20mF, 200 MΩ, 20000H With RS Calibration
- RS Stock No.:
- 123-3429
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch when stock is available
Added
Price Each
€497.19
(exc. VAT)
€611.54
(inc. VAT)
| Units | Per unit |
| 1 + | €497.19 |
- RS Stock No.:
- 123-3429
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

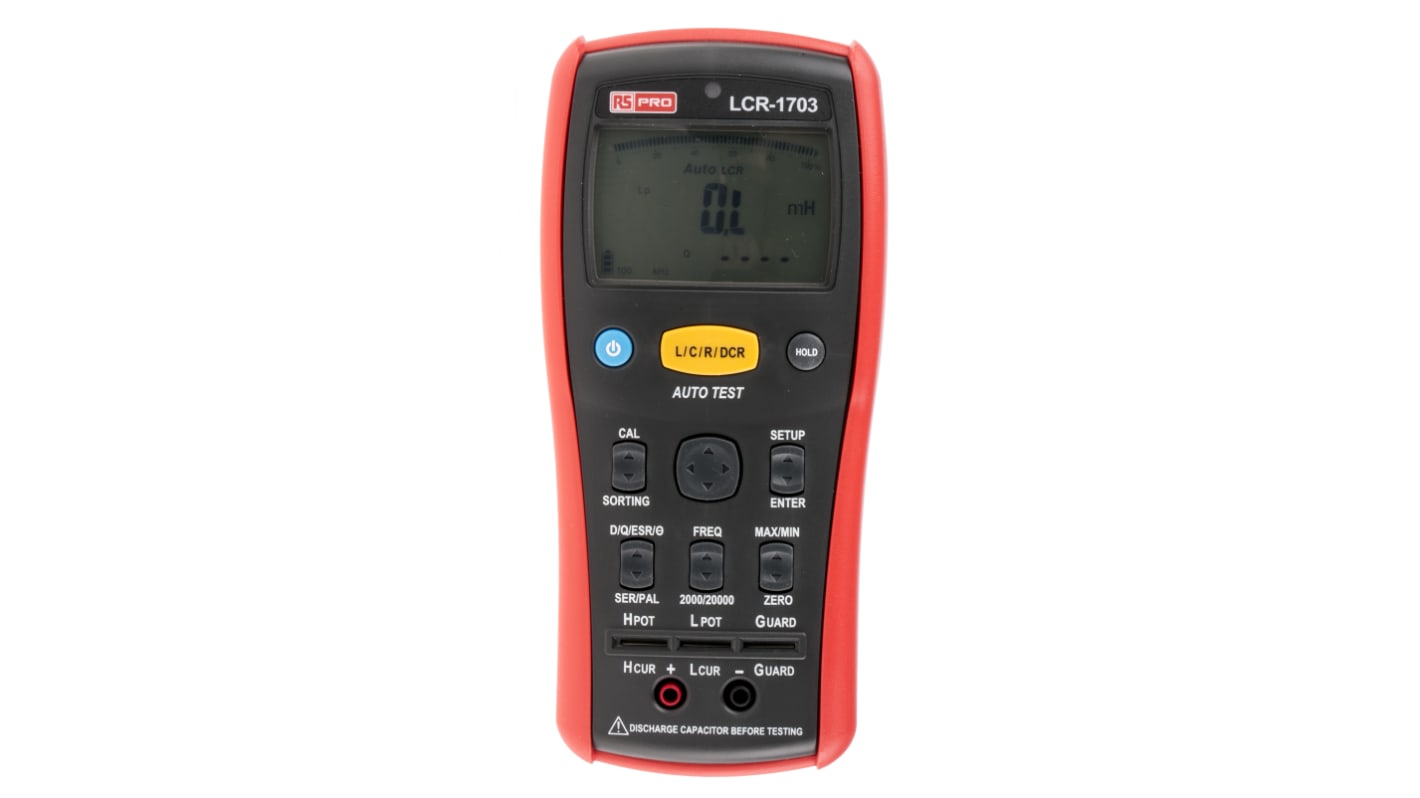

RS Pro LCR1703 LCR Meter
RS Pro LCR1703 hand held LCR smart meter features innovative automatic selection technology. Its USB interface provides the convenience of external DC power supply and connection to a PC for data acquisition. The auto ON/OFF backlit display gives the user continuous visibility while extending battery life. This instrument is competitively priced, technically advanced, highly efficient, slim and tactile, with ergonomically designed comfort grip. Also includes alligator clips, shorting bar, magnetic hanging kit, 4 wires SMD test clip, DC power cable, USB cable, software CD, battery (installed) and manual.
Features and Benefits:
• 20000/2000 Count dual digital display
• 46 segments bar graph display
• Auto selection of LCR testing
• Auto-ranging
• 0.2% basic accuracy capacitance and inductance
• Measurement parameters L.C.R.D.Q., Ɵ, EsR
• Test frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz selectable
• Parallel/serial test mode
• Sorting mode for QC
• 46 segments bar graph display
• Auto selection of LCR testing
• Auto-ranging
• 0.2% basic accuracy capacitance and inductance
• Measurement parameters L.C.R.D.Q., Ɵ, EsR
• Test frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz selectable
• Parallel/serial test mode
• Sorting mode for QC
Dimensions (W x L x D): 95 mm x 207 mm x 52 mm
Supplied with
Alligator clips, shorting bar, magnetic hanging kit, 4 wires SMD test clip, DC power cable, USB cable, software CD, battery (installed), manual
Specifications
Attribute | Value |
|---|---|
| Maximum Capacitance Measurement | 20mF |
| Maximum Resistance Measurement | 200 MΩ |
| Maximum Inductance Measurement | 20000H |
| Calibrated | RSCAL |
| Battery Life | 50 h |
| Battery Type | AA |
| Bench/Handheld | Handheld |
| Display Type | Auto Backlit Bar Graph Display |
| Power Source | Battery |
| Dimensions | 95 x 51.2 x 200mm |
| Weight | 605g |
| Height | 200mm |
| Length | 95mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Width | 51.2mm |
