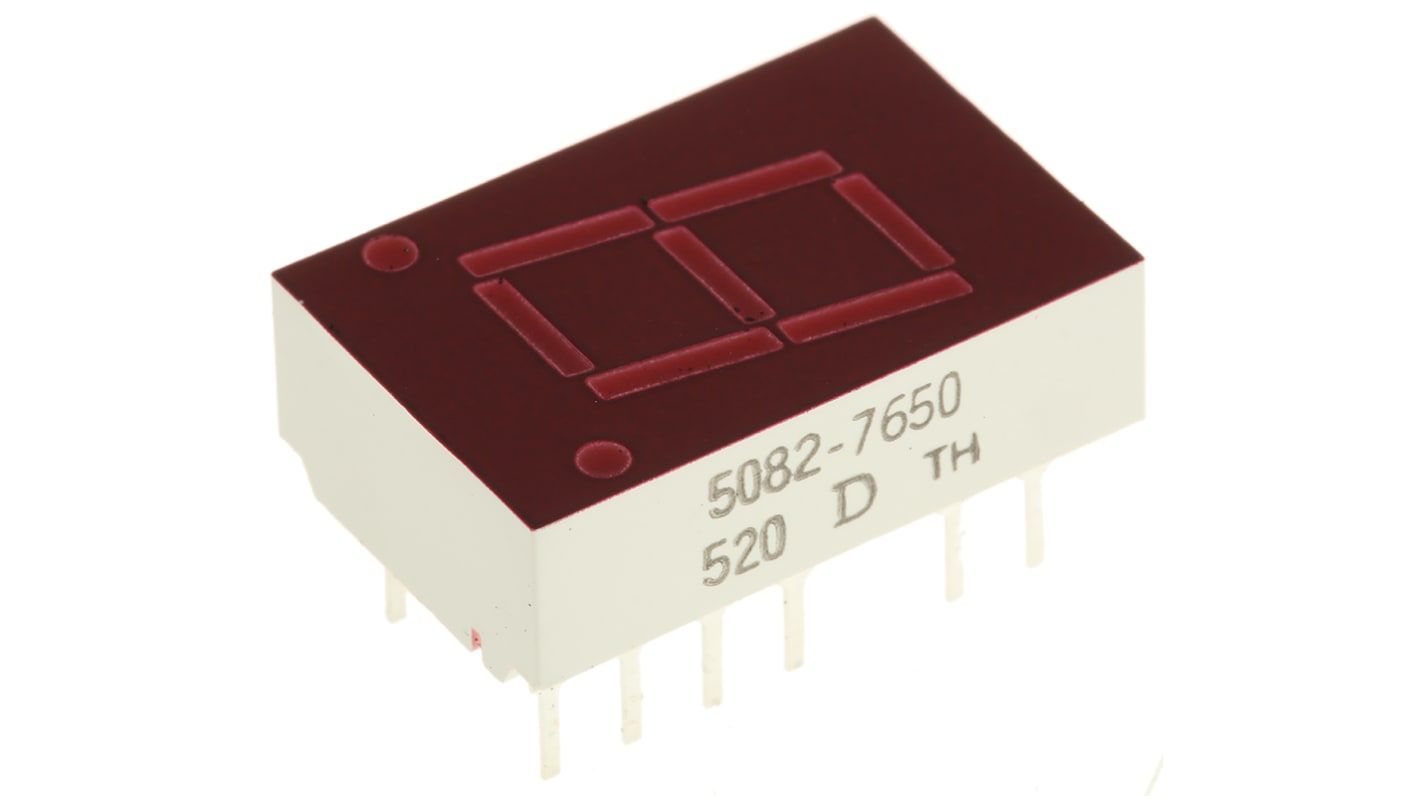

5082-7650 Broadcom 7-Segment LED Display, CA Red 1.1 mcd LH DP 10.9mm
- RS Stock No.:
- 113-4441
- Mfr. Part No.:
- 5082-7650
- Manufacturer:
- Broadcom
Stock check temporarily unavailable - call for stock availability
Added
Price Each
€5.02
(exc. VAT)
€6.17
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €5.02 |
| 10 - 24 | €4.77 |
| 25 - 49 | €4.47 |
| 50 - 99 | €4.18 |
| 100 + | €3.77 |
- RS Stock No.:
- 113-4441
- Mfr. Part No.:
- 5082-7650
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
Single-digit 7-segment Red LED Displays
A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 626 nm |
| Character Width | 7mm |
| Character Height | 10.9mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 12.7mm |
| External Height | 19.1mm |
| External Depth | 6.4mm |
| External Dimensions | 19.1 x 12.7 x 6.4mm |
| Luminous Intensity | 1.1 mcd |
| Colour of Face | Red |
| Forward Voltage | 2.1 V |
| Power Dissipation | 105mW |
| Operating Temperature Range | -40 → +100°C |
| Decimal Orientation | Left Side |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
