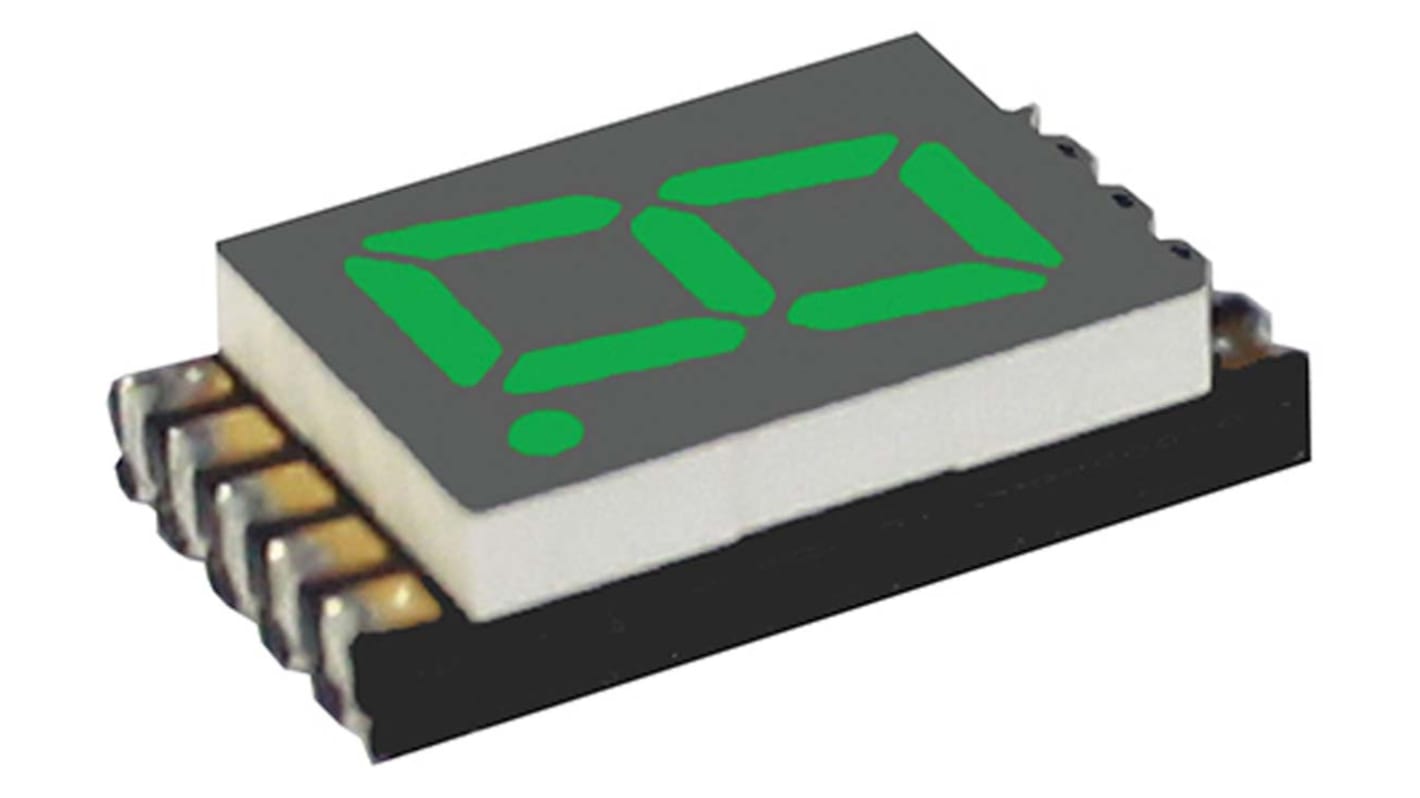

DSM7UA30105 VCC 7-Segment LED Display, CA Green 150 mcd RH DP 7.6mm

  • RS Stock No. 137-1144
  • Mfr. Part No. DSM7UA30105
  • Manufacturer VCC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

VCC DSM7UA Series SMT 7-Segment LED Displays

A range of low profile surface mounting single-digit 7-segment LED displays from VCC. The displays utilise patented technology to deliver a thickness of only 2.1 mm (0.083’’) and are suitable for both top-mount and reverse-mount applications.

• Ultra-low profile – only 2.1mm thick
• Available in 4 character heights: 0.2’’, 0.3’’, 0.56’’ and 0.7’’
• Choice of super bright red or pure green colours
• Grey face with white segments
• High contrast with excellent visibility

VCC 7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 1
LED Colours Green
Number of Segments 7
Dominant Wavelength 530 nm
Character Width 4.2mm
Character Height 7.6mm
Common Connection Anode
Mounting Type Surface Mount
External Height 13mm
External Dimensions 13 x 7.6 x 3.1mm
External Width 7.6mm
External Depth 3.1mm
Luminous Intensity 150 mcd
Colour of Face Grey
Power Dissipation 70mW
Series DSM
Maximum Operating Temperature +105°C
Decimal Orientation Right Side
Forward Voltage 2.6 V
Minimum Operating Temperature -40°C
For Use With DSM Series PCB, DSM Series Socket
Forward Current 25mA
Operating Temperature Range -40 → +105°C
Temporarily out of stock - back order for despatch 27-03-2020, delivery within 2 working days
Unit of sale: Each (In a Bag of 100)
2.846
(exc. VAT)
3.501
(inc. VAT)
units
Per unit
Per Bag*
100 - 100
€2.846
€284.60
200 - 400
€2.524
€252.40
500 +
€2.289
€228.90
*price indicative
