DSM7UA30105 VCC 7-Segment LED Display, CA Green 150 mcd RH DP 7.6mm
- RS Stock No.:
- 137-1298
- Mfr. Part No.:
- DSM7UA30105
- Manufacturer:
- VCC
14 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 2)
€5.41
(exc. VAT)
€6.65
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | €5.41 | €10.82 |
| 10 - 18 | €4.455 | €8.91 |
| 20 - 48 | €3.905 | €7.81 |
| 50 - 98 | €3.53 | €7.06 |
| 100 + | €3.34 | €6.68 |
| *price indicative | ||
- RS Stock No.:
- 137-1298
- Mfr. Part No.:
- DSM7UA30105
- Manufacturer:
- VCC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

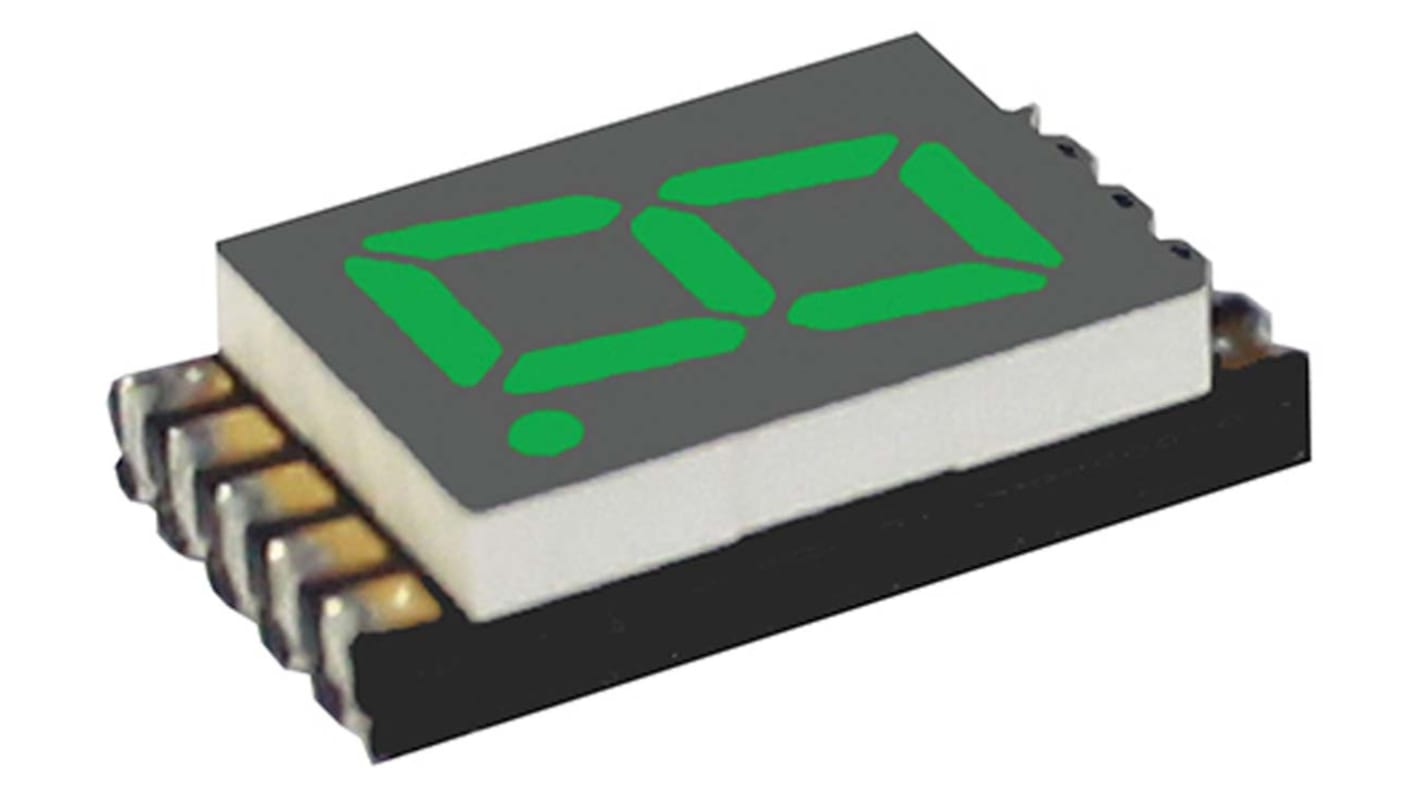

VCC DSM7UA Series SMT 7-Segment LED Displays
A range of low profile surface mounting single-digit 7-segment LED displays from VCC. The displays utilise patented technology to deliver a thickness of only 2.1 mm (0.083’’) and are suitable for both top-mount and reverse-mount applications.
• Ultra-low profile – only 2.1mm thick
• Available in 4 character heights: 0.2’’, 0.3’’, 0.56’’ and 0.7’’
• Choice of super bright red or pure green colours
• Grey face with white segments
• High contrast with excellent visibility
• Available in 4 character heights: 0.2’’, 0.3’’, 0.56’’ and 0.7’’
• Choice of super bright red or pure green colours
• Grey face with white segments
• High contrast with excellent visibility
VCC 7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 530 nm |
| Character Width | 4.2mm |
| Character Height | 7.6mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Height | 13mm |
| External Depth | 3.1mm |
| External Dimensions | 13 x 7.6 x 3.1mm |
| External Width | 7.6mm |
| Luminous Intensity | 150 mcd |
| Colour of Face | Grey |
| Forward Voltage | 2.6 V |
| Power Dissipation | 70mW |
| Series | DSM |
| Operating Temperature Range | -40 → +105°C |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| For Use With | DSM Series PCB, DSM Series Socket |
| Forward Current | 25mA |
