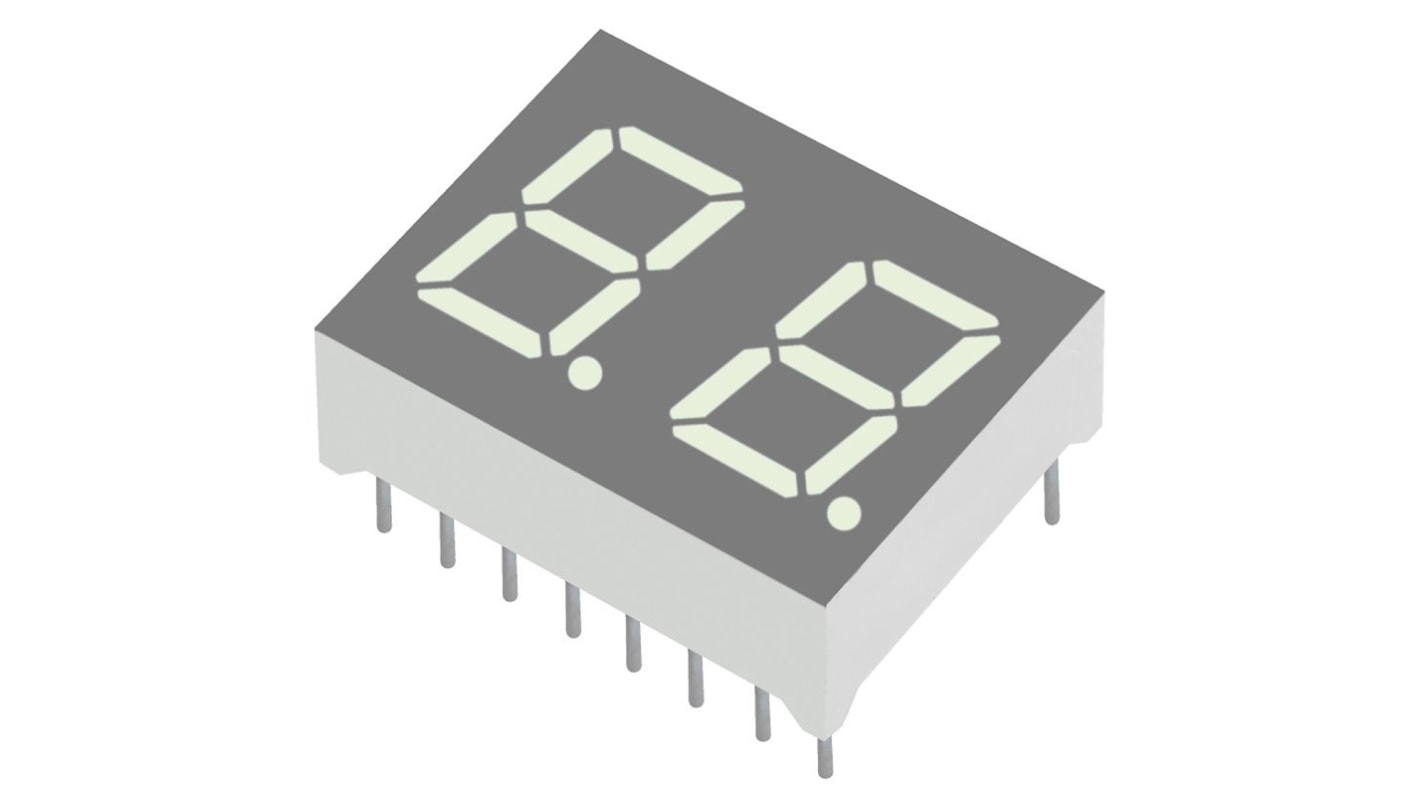

DA04-11SURKWA Kingbright 2 Digit 7-Segment LED Display, CA Red 54 mcd RH DP 10mm

  • RS Stock No. 165-4360
  • Mfr. Part No. DA04-11SURKWA
  • Manufacturer Kingbright
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Dual Digit, 10.0 to 20.3mm

A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant

7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 2
LED Colours Red
Number of Segments 7
Dominant Wavelength 630 nm
Character Width 6mm
Character Height 10mm
Common Connection Anode
Mounting Type Through Hole
External Depth 16mm
External Dimensions 20.2 x 16 x 7mm
External Width 20.2mm
External Height 7mm
Luminous Intensity 54 mcd
Colour of Face Grey
Power Dissipation 75mW
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Forward Voltage 2 V
Decimal Orientation Right Side
Minimum Operating Temperature -40°C
Forward Current 30mA
Series DA04
Temporarily out of stock - back order for despatch 15-10-2020, delivery within 2 working days
Unit of sale: Each (In a Tube of 25)
1.387
(exc. VAT)
1.706
(inc. VAT)
units
Per unit
Per Tube*
25 +
€1.387
€34.675
*price indicative
