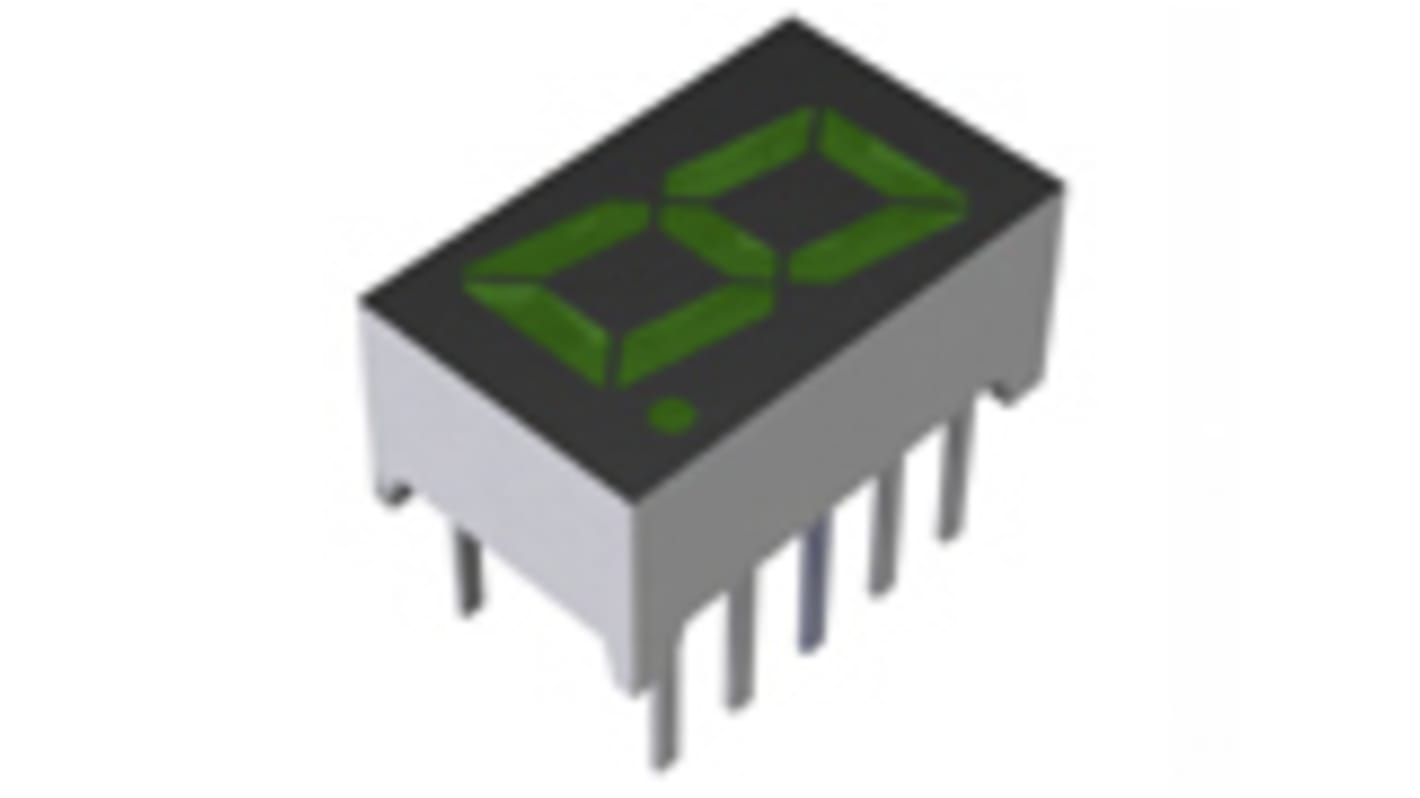

LAP-301ML ROHM LED LED Display, CC Green 100 mcd RH DP 8mm

  • RS Stock No. 168-2312
  • Mfr. Part No. LAP-301ML
  • Manufacturer ROHM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Luminous intensity is enhanced about 2∼10 times compared with conventional numerical LED displays by use of 4-element AlGaInP dies.

Character Height is 8mm
DIP Type
Anode Common Type
High Brightness and Low Electric Power Consumption

Specifications
Attribute Value
Display Type LED
Number of Characters 1
LED Colours Green
Number of Segments 7
Dominant Wavelength 572 nm
Character Width 4mm
Character Height 8mm
Common Connection Cathode
Mounting Type Through Hole
External Dimensions 7 x 11 x 5mm
External Width 7mm
External Depth 11mm
External Height 5mm
Luminous Intensity 100 mcd
Colour of Face Black
Power Dissipation 448mW
Operating Temperature Range -25 → +75°C
Series LAP-301L
Forward Current 20mA
Decimal Orientation Right Side
Minimum Operating Temperature -25°C
Forward Voltage 2.6 V
For Use With General Electronic Equipments
Maximum Operating Temperature +75°C
10 In stock for delivery within 5 working days
Unit of sale: Each (In a Pack of 5)
1.03
(exc. VAT)
1.27
(inc. VAT)
units
Per unit
Per Pack*
5 - 20
€1.03
€5.15
25 - 45
€1.002
€5.01
50 - 120
€0.976
€4.88
125 - 245
€0.952
€4.76
250 +
€0.928
€4.64
*price indicative
