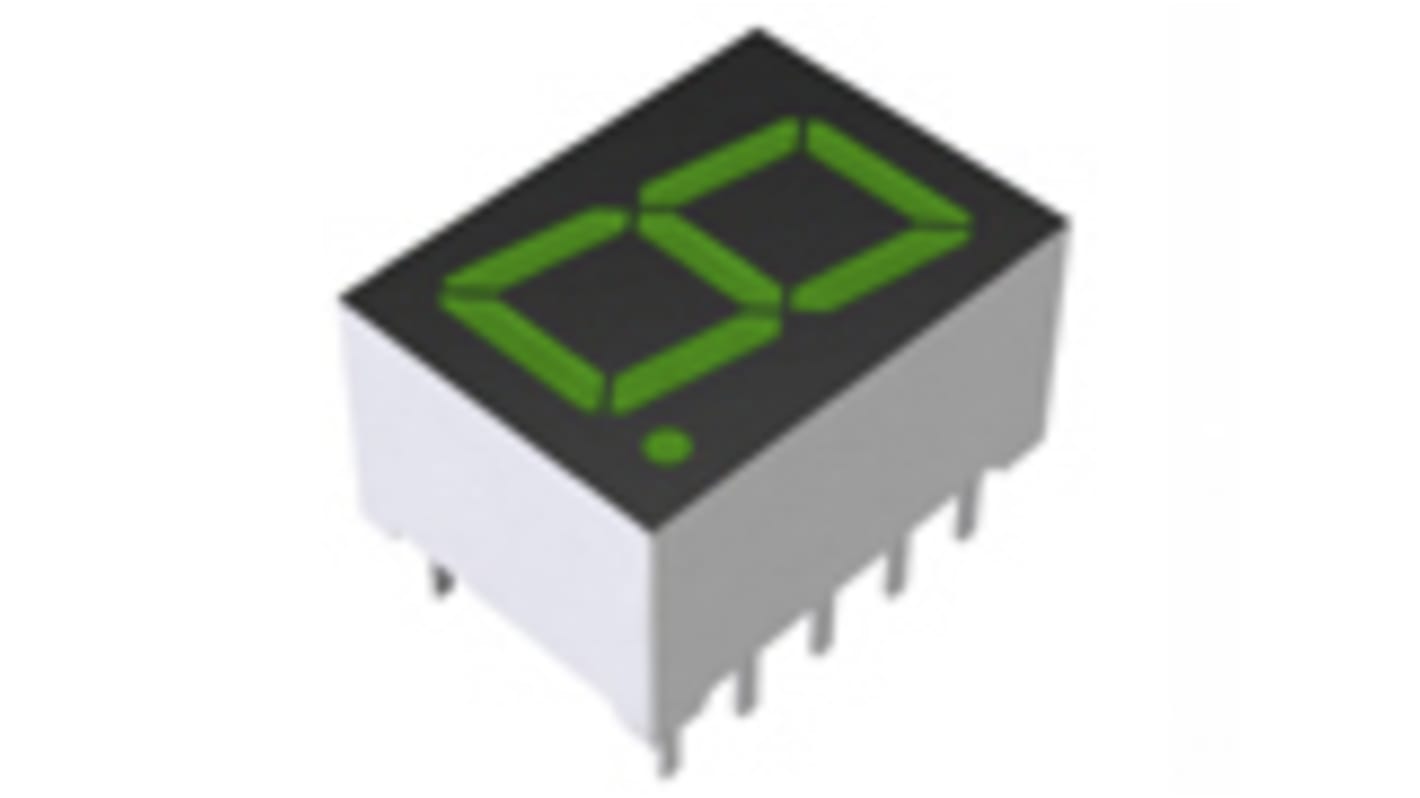

LAP-401MD ROHM LED LED Display, CA Green 100 mcd RH DP 10.2mm

  • RS Stock No. 168-2365
  • Mfr. Part No. LAP-401MD
  • Manufacturer ROHM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Luminous intensity is enhanced about 2∼10 times compared with conventional numerical LED displays by use of 4-element AlGaInP dies.

Character Height is 8mm
DIP Type
Anode Common Type
High Brightness and Low Electric Power Consumption

Specifications
Attribute Value
Display Type LED
Number of Characters 1
LED Colours Green
Number of Segments 7
Dominant Wavelength 572 nm
Character Width 5.6mm
Character Height 10.2mm
Common Connection Anode
Mounting Type Through Hole
External Dimensions 9.6 x 13 x 7mm
External Height 7mm
External Depth 13mm
External Width 9.6mm
Luminous Intensity 100 mcd
Colour of Face Black
Power Dissipation 448mW
Maximum Operating Temperature +75°C
Operating Temperature Range -25 → +75°C
Decimal Orientation Right Side
Forward Current 20mA
Forward Voltage 2.6 V
Minimum Operating Temperature -25°C
Series LAP-401D
For Use With General Electronic Equipments
5 In stock for delivery within 5 working days
Unit of sale: Each (In a Pack of 5)
1.484
(exc. VAT)
1.825
(inc. VAT)
units
Per unit
Per Pack*
5 - 20
€1.484
€7.42
25 - 45
€1.44
€7.20
50 - 120
€1.396
€6.98
125 - 245
€1.354
€6.77
250 +
€1.314
€6.57
*price indicative
