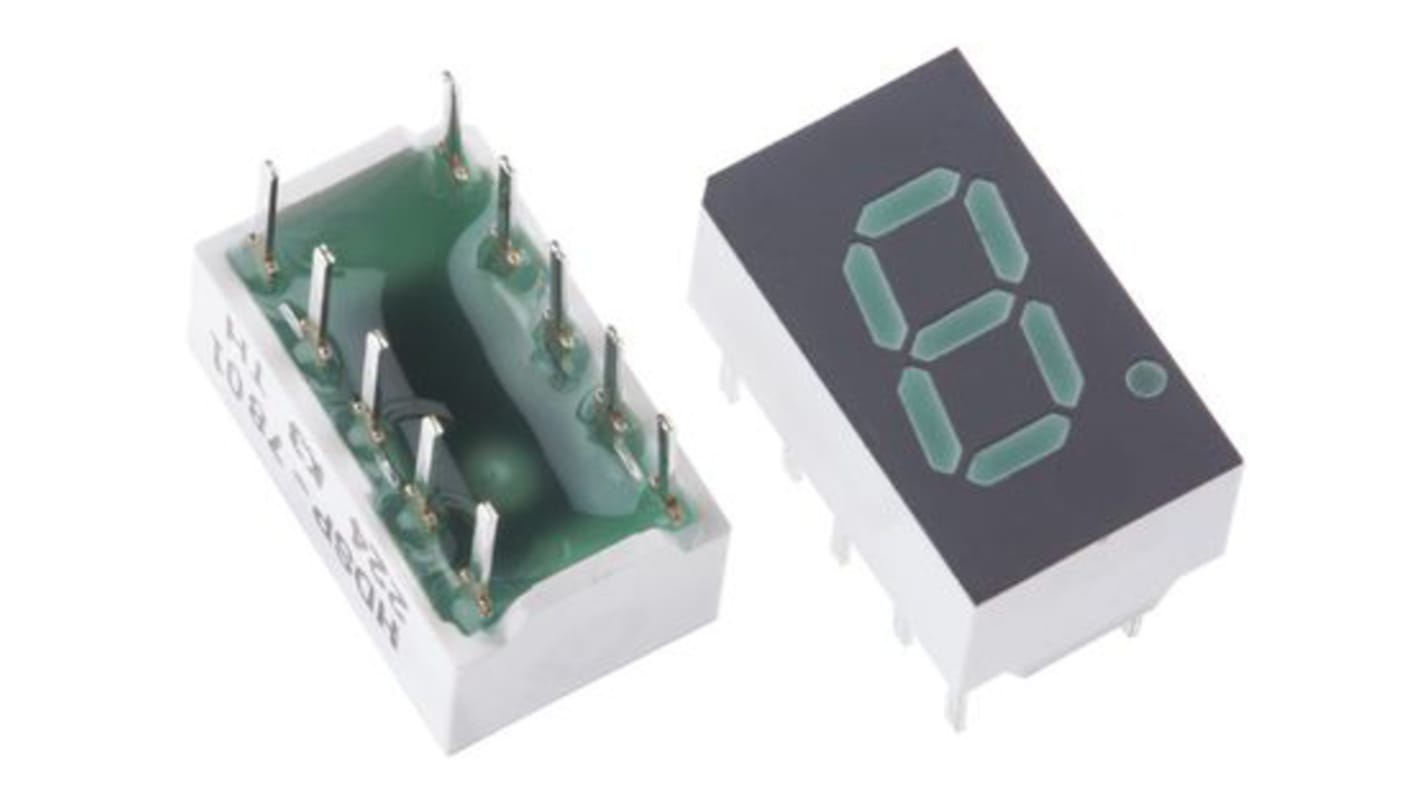

HDSP-A901 Broadcom 7-Segment LED Display, CA Green 475 μcd RH DP 7.6mm
- RS Stock No.:
- 178-2985
- Mfr. Part No.:
- HDSP-A901
- Manufacturer:
- Broadcom
Temporarily out of stock - back order for despatch 23-08-2024, delivery within 2 working days
Added
Price Each (On a Reel of 200)
€1.605
(exc. VAT)
€1.974
(inc. VAT)
| Units | Per unit | Per Reel* |
| 200 + | €1.605 | €321.00 |
| *price indicative | ||
- RS Stock No.:
- 178-2985
- Mfr. Part No.:
- HDSP-A901
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
Single-digit 7-segment Green LED Displays
A range of single-digit 7-segment Green LED displays from Broadcom (Avago Technologies) in a variety of character heights.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 571 nm |
| Character Width | 4.2mm |
| Character Height | 7.6mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Height | 12.7mm |
| External Dimensions | 12.7 x 7.6 x 6.09mm |
| External Depth | 6.1mm |
| External Width | 7.6mm |
| Luminous Intensity | 475 μcd |
| Colour of Face | Grey |
| Power Dissipation | 64mW |
| Forward Voltage | 1.9 V |
| Forward Current | 4mA |
| Operating Temperature Range | -40 → +100°C |
| Minimum Operating Temperature | -40°C |
| Decimal Orientation | Right Side |
| Series | HDSP |
| For Use With | Traffic Management |
| Maximum Operating Temperature | +100°C |
