Product Details

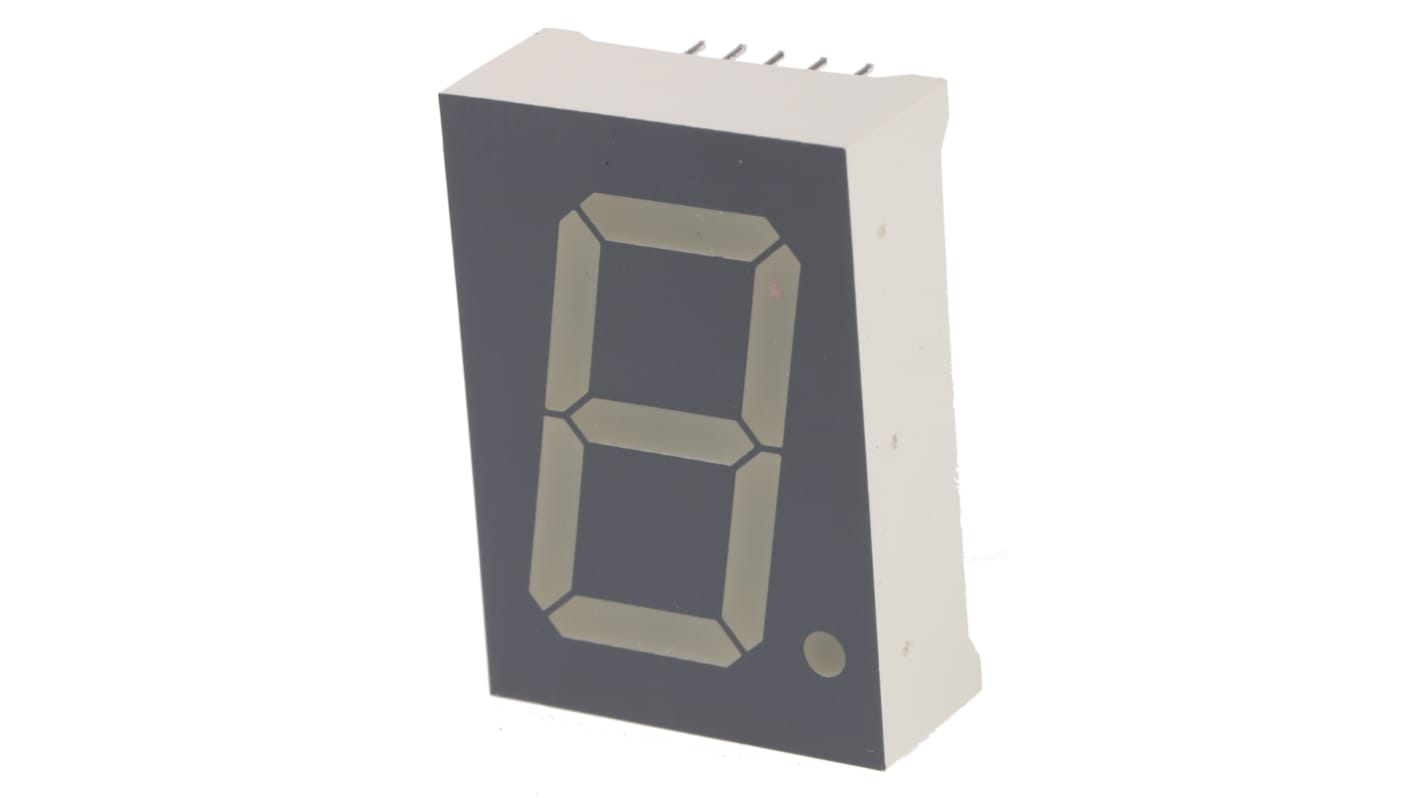

Kingbright Single Digit, 20.3 to 26.0mm
A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Note
A5
7-Segment LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 640 nm |
Character Width | 13mm |
Character Height | 25.4mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Width | 22.5mm |
External Dimensions | 32.9 x 22.5 x 8.5mm |
External Height | 32.9mm |
External Depth | 8.5mm |
Luminous Intensity | 120 mcd |
Colour of Face | Grey |
Power Dissipation | 75 mW, 150 mW |
Forward Voltage | 1.85 V, 3.7 V |
Decimal Orientation | Right Side |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
Forward Current | 30mA |
Minimum Operating Temperature | -40°C |
