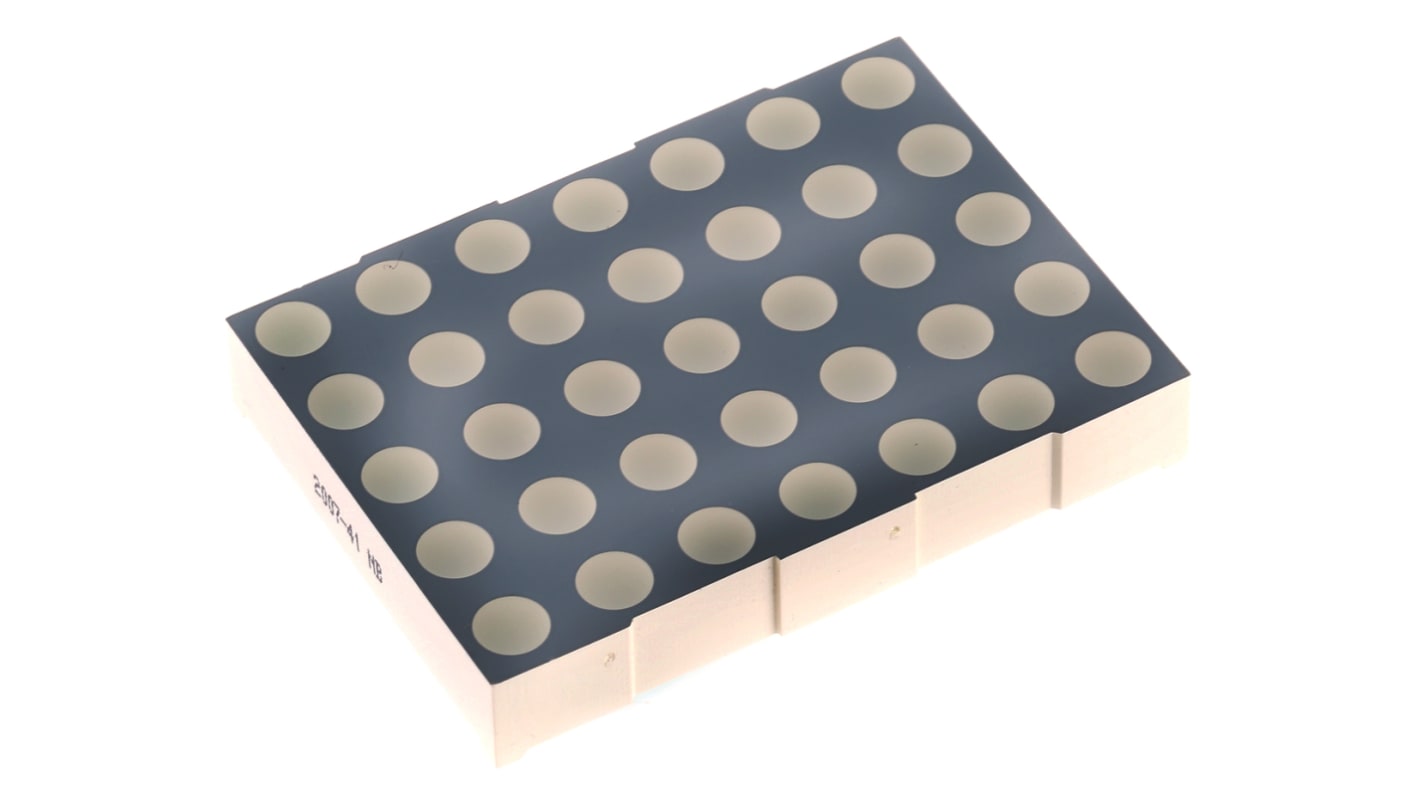

TC20-11EWA Kingbright Dot Matrix LED Display, CC 7 x 5 Dot Matrix Red 10 mcd 52mm
- RS Stock No.:
- 451-6672
- Mfr. Part No.:
- TC20-11EWA
- Manufacturer:
- Kingbright
20 In stock for delivery within 2 working days
Added
Price Each
€7.66
(exc. VAT)
€9.42
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €7.66 |
| 5 - 19 | €7.28 |
| 20 - 49 | €6.38 |
| 50 - 99 | €4.94 |
| 100 + | €4.77 |
- RS Stock No.:
- 451-6672
- Mfr. Part No.:
- TC20-11EWA
- Manufacturer:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Single Digit Alphanumeric Display, Kingbright 50mm (2.0in)
Stackable horizontally
Dot size 5mm
H: 53.0mm W: 37.65mm D: 8.45mm
Low current operation
High-contrast and light-output
Temperature range -40 to +85°C
Dot size 5mm
H: 53.0mm W: 37.65mm D: 8.45mm
Low current operation
High-contrast and light-output
Temperature range -40 to +85°C
Alphanumeric LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | Dot Matrix |
| LED Colours | Red |
| Dominant Wavelength | 625 nm |
| Character Width | 36mm |
| Character Height | 52mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Dimensions | 53 x 37.65 x 8.45mm |
| External Height | 53mm |
| External Depth | 8.5mm |
| External Width | 37.7mm |
| Luminous Intensity | 10 mcd |
| Colour of Face | Grey |
| Forward Voltage | 2 V |
| Power Dissipation | 75mW |
| Series | TC20 |
| Forward Current | 30mA |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Dots Wide | 5 |
| Dot Matrix Format | 5 x 7 |
| Dots High | 7 |
| Dot Matrix Dimensions | 7 x 5 |
| Maximum Operating Temperature | +85°C |
