- RS Stock No.:
- 791-7283
- Mfr. Part No.:
- HDSP-C3E3
- Manufacturer:
- Broadcom
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 10)
€1.047
(exc. VAT)
€1.288
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 10 | €1.047 | €10.47 |
20 - 40 | €0.995 | €9.95 |
50 - 90 | €0.931 | €9.31 |
100 + | €0.886 | €8.86 |
*price indicative |
- RS Stock No.:
- 791-7283
- Mfr. Part No.:
- HDSP-C3E3
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details

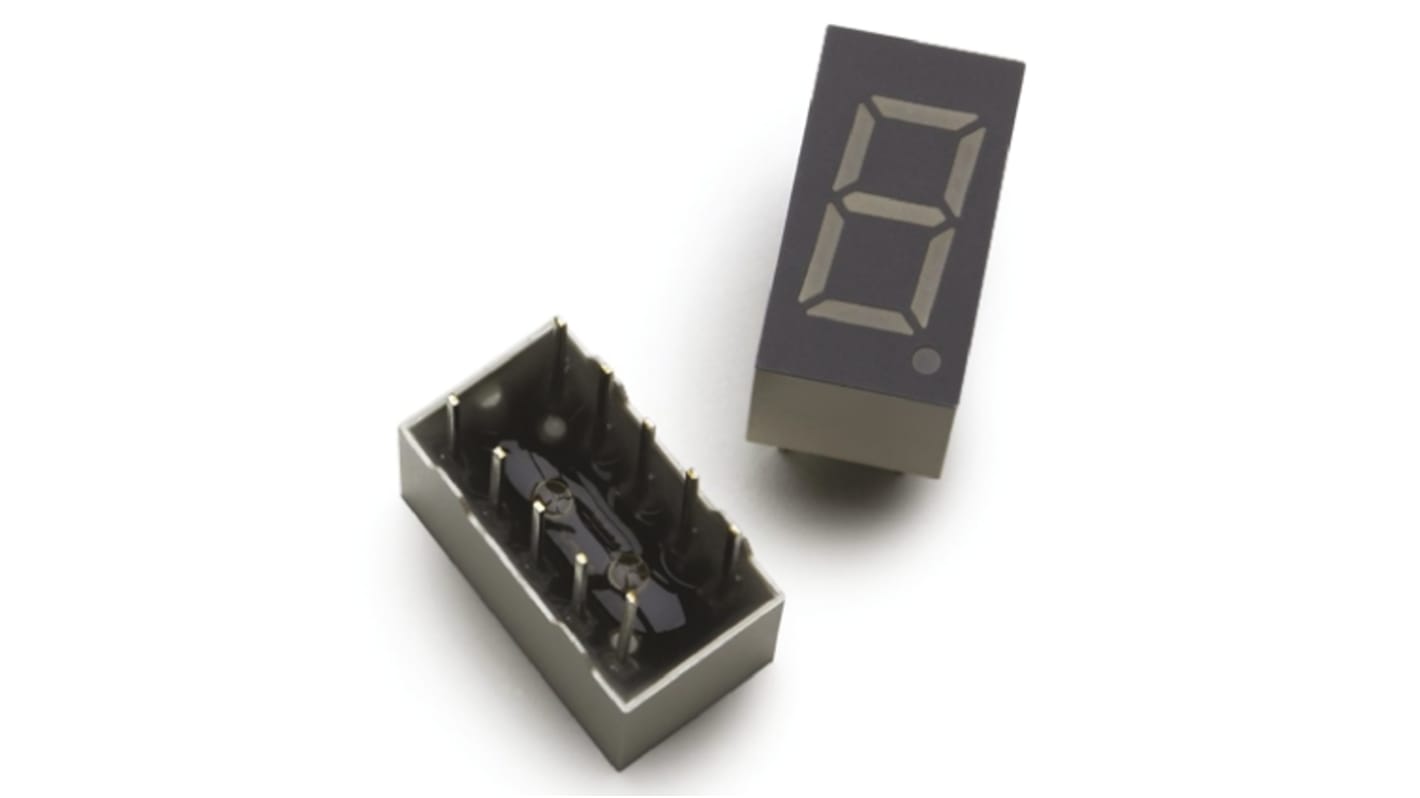

Single-digit 7-segment Red LED Displays
A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 643 nm |
Character Width | 4.8mm |
Character Height | 9.1mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Depth | 8.5mm |
External Height | 14mm |
External Dimensions | 14 x 7.5 x 8.5mm |
External Width | 7.5mm |
Luminous Intensity | 1.1 mcd |
Colour of Face | Grey |
Forward Voltage | 1.85 V |
Maximum Operating Temperature | +85°C |
Decimal Orientation | Right Side |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Forward Current | 25mA |
