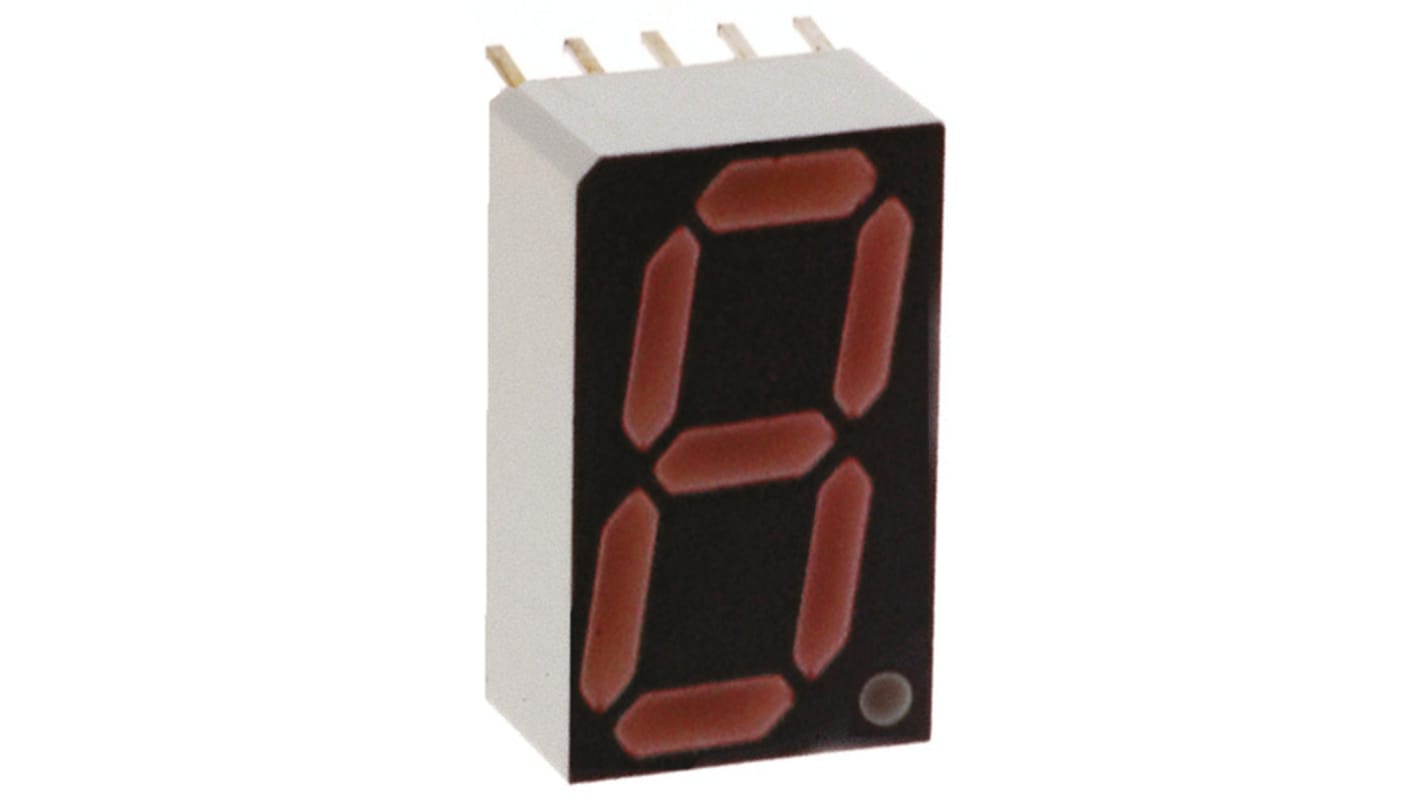

HDSP-H151 Broadcom 7-Segment LED Display, CA Red 16 mcd RH DP 14.2mm
- RS Stock No.:
- 830-5151
- Mfr. Part No.:
- HDSP-H151
- Manufacturer:
- Broadcom
70 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 5)
€4.06
(exc. VAT)
€4.99
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | €4.06 | €20.30 |
| 25 - 95 | €3.046 | €15.23 |
| 100 - 245 | €2.528 | €12.64 |
| 250 - 495 | €2.274 | €11.37 |
| 500 + | €2.068 | €10.34 |
| *price indicative | ||
- RS Stock No.:
- 830-5151
- Mfr. Part No.:
- HDSP-H151
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
Single-digit 7-segment Red LED Displays
A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 637 nm |
| Character Width | 7.8mm |
| Character Height | 14.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Dimensions | 12.573 x 17.02 x 8mm |
| External Width | 12.6mm |
| External Height | 8mm |
| External Depth | 17mm |
| Luminous Intensity | 16 mcd |
| Colour of Face | Grey |
| Forward Voltage | 1.8 V |
| Operating Temperature Range | -20 → +100°C |
| Maximum Operating Temperature | +100°C |
| Forward Current | 40mA |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -20°C |
