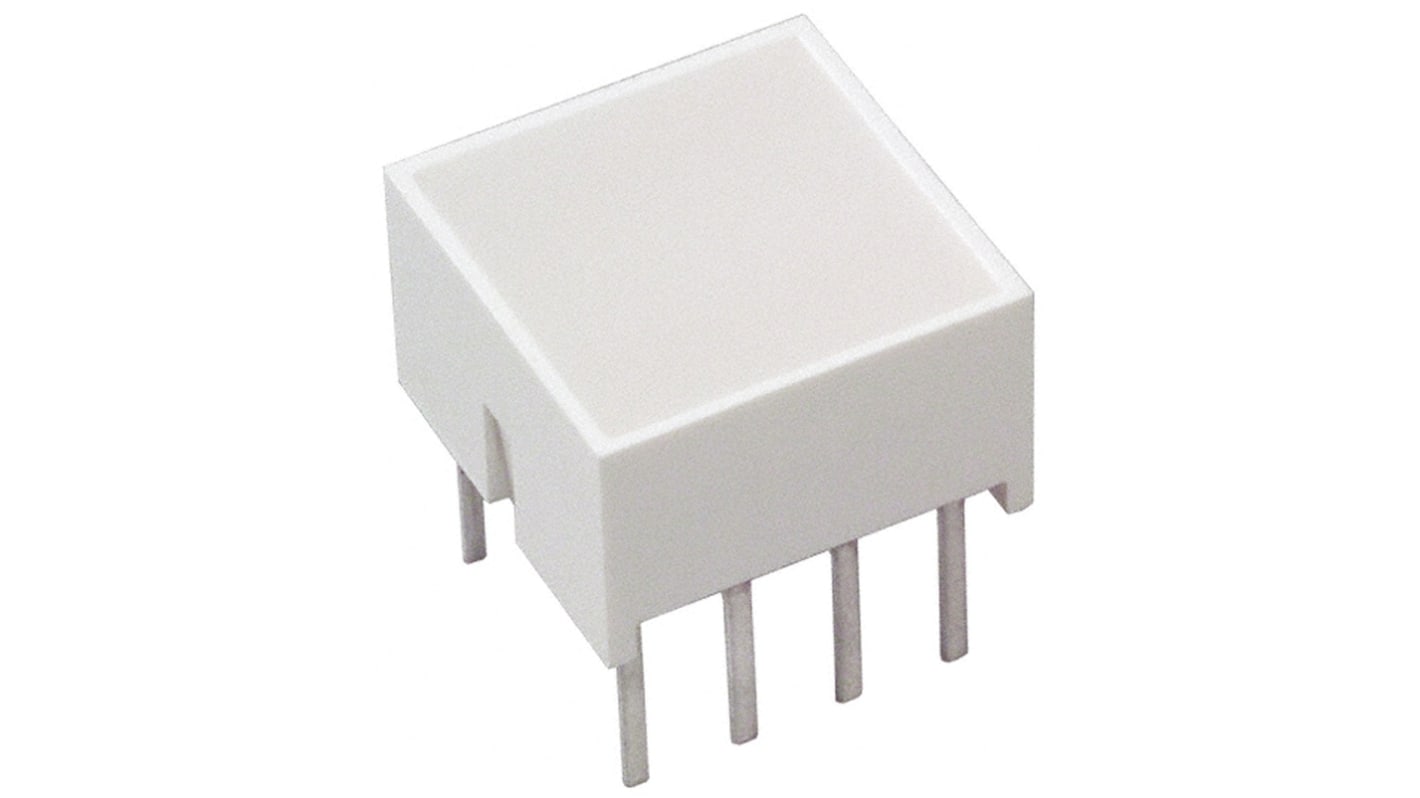

HLMP-2755 Broadcom Light Bar LED Display, Yellow 38 mcd

RS Stock No.:: 841-5100
Mfr. Part No.:: HLMP-2755
Manufacturer:: Broadcom

HLMP-2755 Broadcom Light Bar LED Display, Yellow 38 mcd

3188 In stock for delivery within 2 working days

Added

Price Each (In a Pack of 4)

€1.11

(exc. VAT)

€1.37

(inc. VAT)

Units	Per unit	Per Pack*
4 +	€1.11	€4.44
*price indicative

RS Stock No.:: 841-5100
Mfr. Part No.:: HLMP-2755
Manufacturer:: Broadcom

Technical data sheets

HLCP-x100 and HLMP-2xxx LED Light Bars Data Sheet

Legislation and Compliance

Product Details

Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays

The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.

Features of the HLCP-X100 and HLMP-2XXX LED light bars:
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable

Caution

Observe Anti-static precautions when handling devices.

Broadcom Light Bar Arrays

Specifications

Attribute	Value
Display Type	Light Bar
LED Colours	Yellow
Number of Segments	1
Dominant Wavelength	585 nm
Mounting Type	Through Hole
External Dimensions	10.2 x 8.9 x 6.2mm
External Width	8.9mm
External Depth	10.2mm
External Height	6.2mm
Luminous Intensity	38 mcd
Colour of Face	White
Forward Voltage	2.1 V
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +85°C
Maximum Operating Temperature	+85°C
Forward Current	20mA
