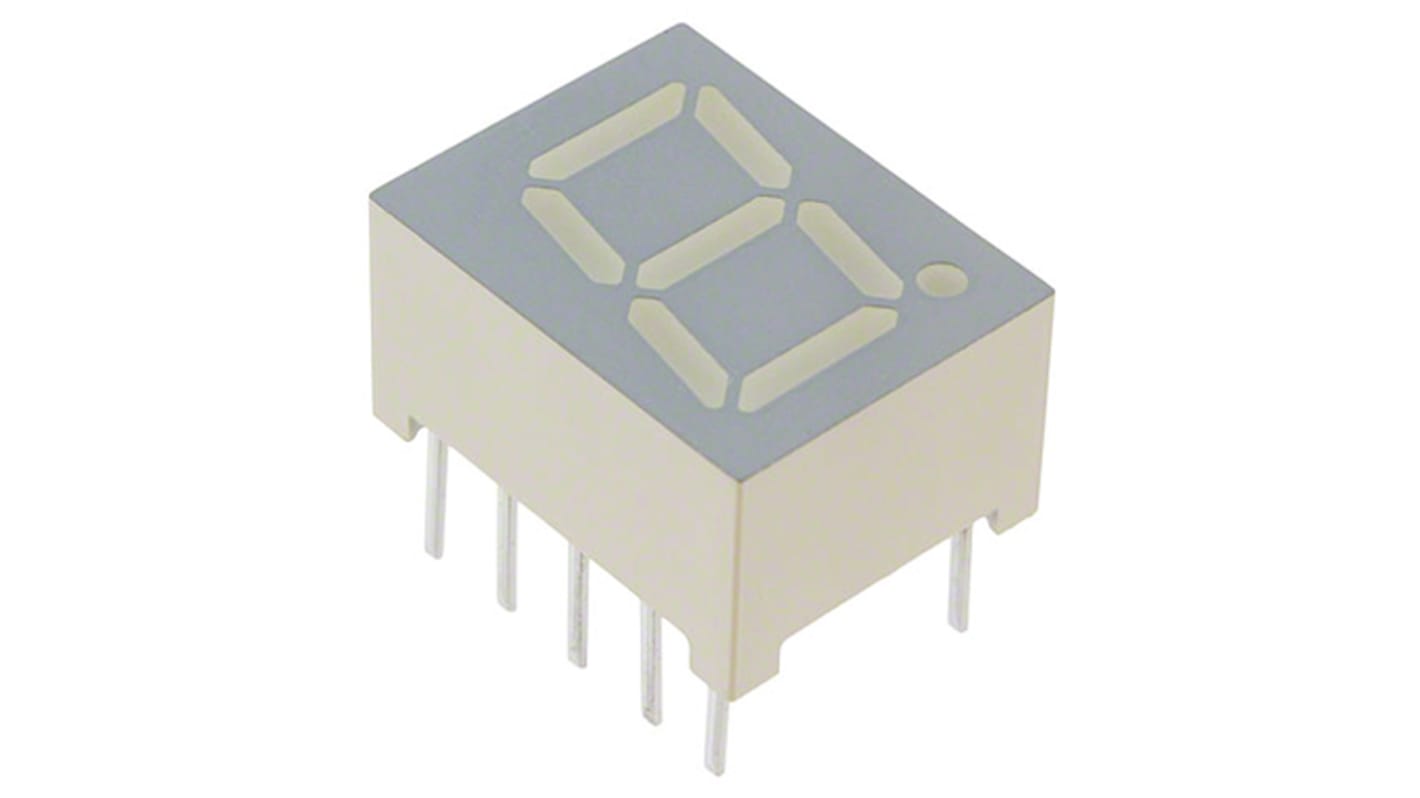

SC39-11SYKWA Kingbright 7-Segment LED Display, CC Yellow 86 mcd RH DP 10mm
- RS Stock No.:
- 863-4884
- Mfr. Part No.:
- SC39-11SYKWA
- Manufacturer:
- Kingbright
507 In stock for delivery within 2 working days
Added
Price Each (In a Tube of 39)
€1.347
(exc. VAT)
€1.657
(inc. VAT)
| Units | Per unit | Per Tube* |
| 39 + | €1.347 | €52.533 |
| *price indicative | ||
- RS Stock No.:
- 863-4884
- Mfr. Part No.:
- SC39-11SYKWA
- Manufacturer:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Kingbright Single Digit, 9.1 to 10.9mm
A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Yellow |
| Number of Segments | 7 |
| Dominant Wavelength | 590 nm |
| Character Width | 6.2mm |
| Character Height | 10mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Width | 10mm |
| External Depth | 7mm |
| External Dimensions | 10 x 13 x 7mm |
| External Height | 13mm |
| Luminous Intensity | 86 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 2 V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 30mA |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
