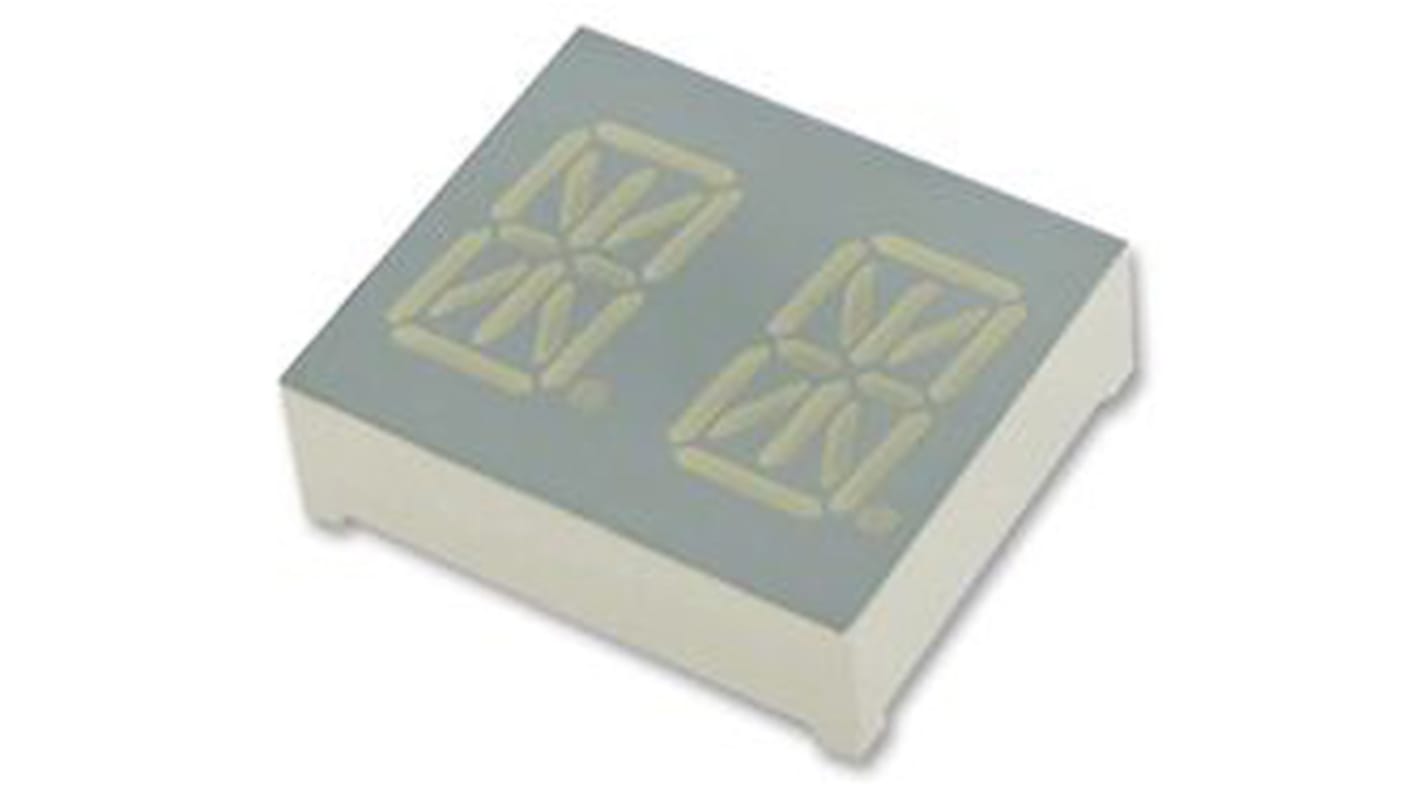

PDC54-11SYKWA Kingbright 2 Digit 14-Segment LED Display, CC Yellow 87 mcd RH DP 13.8mm
- RS Stock No.:
- 871-7416
- Mfr. Part No.:
- PDC54-11SYKWA
- Manufacturer:
- Kingbright
8 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 2)
€2.62
(exc. VAT)
€3.22
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 + | €2.62 | €5.24 |
| *price indicative | ||
- RS Stock No.:
- 871-7416
- Mfr. Part No.:
- PDC54-11SYKWA
- Manufacturer:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Dual Digit Alphanumeric Display, Kingbright 13.8mm (0.543in)
This family of displays, from Kingbright, are dual digit alphanumeric displays. These through-hole mounted displays are 13.8mm high and have a 0.543inch character height. Available in a variety of single colour options, they offer a high contrast and high light output. As standard, they have a grey face with white segments.
Features of the alphanumeric displays:
Through-hole mounted
Dual-digit
13.8mm display
0.54inch character height
Low current operation
Mechanically rugged
Colours: red, green, yellow
Through-hole mounted
Dual-digit
13.8mm display
0.54inch character height
Low current operation
Mechanically rugged
Colours: red, green, yellow
Alphanumeric LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 14-Segment |
| Number of Characters | 2 |
| LED Colours | Yellow |
| Number of Segments | 14 |
| Dominant Wavelength | 590 nm |
| Character Width | 8mm |
| Character Height | 13.8mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 21.2mm |
| External Width | 25.2mm |
| External Height | 7.8mm |
| External Dimensions | 25.2 x 21.2 x 7.8mm |
| Luminous Intensity | 87 mcd |
| Colour of Face | Grey |
| Forward Voltage | 2 V |
| Power Dissipation | 75mW |
| Minimum Operating Temperature | -40°C |
| Series | PDC54 |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Forward Current | 30mA |
| Maximum Operating Temperature | +85°C |
