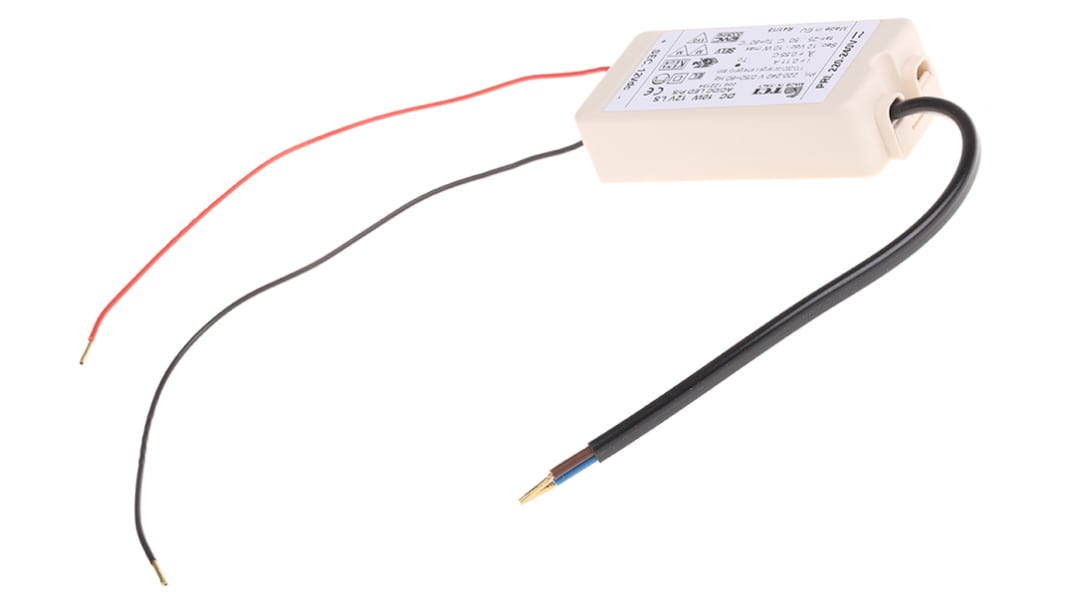

RS PRO Constant Voltage LED Driver 10W 12V 820mA

  • RS Stock No. 669-7206
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Active Cooled LED Dichroic Replacement 8W

These MR16 LED lamps install easily into any 2 pin GU5.3 / GX5.3 low voltage 12V socket. They are suitable as direct replacements in most MR16 fixtures that use MR16 or MR11 low voltage halogen lamps. They deliver energy savings of up to 35% with up to 25 times the life span of the lamps that they replace. An integral active thermal management system drives heat away from the high brightness LED’s, allowing for exceptionally high luminous efficacy, lower junction temperatures, reliable longer life and a small form factor.

Specifications
Attribute Value
Input Voltage 220 240 V ac
Output Voltage 12V
Operation Constant Voltage
Output Current 820mA
Maximum Output Power 10W
AC or DC Input Voltage Ac
Current Rating 820mA
Output DC
Voltage Rating 230 V, 230 V ac
Standards Met DIN VDE0710-T14, EN 55015, EN 61000-3-2, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384
3 Within 1 working day(s) (IE stock)
47 Within 2 working day(s) (EU stock)
Unit of sale: Each
17.85
(exc. VAT)
21.96
(inc. VAT)
units
Per unit
1 - 9
€17.85
10 - 19
€16.96
20 - 49
€16.06
50 +
€15.16
