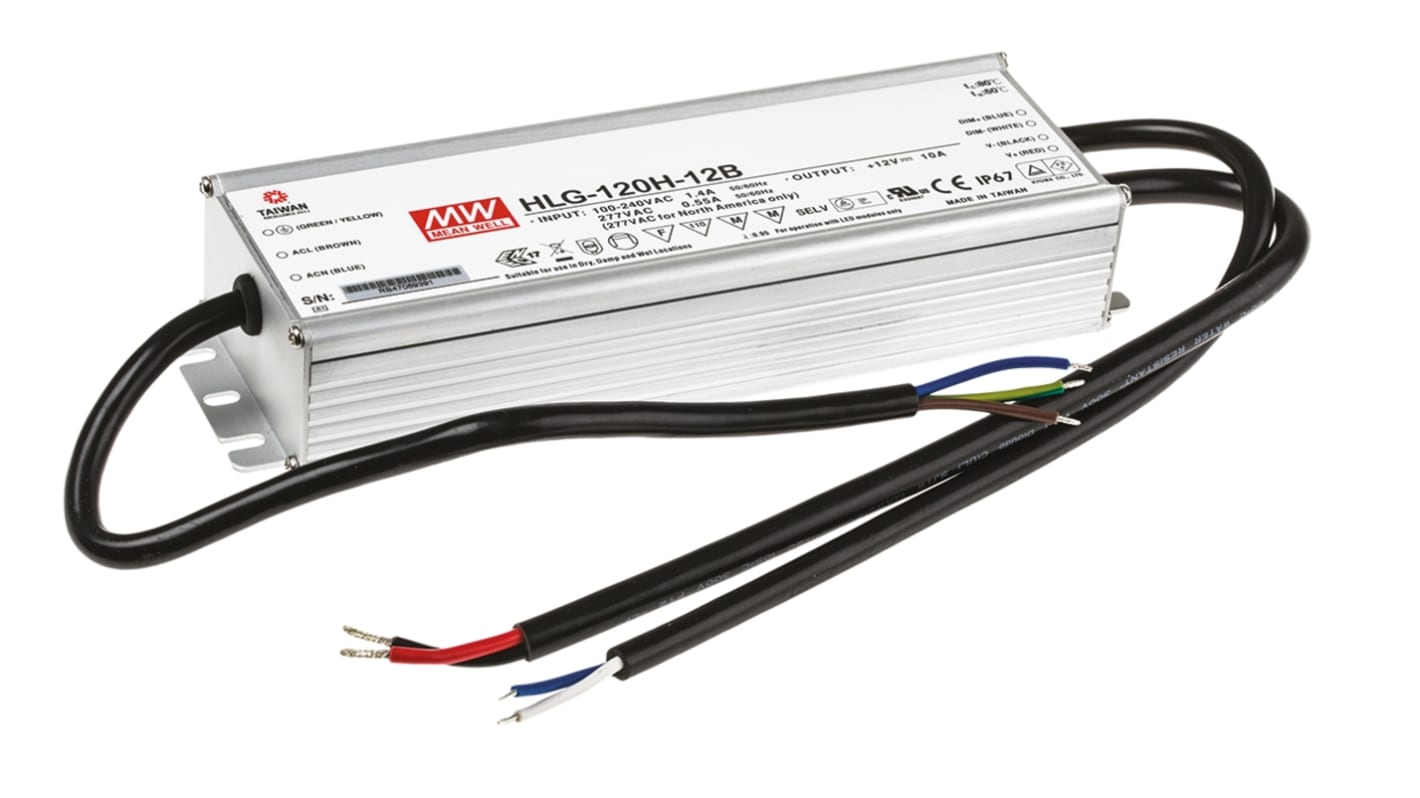

MEAN WELL LED Driver, 12V Output, 120W Output, 10A Output, Constant Current Dimmable
- RS Stock No.:
- 721-1875
- Mfr. Part No.:
- HLG-120H-12B
- Manufacturer:
- MEAN WELL
Temporarily out of stock - back order for despatch 26-04-2024, delivery within 2 working days
Added
Price Each
€57.78
(exc. VAT)
€71.07
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €57.78 |
| 5 - 9 | €51.99 |
| 10 - 24 | €49.69 |
| 25 + | €47.95 |
- RS Stock No.:
- 721-1875
- Mfr. Part No.:
- HLG-120H-12B
- Manufacturer:
- MEAN WELL
Technical data sheets
Legislation and Compliance
Product Details
RS - 120W Waterproof (IP67) PFC Dimmable SMPSU
External, switch mode, encapsulated IP67 rated power supplies
High efficiency, long life and high reliability
Suitable for dry, damp or wet locations indoor or outdoor
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Constant current level adjustable through output cable with 1-10Vdc or 10V PWM signal or resistor
Over current protection level can be set via the output cable
Short circuit, over load, over voltage and over temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
300mm un-terminated, 2-core 18AWG dimming lead
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
High efficiency, long life and high reliability
Suitable for dry, damp or wet locations indoor or outdoor
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Constant current level adjustable through output cable with 1-10Vdc or 10V PWM signal or resistor
Over current protection level can be set via the output cable
Short circuit, over load, over voltage and over temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
300mm un-terminated, 2-core 18AWG dimming lead
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
Note
Power derates above 60°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Standards
UL8750, EN61347-1, EN61347-2-13, UL60950-1, TUV EN60950-1
Approvals
TUV, UL recognised for Canada & US
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V |
| Maximum Output Power | 120W |
| Output Current | 10A |
| Dimmable | Yes |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac |
| Operation | Constant Current |
| LED Driver Type | LED Driver |
| Dimming Operation | 1 to 10 V, Potentiometer |
| AC or DC Input Voltage | ac, dc |
| IP Rating | IP67 |
| Number of Outputs | 1 |
| Voltage Rating | 127 → 370 V dc, 90 → 264 V ac |
