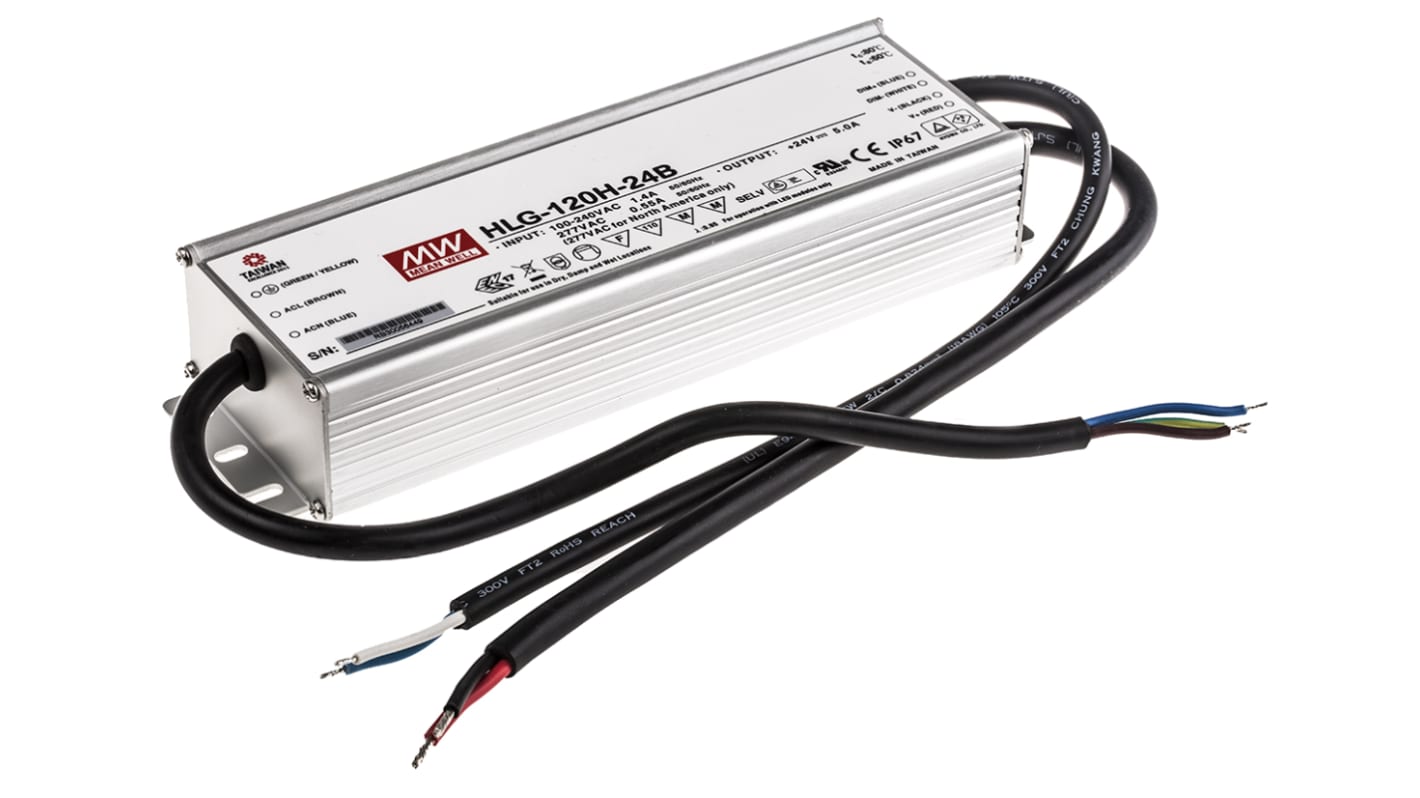

MEAN WELL LED Driver, 24V Output, 120W Output, 5A Output, Constant Current Dimmable

RS Stock No.:: 721-1881
Mfr. Part No.:: HLG-120H-24B
Manufacturer:: MEAN WELL

MEAN WELL LED Driver, 24V Output, 120W Output, 5A Output, Constant Current Dimmable

3 In stock for delivery within 2 working days

Added

Price Each

€52.97

(exc. VAT)

€65.15

(inc. VAT)

Units	Per unit
1 - 4	€52.97
5 - 9	€47.67
10 - 24	€45.55
25 +	€43.96

RS Stock No.:: 721-1881
Mfr. Part No.:: HLG-120H-24B
Manufacturer:: MEAN WELL

Technical data sheets

Legislation and Compliance

Product Details

RS - 120W Waterproof (IP67) PFC Dimmable SMPSU

External, switch mode, encapsulated IP67 rated power supplies
High efficiency, long life and high reliability
Suitable for dry, damp or wet locations indoor or outdoor
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Constant current level adjustable through output cable with 1-10Vdc or 10V PWM signal or resistor
Over current protection level can be set via the output cable
Short circuit, over load, over voltage and over temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
300mm un-terminated, 2-core 18AWG dimming lead
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2

Note

Power derates above 60°C.
MTBF to MIL-HDBK-217F.

Standards

UL8750, EN61347-1, EN61347-2-13, UL60950-1, TUV EN60950-1

Approvals

TUV, UL recognised for Canada & US

Specifications

Attribute	Value
Output Voltage	24V
Maximum Output Power	120W
Output Current	5A
Dimmable	Yes
Input Voltage	127 → 370 V dc, 90 → 264 V ac
Operation	Constant Current
LED Driver Type	LED Driver
Dimming Operation	1 to 10 V, Potentiometer
AC or DC Input Voltage	ac, dc
IP Rating	IP67
Number of Outputs	1
Voltage Rating	127 → 370 V dc, 90 → 264 V ac
