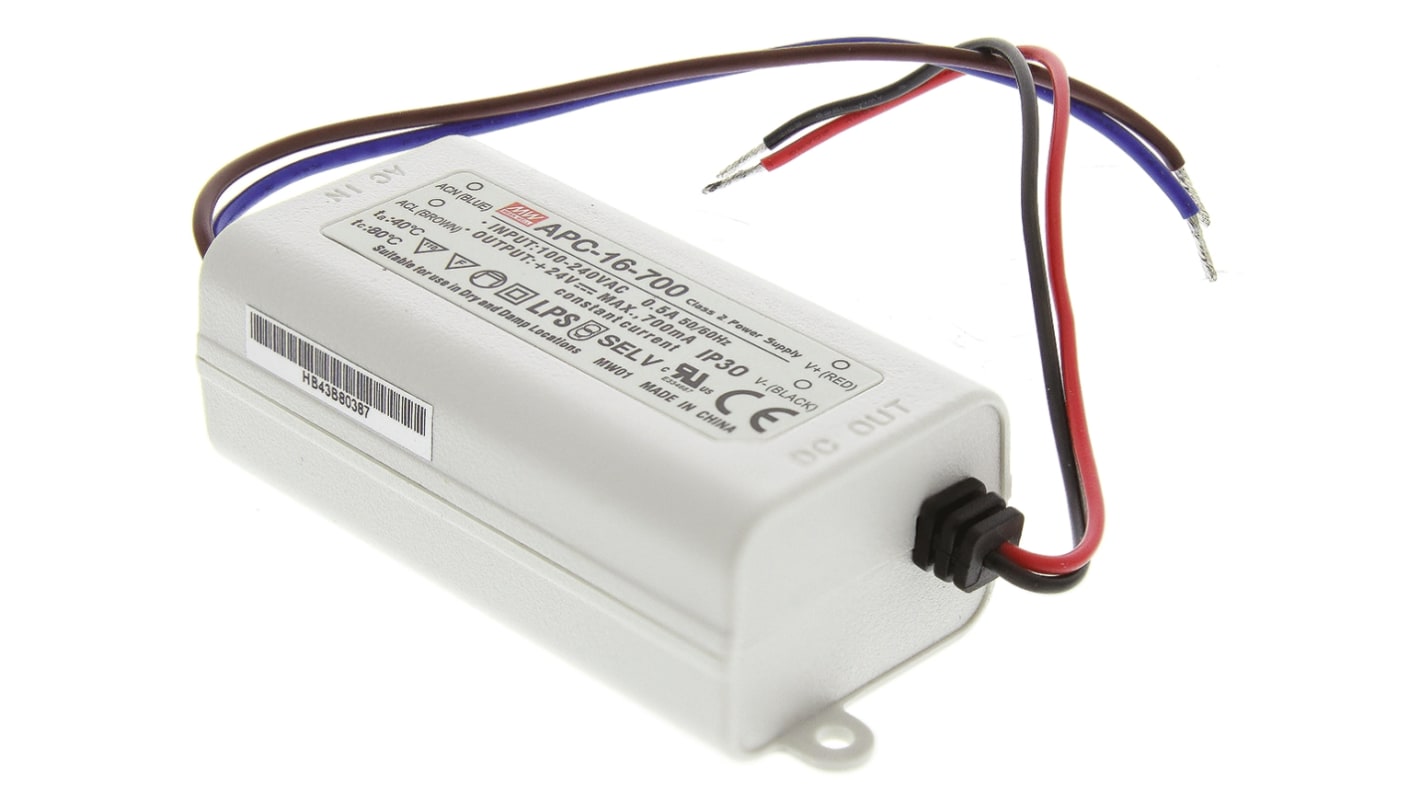

MEAN WELL LED Driver, 9 → 24V Output, 16.8W Output, 700mA Output, Constant Current

RS Stock No.:: 738-1592
Mfr. Part No.:: APC-16-700
Manufacturer:: MEAN WELL

MEAN WELL LED Driver, 9 → 24V Output, 16.8W Output, 700mA Output, Constant Current

Temporarily out of stock - back order for despatch 29-04-2024, delivery within 2 working days

Added

Price Each

€10.52

(exc. VAT)

€12.94

(inc. VAT)

Units	Per unit
1 - 4	€10.52
5 - 9	€9.95
10 - 24	€9.66
25 +	€9.33

RS Stock No.:: 738-1592
Mfr. Part No.:: APC-16-700
Manufacturer:: MEAN WELL

Technical data sheets

Legislation and Compliance

Product Details

Mean Well 12W and 16W Constant Current LED Driver / Power Supply - APC-12 and 16 Series

APC series 12W and 16W constant current LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

Full range universal AC input
Small, compact, fully isolated plastic case
Free air convection cooling
100% full load burn-in test
Short circuit, overload and over voltage protection
Pass LPS
EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 45°C operating temperature - stock number 738-1561 and 738-1570
Derate output above 40°C operating temperature - stock number 738-1583 and 738-1592

Standards

Design refer to TUV EN60950-1, EN61347-2-13, UL8750

Mean Well LED Drivers / Power Supplies

Specifications

Attribute	Value
Output Voltage	9 → 24V
Maximum Output Power	16.8W
Output Current	700mA
Dimmable	No
Input Voltage	127 → 370 V dc, 90 → 264 V ac
Operation	Constant Current
LED Driver Type	LED Driver
AC or DC Input Voltage	ac, dc
IP Rating	IP30
Voltage Rating	127 → 370 V dc, 90 → 264 V ac
