Mean Well LPV-150-48, Constant Voltage LED Driver 153.6W 48V 0 → 3.2A

  • RS Stock No. 816-3907
  • Mfr. Part No. LPV-150-48
  • Manufacturer Mean Well
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

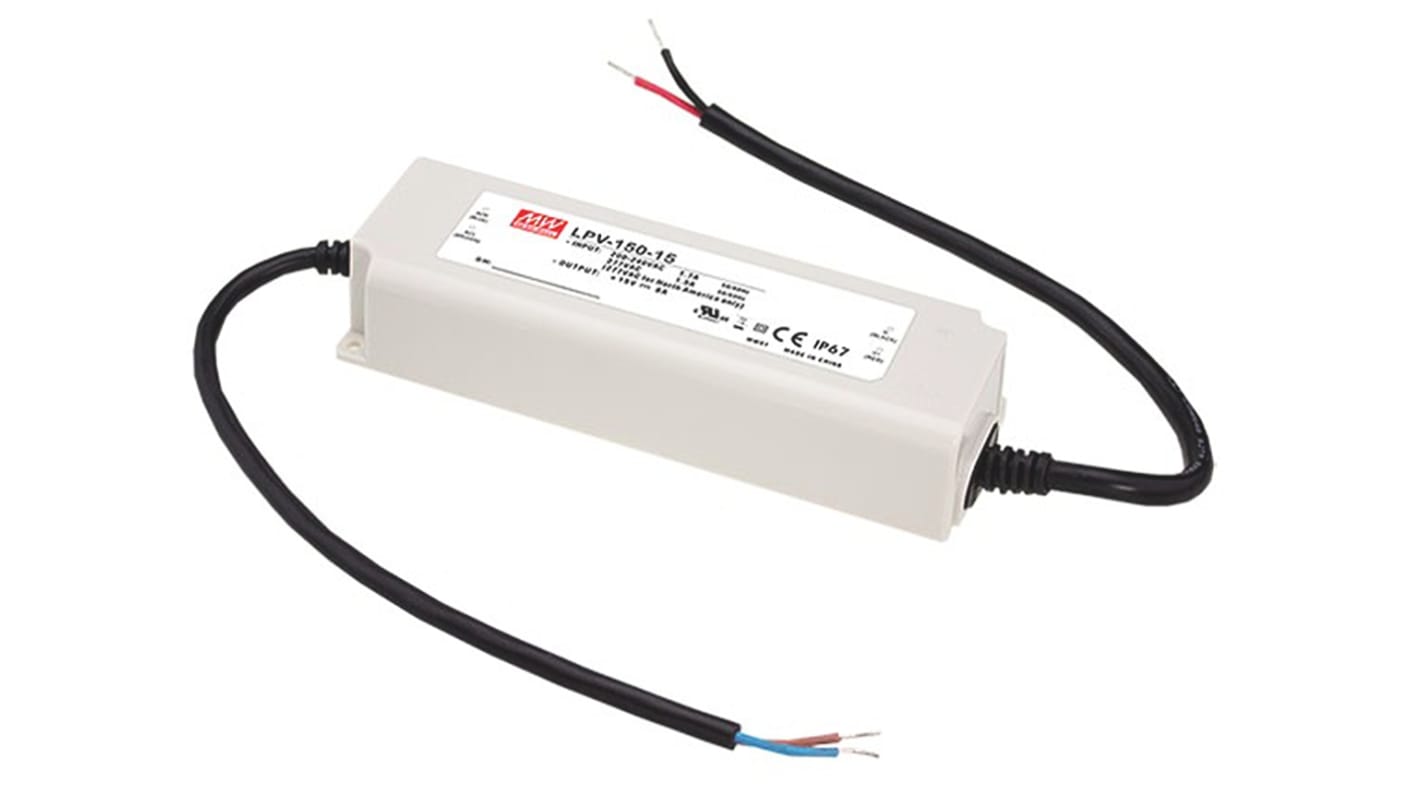

Mean Well LPV-150 Series Constant Voltage LED Driver 150W

The Mean Well LPV-150 series is a class II constant voltage LED driver with 94V-0 flame retardant plastic enclosure. this LED Single output switching Power Supply, accepts 180∼305VAC at input and provides 12V, 15V, 24V, 36V and 48V at output, the five most frequently used DC voltage for LED applications. The LPV-150 series is IP67 rated, protecting the internal electrical components from dust and moisture. The interior of this LED switching power supply is fully potted with heat conducted silicone, improving the heat dissipation capability. The LPV-150 features efficiency up to 90% and works with free air convection at a temperature of -25 +65°C. Other features of this LED driver are the short circuit, overload, over voltage and over temperature protections. Ideal application of this LED switching power supply are in indoor and outdoor LED signage, LED decorative lighting, building wall wash lighting, LED strips and any luminaire involving constant voltage LED driving applications.

180∼305VAC input range
90% high efficiency
Fan less design, cooling by free air convection
Working temperature -25∼+65°C
IP67 rated
Class II power unit
94V-0 flame retardant plastic enclosure
Short circuit / Overload / Over voltage / Over temperature protections

Approvals

UL/CUL/CE

Mean Well LED Drivers / Power Supplies - IP Rated

Specifications
Attribute Value
Input Voltage 180 → 305 V ac, 254 → 431 V dc
Output Voltage 48V
Operation Constant Voltage
Output Current 0 → 3.2A
Maximum Output Power 153.6W
AC or DC Input Voltage Ac, Dc
IP Rating IP67
Voltage Rating 180 → 305 V ac, 254 → 431 V dc
11 In stock for delivery within 2 working days
Unit of sale: Each
76.86
(exc. VAT)
94.54
(inc. VAT)
units
Per unit
1 - 4
€76.86
5 - 9
€73.01
10 - 24
€69.17
25 - 49
€65.33
50 +
€61.48
