515-1011F Dialight, PCB Mounted Right Angle LED Light Pipe, Clear Round Lens
- RS Stock No.:
- 546-0378
- Mfr. Part No.:
- 515-1011F
- Manufacturer:
- Dialight
590 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 10)
€0.624
(exc. VAT)
€0.768
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | €0.624 | €6.24 |
| 50 - 190 | €0.445 | €4.45 |
| 200 - 490 | €0.375 | €3.75 |
| 500 - 990 | €0.354 | €3.54 |
| 1000 + | €0.346 | €3.46 |
| *price indicative | ||
- RS Stock No.:
- 546-0378
- Mfr. Part No.:
- 515-1011F
- Manufacturer:
- Dialight
Technical data sheets
Legislation and Compliance
Product Details

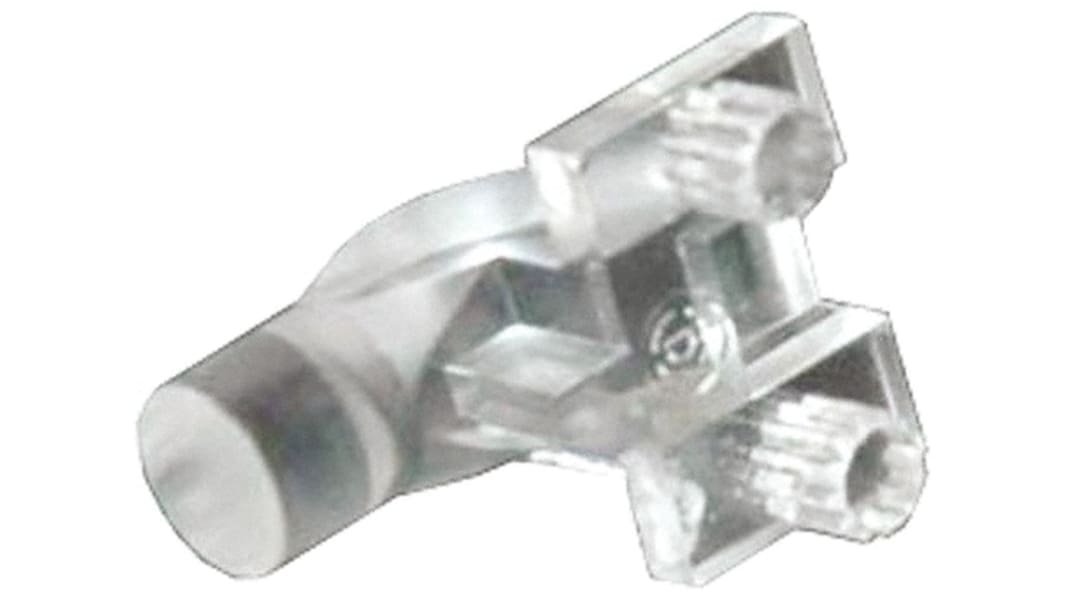

Dialight Optopipe™ Series Optical Light Pipes
The Optopipe™ series, from Dialight, are a range of LED light pipes for MicroLEd® SMD LEDs. These polycarbonate light pipes can house two LEDs and are compatible with a selection Dialight's light pipe arrays. They offer a wide viewing angle and ESD protection.
Designed for PLCC-2 & PLCC-4 package SMT LEDs
Provides ESD protection (circuit isolation from front panel)
High transmissivity polycarbonate material
UL94V-0 compliance
Wide viewing angle
Array types reduce insertion costs
Secures to PCB by press-fitting
Provides ESD protection (circuit isolation from front panel)
High transmissivity polycarbonate material
UL94V-0 compliance
Wide viewing angle
Array types reduce insertion costs
Secures to PCB by press-fitting
LED Light Pipes, Dialight
Specifications
Attribute | Value |
|---|---|
| Flexible/Rigid | Rigid |
| Orientation | Right Angle |
| Length | 14.6mm |
| Dimensions | 10.71 x 11.6 x 14.6mm |
| Mounting Type | PCB Mounted |
| Lens Shape | Round |
| Number of Ways | 1 |
| LED Package Size | 3.5 x 2.8 mm |
| Rows | 1 |
| Columns | 1 |
| LED Included | No |
| Lens Colour | Clear |
| Outer Diameter | 5mm |
| Configuration Rows x Columns | 1 x 1 |
| Series | Optopipe™ |
