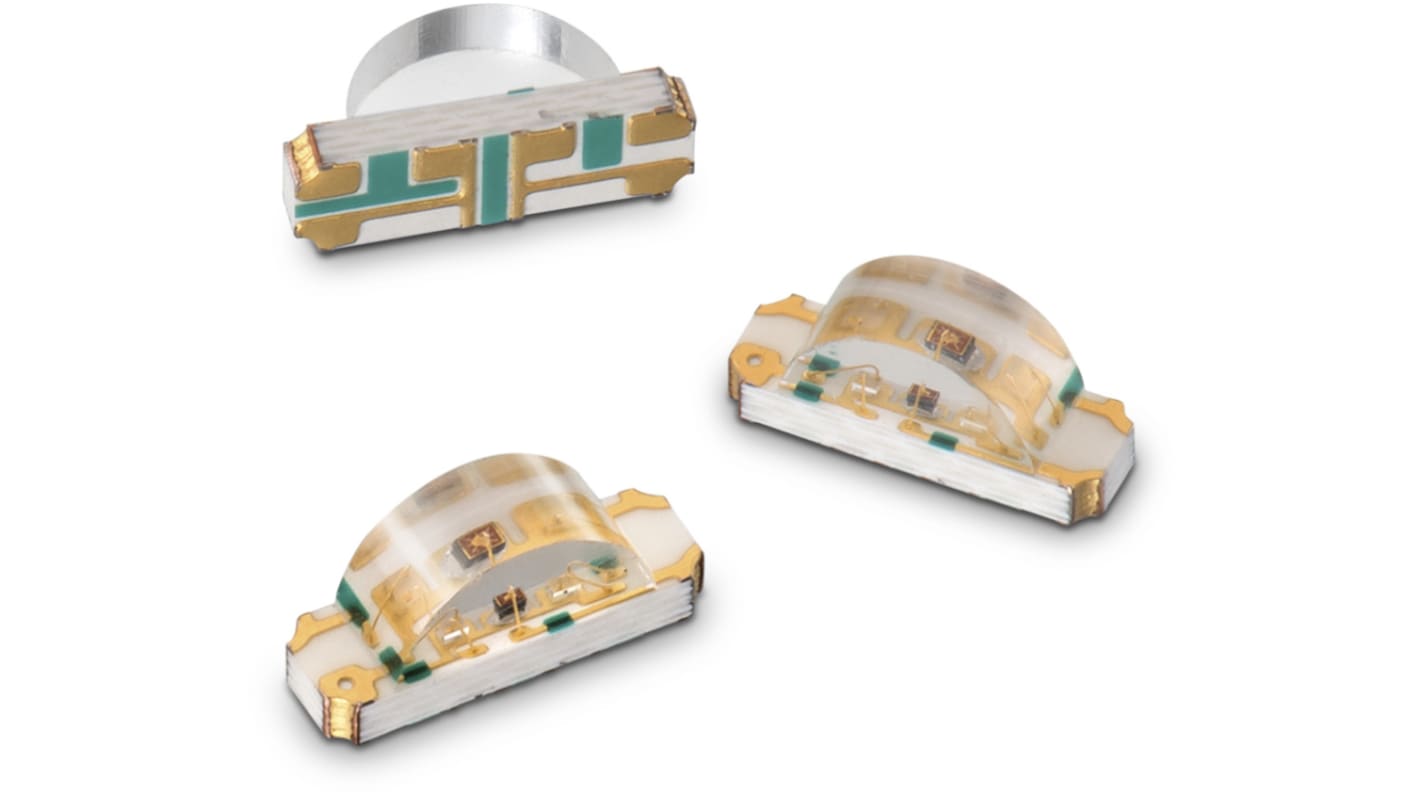

Wurth Elektronik2.4 V RGB LED 3210 (1204) SMD, WL-SFSW 155124M173200A
- RS Stock No.:
- 176-5057
- Mfr. Part No.:
- 155124M173200A
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 26-06-2024, delivery within 2 working days
Added
Price Each (On a Reel of 3000)
€0.30
(exc. VAT)
€0.37
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | €0.30 | €900.00 |
| 6000 - 6000 | €0.292 | €876.00 |
| 9000 + | €0.285 | €855.00 |
| *price indicative | ||
- RS Stock No.:
- 176-5057
- Mfr. Part No.:
- 155124M173200A
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Characteristics
Common anode
Small 1204 side view package with high intensity output
Industry standard package with multiple chips
Standard Soldering Pad
Compatible with reflow soldering and pick and place machine
Applications
Backlighting
Status indicator
Front panel indicator
Office automation, home appliances, industrial equipment
Side-lighting application
Common anode
Small 1204 side view package with high intensity output
Industry standard package with multiple chips
Standard Soldering Pad
Compatible with reflow soldering and pick and place machine
Applications
Backlighting
Status indicator
Front panel indicator
Office automation, home appliances, industrial equipment
Side-lighting application
Specifications
Attribute | Value |
|---|---|
| LED Colours | RGB |
| Package Type | 3210 (1204) |
| Mounting Type | Surface Mount |
| Number of LEDs | 3 |
| Forward Voltage | 2.4 V |
| Luminous Intensity | 150 mcd, 200 mcd, 500 mcd |
| Number of Pins | 4 |
| Viewing Angle | 120 ° |
| Lens Shape | Round |
| Dominant Wavelength | 470 (Blue) nm, 523 (Green) nm, 622 (Red) nm |
| Series | WL-SFSW |
| Dimensions | 3.2 x 1 x 1.48mm |
| Lens Colour | Clear |
| Lens Finish | Clear |
| Forward Current | 20mA |
