- RS Stock No.:
- 176-5059
- Mfr. Part No.:
- 155124RS73200A
- Manufacturer:
- Wurth Elektronik
- RS Stock No.:
- 176-5059
- Mfr. Part No.:
- 155124RS73200A
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW

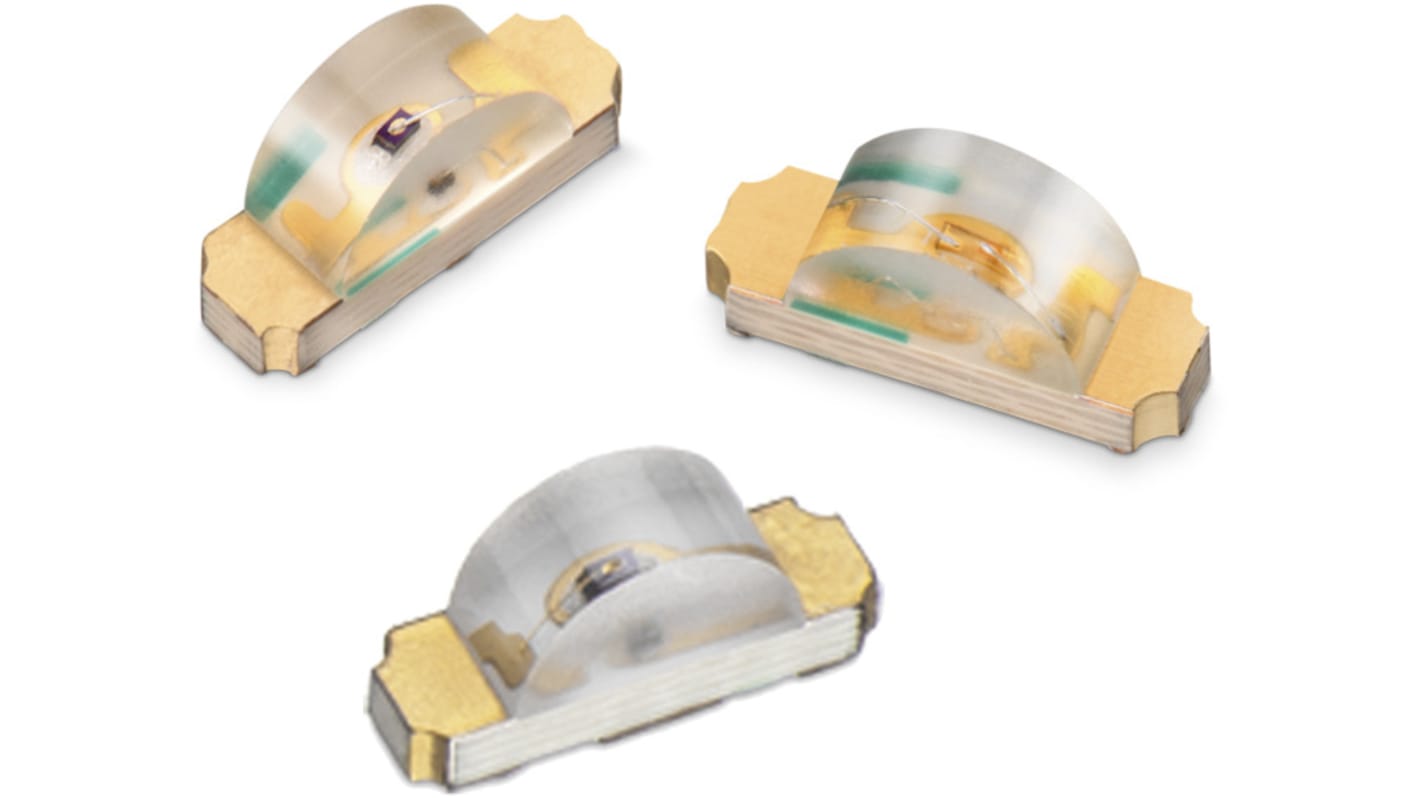

Product Details
Characteristics
Low power consumption
High reliability
Low current requirement
No UV/ IR radiation
Wide viewing angle
Excellent for edge lighting displays and backlighting indicators
Ideal for miniature applications
Compatible with automatic placement equipment
Applications
Backlighting for LCD
Sidelighting applications
Indicator and backlighting for telecommunication
Backlighting for symbols, switches and dashboards
General use
Low power consumption
High reliability
Low current requirement
No UV/ IR radiation
Wide viewing angle
Excellent for edge lighting displays and backlighting indicators
Ideal for miniature applications
Compatible with automatic placement equipment
Applications
Backlighting for LCD
Sidelighting applications
Indicator and backlighting for telecommunication
Backlighting for symbols, switches and dashboards
General use
Specifications
Attribute | Value |
---|---|
LED Colours | Red |
Package Type | 3210 (1204) |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 2.4 V |
Luminous Intensity | 70 mcd |
Number of Pins | 2 |
Viewing Angle | 120 ° |
Lens Shape | Round |
Dominant Wavelength | 624 nm |
Series | WL-SMSW |
Lens Colour | Clear |
Forward Current | 20mA |
Dimensions | 3.2 x 1 x 1.5mm |
Lens Finish | Clear |
