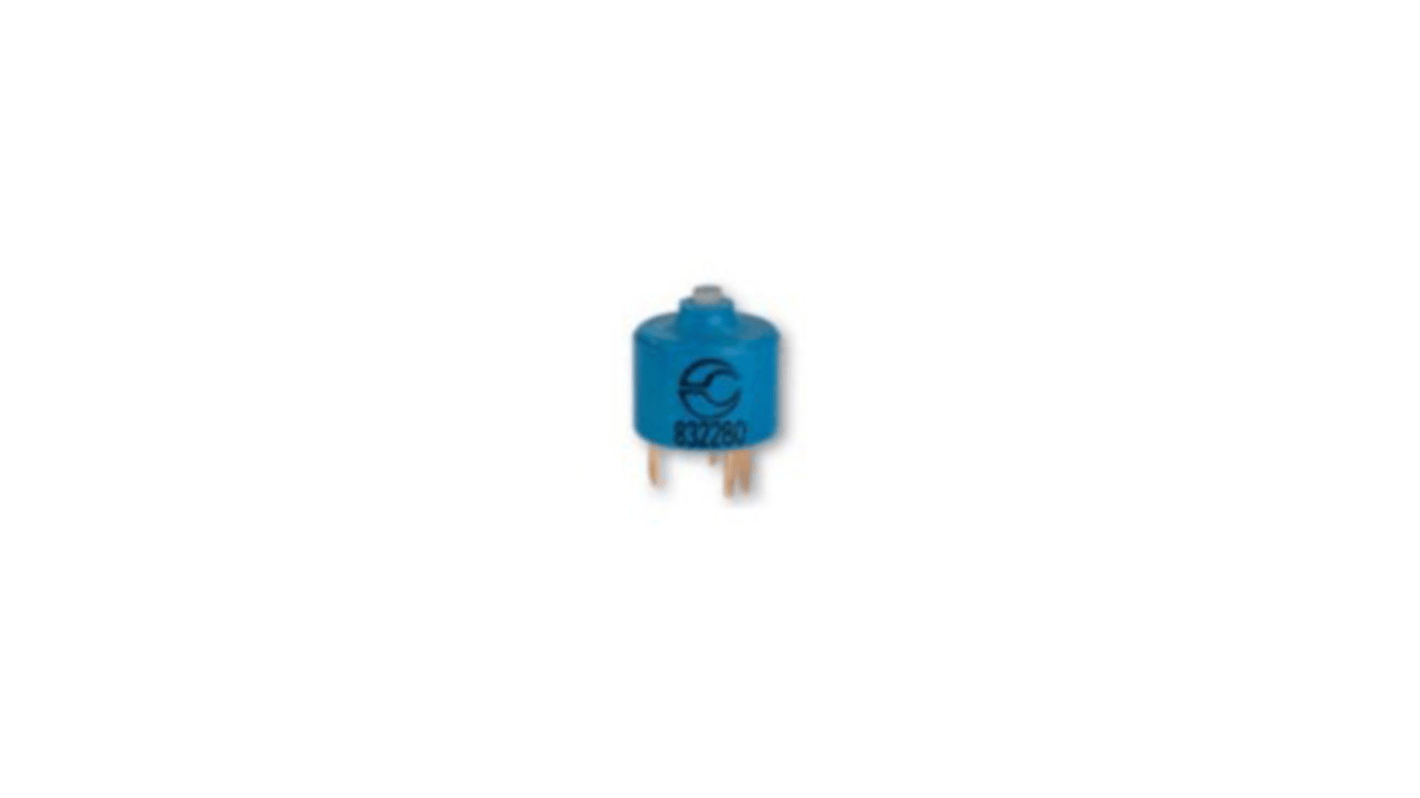

Crouzet Plunger Limit Switch, NO/NC, SP, Polyamide Housing, 250V ac Max, 10A Max
- RS Stock No.:
- 539-268
- Mfr. Part No.:
- 83228001
- Manufacturer:
- Crouzet
10 In stock for delivery within 2 working days
Added
Price Each
€47.93
(exc. VAT)
€58.95
(inc. VAT)
| Units | Per unit |
| 1 + | €47.93 |
- RS Stock No.:
- 539-268
- Mfr. Part No.:
- 83228001
- Manufacturer:
- Crouzet
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MA
Product Details
Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations
Approvals
CSA
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SP |
| Normal State Configuration | NO/NC |
| Maximum Current | 10A |
| Housing Material | Polyamide |
| Maximum AC Voltage | 250V |
| Length | 7.5mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +100°C |
| Mechanical Life | 2 x 1000000Cycles |
