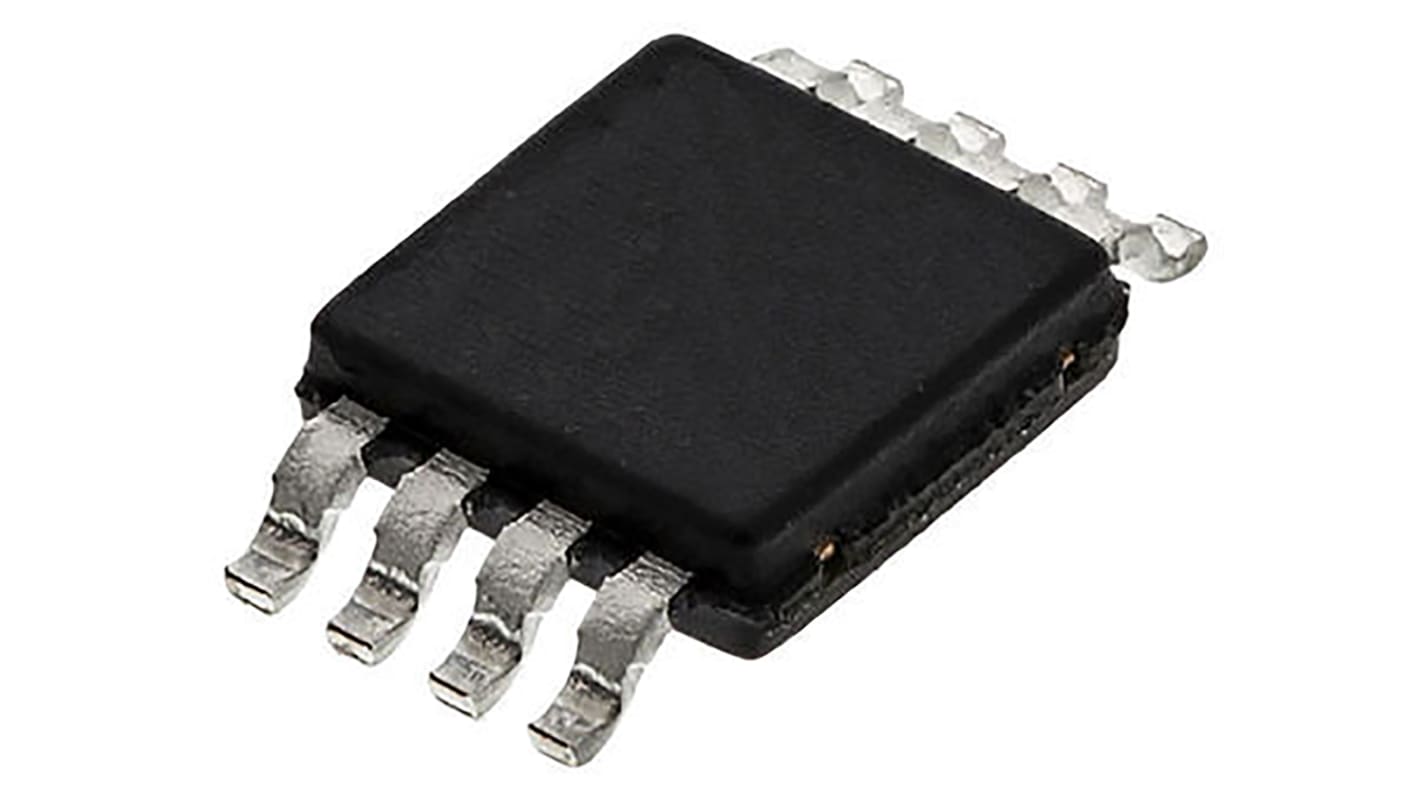

Texas Instruments SN65LVDS100DGK, LVDS Translator & Repeater CML, LVDS, PECL Repeater, Translator, 8-Pin MSOP
- RS Stock No.:
- 923-6788
- Mfr. Part No.:
- SN65LVDS100DGK
- Manufacturer:
- Texas Instruments
80 In stock for delivery within 2 working days
Added
Price Each (In a Tube of 80)
€4.732
(exc. VAT)
€5.82
(inc. VAT)
| Units | Per unit | Per Tube* |
| 80 + | €4.732 | €378.56 |
| *price indicative | ||
- RS Stock No.:
- 923-6788
- Mfr. Part No.:
- SN65LVDS100DGK
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
LVDS/M-LVDS/ECL/CML, Repeater/Buffer, Texas Instruments
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
Specifications
Attribute | Value |
|---|---|
| Number of Drivers | 1 |
| Input Type | CML, LVDS, PECL |
| Output Type | Repeater, Translator |
| IC Type | Translator & Repeater IC |
| Transmission Data Rate | 2000Mbps |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 8 |
| Differential Input Low Threshold Voltage | -0.1V |
| Dimensions | 3 x 3 x 0.97mm |
| Height | 0.97mm |
| Length | 3mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 3 V |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
