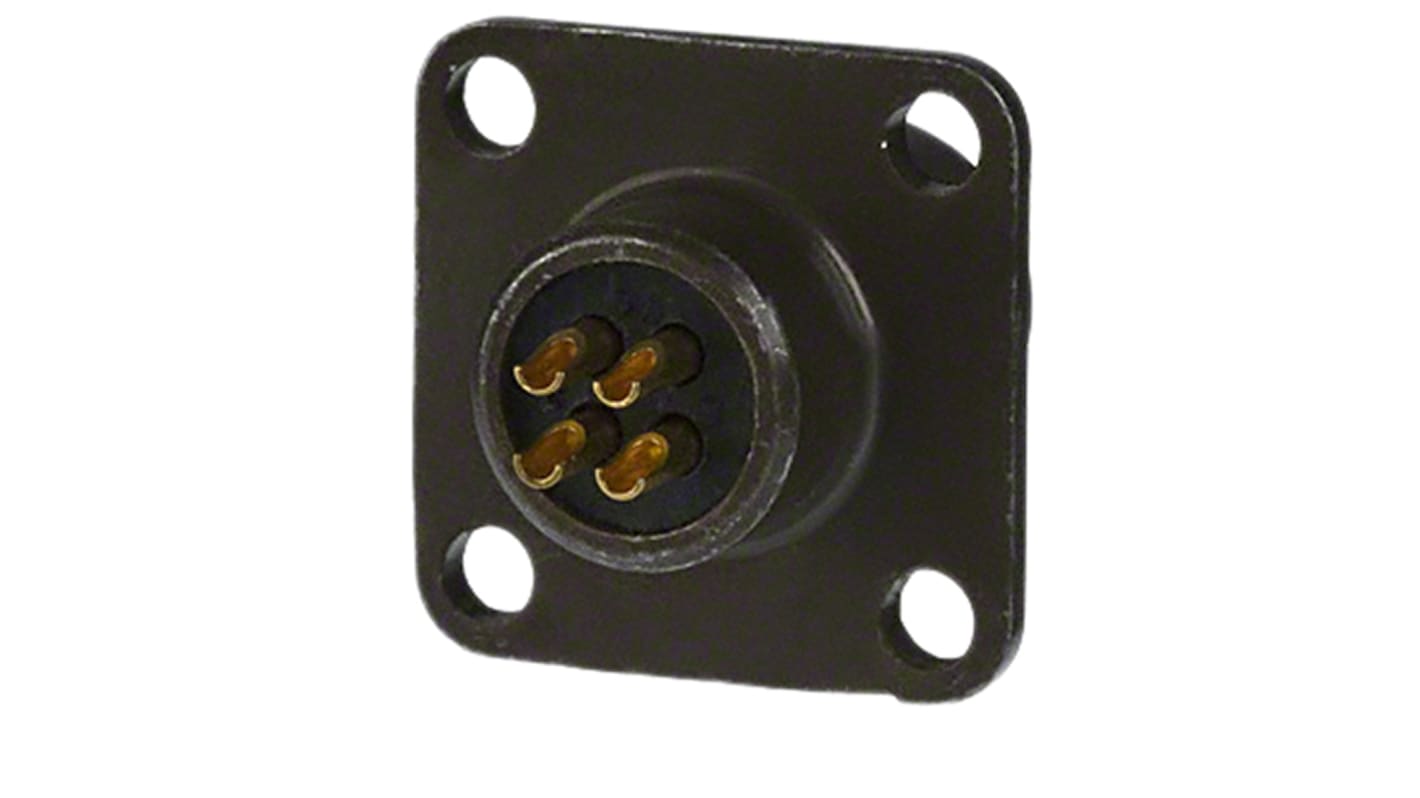

Amphenol, PT 4 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 8, Bayonet,

RS Stock No.:: 872-1499
Mfr. Part No.:: PT02E-8-4S
Manufacturer:: Amphenol Industrial

Amphenol, PT 4 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 8, Bayonet,

View this category

4 In stock for delivery within 2 working days

Added

View basket

Price Each

€15.34

(exc. VAT)

€18.87

(inc. VAT)

Units	Per unit
1 - 9	€15.34
10 - 24	€14.59
25 +	€13.79

RS Stock No.:: 872-1499
Mfr. Part No.:: PT02E-8-4S
Manufacturer:: Amphenol Industrial

Technical data sheets

Legislation and Compliance

Non Compliant

Product Details

Amphenol PT Series Connectors

The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.

PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)

Amphenol PT Series Connectors

Specifications

Attribute	Value
Number of Contacts	4
Gender	Female
Contact Gender	Female
Voltage Rating	1 kV ac
Shell Size	8
Mounting Type	Panel Mount
Military Standard	MIL-DTL-26482
Termination Method	Solder
Mating Type	Bayonet
Connector Size	Miniature
Body Orientation	Straight
Housing Material	Aluminium
Series	PT
Colour	Green
Maximum Operating Temperature	+125°C
Contact Material	Copper Alloy
Minimum Operating Temperature	-55°C
Shell Plating	Cadmium
Contact Plating	Gold
