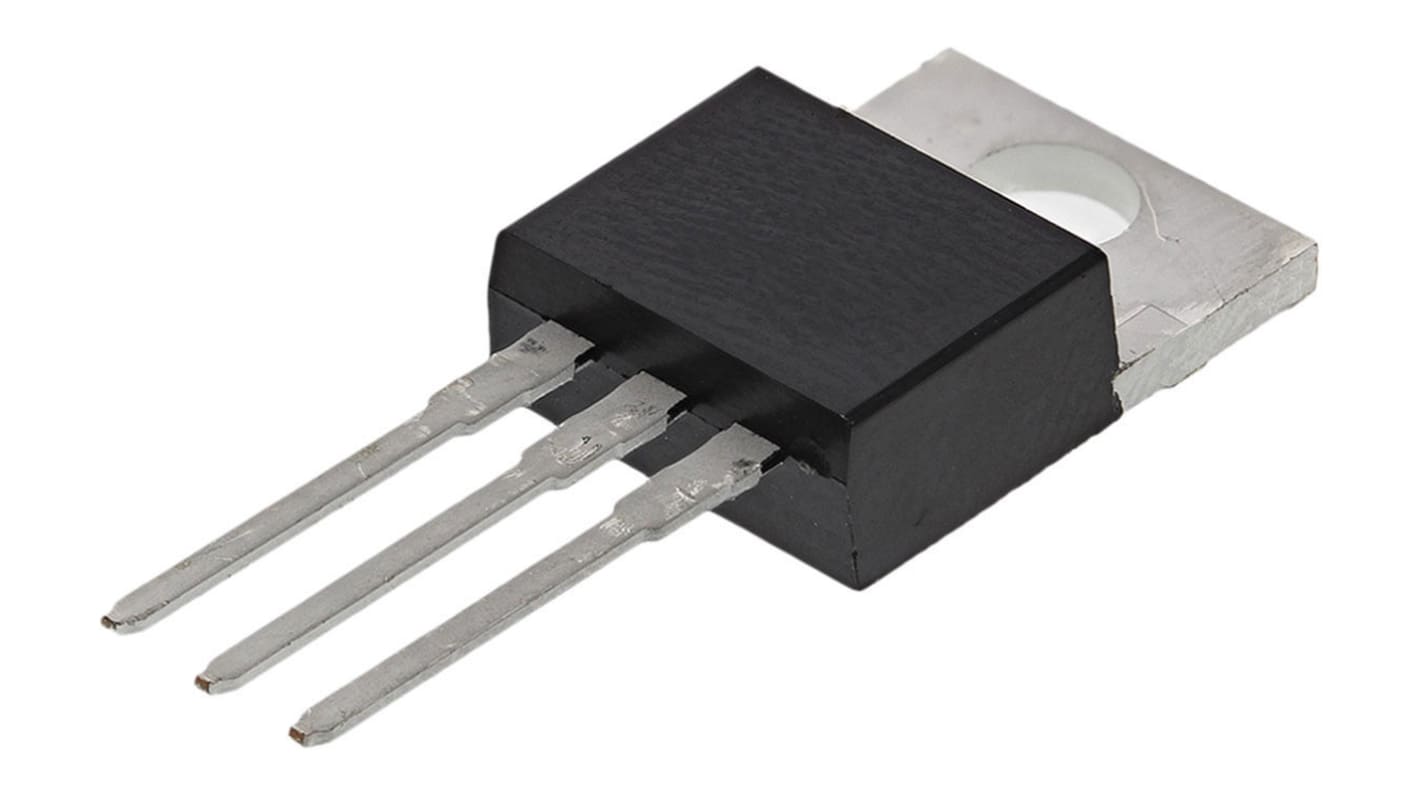

P-Channel MOSFET, 12 A, 100 V, 3-Pin TO-220AB Vishay IRF9530PBF
- RS Stock No.:
- 919-0036
- Mfr. Part No.:
- IRF9530PBF
- Manufacturer:
- Vishay
Temporarily out of stock - back order for despatch 07-10-2024, delivery within 2 working days
Added
Price Each (In a Tube of 50)
€1.481
(exc. VAT)
€1.822
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | €1.481 | €74.05 |
| 100 - 200 | €1.407 | €70.35 |
| 250 + | €1.333 | €66.65 |
| *price indicative | ||
- RS Stock No.:
- 919-0036
- Mfr. Part No.:
- IRF9530PBF
- Manufacturer:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
P-Channel MOSFET, 100V to 400V, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 12 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 300 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 88 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 38 nC @ 10 V |
| Maximum Operating Temperature | +175 °C |
| Length | 10.41mm |
| Width | 4.7mm |
| Transistor Material | Si |
| Height | 9.01mm |
| Minimum Operating Temperature | -55 °C |
