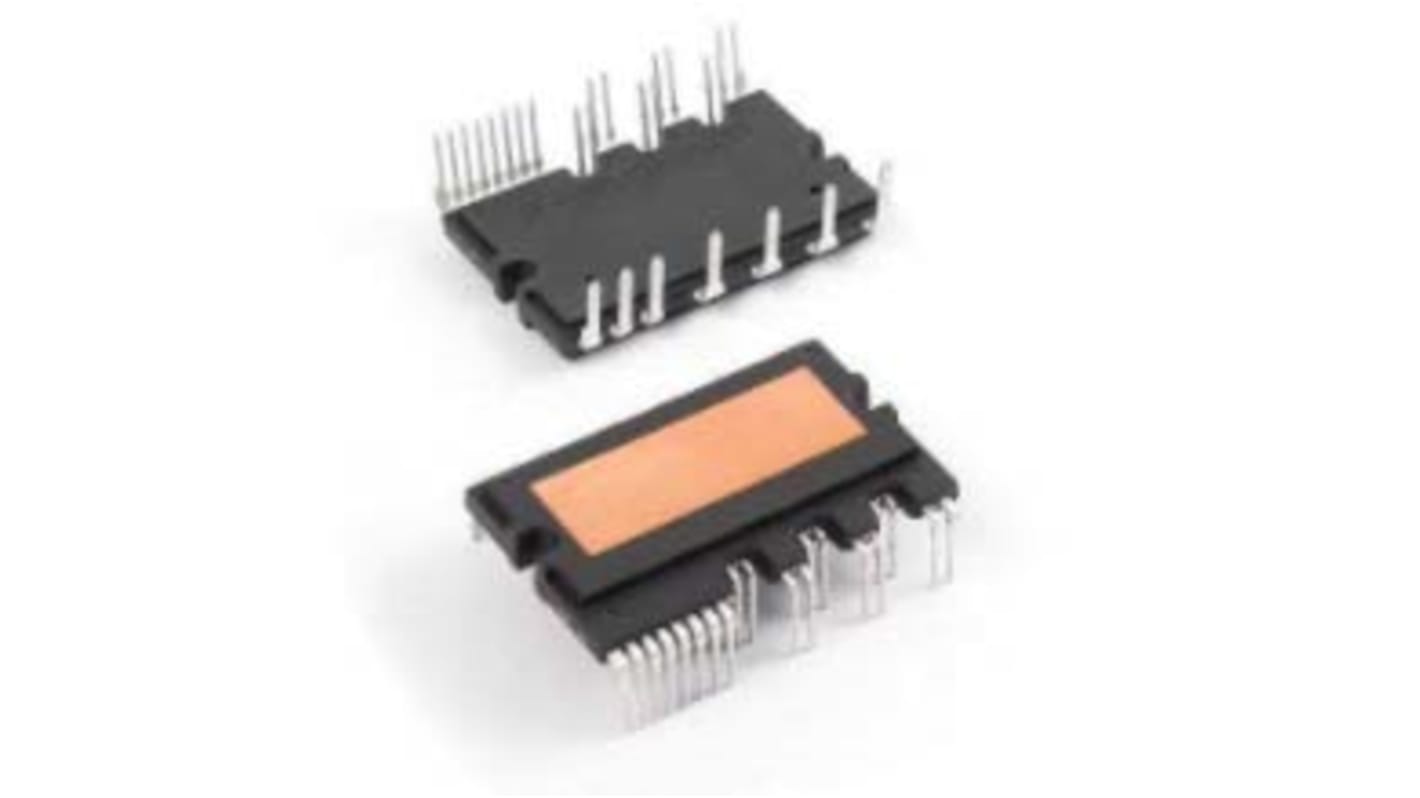

onsemi FNB35060, AC Induction, BLDC Motor, PMSM Motor Intelligent Power Module, 600 V 100A 27-Pin, SPM3
- RS Stock No.:
- 146-4110
- Mfr. Part No.:
- FNB35060T
- Manufacturer:
- onsemi
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
€35.90
(exc. VAT)
€44.16
(inc. VAT)
| Units | Per unit |
| 1 + | €35.90 |
- RS Stock No.:
- 146-4110
- Mfr. Part No.:
- FNB35060T
- Manufacturer:
- onsemi
Legislation and Compliance
Product Details
Motion SPM® 3 Series Motor Drivers, Fairchild Semiconductor
A range of advanced Smart Power Modules from Fairchild Semiconductor which provide compact high performance solutions for many inverter motor drive applications. The modules integrate optimized gate drive for the built-in power MOSFETs to minimize EMI and losses and also include multiple on-module protection features including under-voltage lockouts and thermal monitoring. The modules are suitable for driving AC Induction, BLDC (Brushless DC) and PMSM (Permanent Magnet Synchronous) motors.
Motor Controllers & Drivers, Fairchild Semiconductor
Specifications
Attribute | Value |
|---|---|
| Motor Type | AC Induction, BLDC Motor, PMSM Motor |
| Output Configuration | 3 Phase |
| Configuration | Array 6 |
| Maximum IGBT Collector Current | 100A |
| Maximum Output Current | 2A |
| Maximum Supply Voltage | 400 V |
| Maximum Collector Emitter Voltage | 600 V |
| Mounting Type | Through Hole |
| Package Type | SPM3 |
| Maximum Operating Supply Voltage | 400 V |
| Pin Count | 27 |
| Minimum Operating Supply Voltage | 300 V |
| Series | Motion SPM 3 |
| Product Length | 44.2mm |
| Length | 44.2mm |
| Product Width | 27mm |
| Dimensions | 44.2 x 27 x 5.7mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Product Height | 5mm |
| Height | 5.7mm |
| Width | 27mm |
