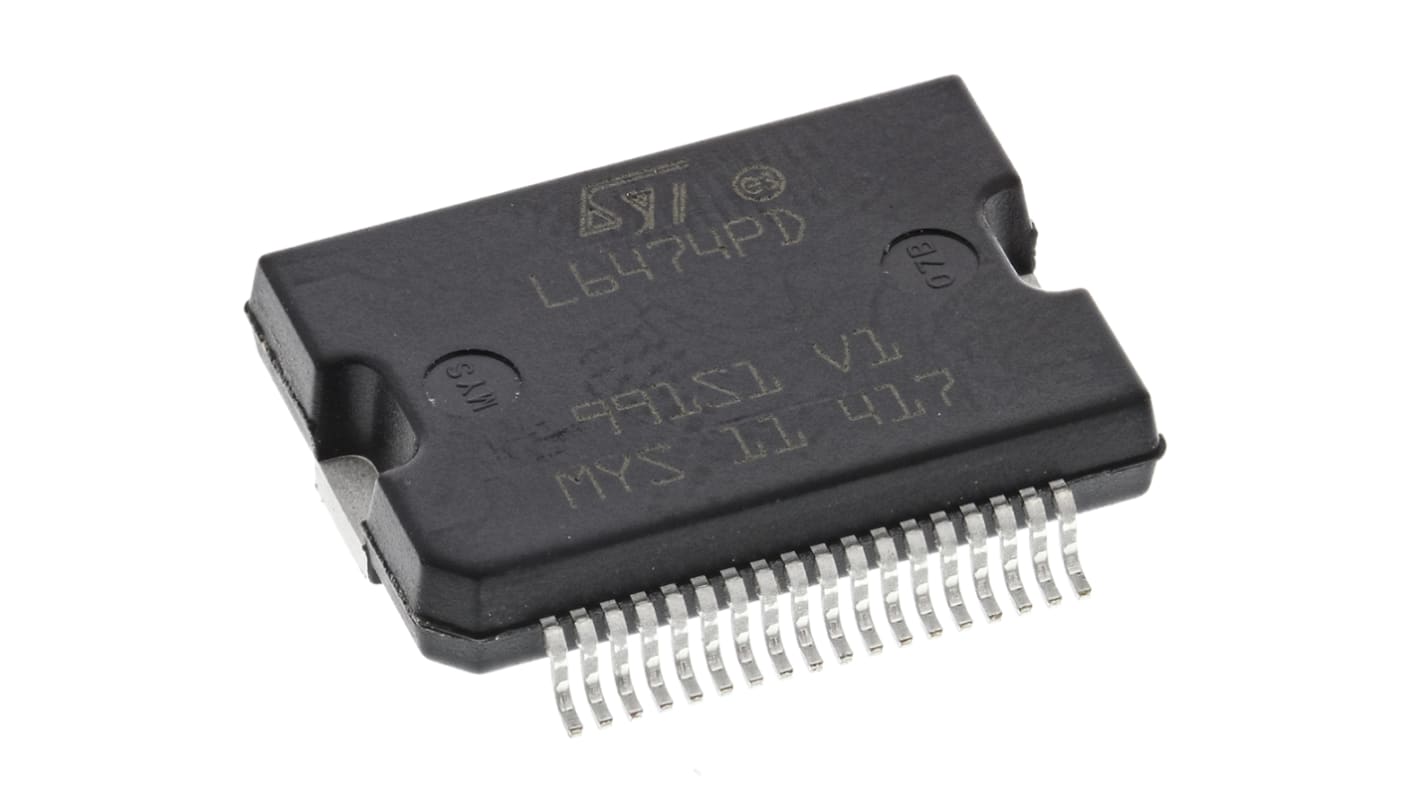

STMicroelectronics L6474PD, Stepper Motor Driver IC, 45 V 3A 36-Pin, PowerSO
- RS Stock No.:
- 791-9144
- Mfr. Part No.:
- L6474PD
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 25-03-2025, delivery within 2 working days
Added
Price Each
€6.15
(exc. VAT)
€7.56
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €6.15 |
| 5 - 9 | €5.83 |
| 10 - 24 | €5.27 |
| 25 - 49 | €4.73 |
| 50 + | €4.48 |
- RS Stock No.:
- 791-9144
- Mfr. Part No.:
- L6474PD
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Stepper Motor Drivers, STMicroelectronics
Motor Controllers & Drivers, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Motor Type | Stepper |
| Output Configuration | Bipolar |
| Maximum IGBT Collector Current | 3A |
| Maximum Collector Emitter Voltage | 45 V |
| Mounting Type | Surface Mount |
| Package Type | PowerSO |
| Pin Count | 36 |
| Maximum Operating Supply Voltage | 45 V |
| Minimum Operating Supply Voltage | 4 V |
| Typical Switching Frequency | 800kHz |
| Length | 16mm |
| Height | 3.3mm |
| Width | 11.1mm |
| Dimensions | 16 x 11.1 x 3.3mm |
| Minimum Operating Temperature | -45 °C |
| Maximum Operating Temperature | +150 °C |
