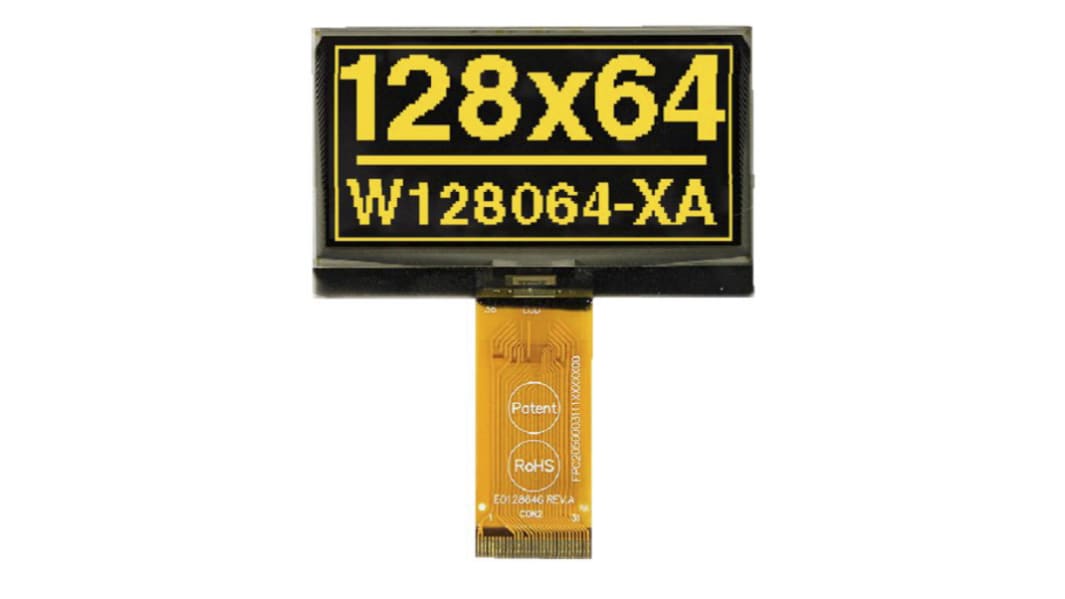

Display Visions 2.42in Yellow Passive matrix OLED Display 128 x 64pixels COB I2C, SPI Interface
- RS Stock No.:
- 168-8571
- Mfr. Part No.:
- EA W128064-XALG
- Manufacturer:
- Display Visions
11 In stock for delivery within 2 working days
Added
Price Each
€47.51
(exc. VAT)
€58.44
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €47.51 |
| 10 + | €42.19 |
- RS Stock No.:
- 168-8571
- Mfr. Part No.:
- EA W128064-XALG
- Manufacturer:
- Display Visions
Technical data sheets
Legislation and Compliance
Product Details
Whether round, whether square or extreme small with 29x9mm only, the new OLED displays from ELECTRONIC ASSEMBLY play their advantage for compact handheld applications: power saving, compact and with an extreme wide operating temperature of -40..+80°C range. Interface is serial for every 3.3V system. Thanks to the integrated controller and a lot initialization examples it is easy to display measurement, graphics and icons quick and contrasty.
2.42" Low-Poweroled
-40..+80°C (Top.)
128 x 64 dots
Incl. Controllerssd 1309z
Spi, I²C, 8-Bit interface
Fast responsetime (10μs) Even at -40°C
Ziff connection
60.5 x 37.0 mm outline dim
-40..+80°C (Top.)
128 x 64 dots
Incl. Controllerssd 1309z
Spi, I²C, 8-Bit interface
Fast responsetime (10μs) Even at -40°C
Ziff connection
60.5 x 37.0 mm outline dim
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 2.42in |
| Viewing Area Dimensions | 57.01 x 28.9mm |
| Matrix Type | Passive |
| Display Colours | Yellow |
| Resolution | 128 x 64pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | COB |
| Interface Ports | I2C, SPI |
| Dimensions | 60.5 x 37 x 2.15mm |
| Depth | 2.15mm |
| Touch Screen Type | None |
| Height | 37mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 4 V dc, 15 V dc |
| Operating Temperature Range | -40 → +80°C |
| Width | 60.5mm |
| Viewing Area Width | 57.01mm |
| Viewing Area Height | 28.9mm |
