Display Visions 1.18in White Passive matrix OLED Display 128 x 128pixels COB I2C, SPI Interface
- RS Stock No.:
- 168-8575
- Mfr. Part No.:
- EA W128128-XRLW
- Manufacturer:
- Display Visions
Stock check temporarily unavailable - call for stock availability
Added
Price Each (In a Box of 9)
€43.32
(exc. VAT)
€53.28
(inc. VAT)
| Units | Per unit | Per Box* |
| 9 + | €43.32 | €389.88 |
| *price indicative | ||
- RS Stock No.:
- 168-8575
- Mfr. Part No.:
- EA W128128-XRLW
- Manufacturer:
- Display Visions
Technical data sheets
Legislation and Compliance
Product Details

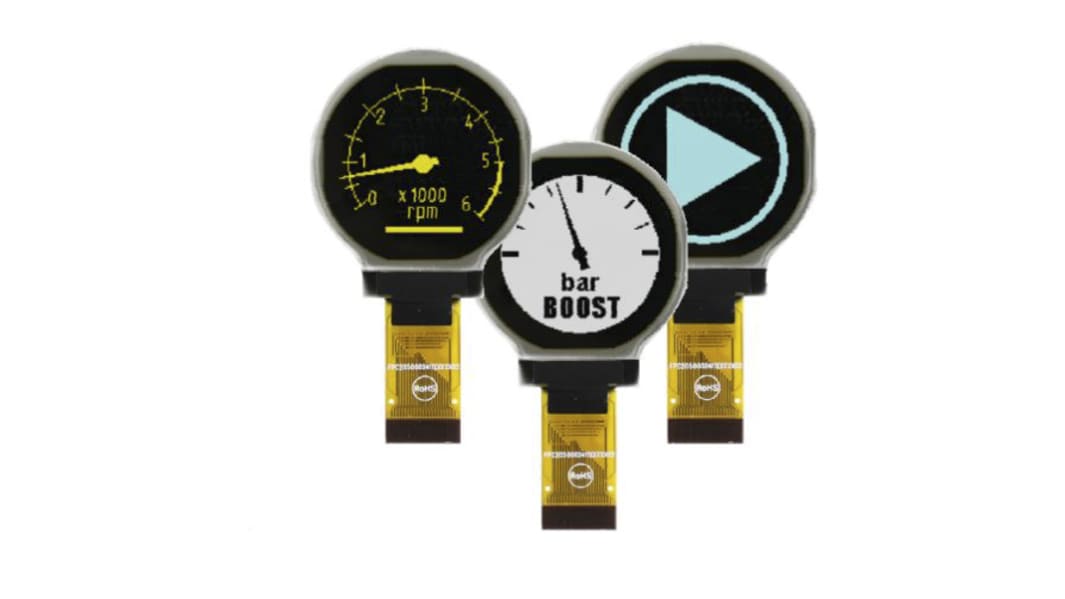

Whether round, whether square or extreme small with 29x9mm only, the new OLED displays from ELECTRONIC ASSEMBLY play their advantage for compact handheld applications: power saving, compact and with an extreme wide operating temperature of -40..+80°C range. Interface is serial for every 3.3V system. Thanks to the integrated controller and a lot initialization examples it is easy to display measurement, graphics and icons quick and contrasty.
1.2" Low-Power OLED
-40..+80°C (Top.)
128 x 128 dots
Incl. controller SSD1327ZB
SPI, I²C, 8-Bit Interface
Fast responsetime (10μs) evenat -40°C
ZIFF connection
37mm diameter
-40..+80°C (Top.)
128 x 128 dots
Incl. controller SSD1327ZB
SPI, I²C, 8-Bit Interface
Fast responsetime (10μs) evenat -40°C
ZIFF connection
37mm diameter
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 1.18in |
| Viewing Area Dimensions | 30 x 30mm |
| Matrix Type | Passive |
| Display Colours | White |
| Resolution | 128 x 128pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | COB |
| Interface Ports | I2C, SPI |
| Dimensions | 36.8 x 41.23 x 2.05mm |
| Touch Screen Type | None |
| Depth | 2.05mm |
| Height | 41.23mm |
| Maximum Operating Temperature | +80°C |
| Forward Voltage | 3.3 V dc, 15 V dc |
| Operating Temperature Range | -40 → +80°C |
| Minimum Operating Temperature | -40°C |
| Viewing Area Width | 30mm |
| Viewing Area Height | 30mm |
| Width | 36.8mm |
