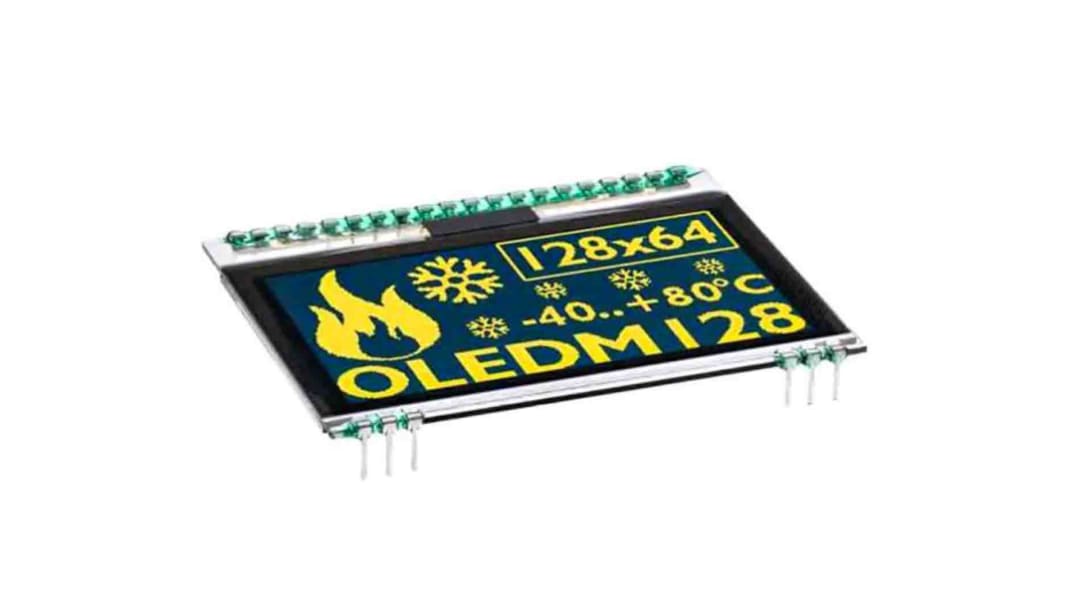

Display Visions 2.3in Yellow Passive matrix OLED Display 128 x 64pixels Graphics I2C, SPI Interface
- RS Stock No.:
- 197-1208
- Mfr. Part No.:
- EA OLEDM128-6GGA
- Manufacturer:
- Display Visions
16 In stock for delivery within 2 working days
Added
Price Each (In a Tray of 16)
€39.346
(exc. VAT)
€48.396
(inc. VAT)
| Units | Per unit | Per Tray* |
| 16 + | €39.346 | €629.536 |
| *price indicative | ||
- RS Stock No.:
- 197-1208
- Mfr. Part No.:
- EA OLEDM128-6GGA
- Manufacturer:
- Display Visions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Electronic Assembly EA OLED series launched worldwide the first display family with OLED technology for direct mounting and soldering. In comparison to standard displays there’s no FFC/FPC cable/connector that may lose contact, this OLED series will be soldered directly or put into a standard 2.54mm precision socket. It is designed for compact handheld equipment and provides a lot real advantages.
SPI Interface: MOSI, CLK, CS, D/C
I²C interface: SDA, SCL
Fast response time with no afterglow
I²C interface: SDA, SCL
Fast response time with no afterglow
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 2.3in |
| Viewing Area Dimensions | 34 x 62 |
| Aspect Ratio | 17:31 |
| Matrix Type | Passive |
| Display Colours | Yellow |
| Resolution | 128 x 64pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | Graphics |
| Interface Ports | I2C, SPI |
| Dimensions | 55 x 43 x 3.3mm |
| Height | 47.8 |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 3.3 V dc |
| Width | 67.5mm |
| Operating Temperature Range | -40 → +80°C |
| Viewing Area Width | 62mm |
| Viewing Area Height | 34mm |
| Series | EA OLED |
