RS PRO Oscilloscope Probe, Probe Type: Passive 150MHz 20V

  • RS Stock No. 146-6613
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

RS PRO Oscilloscope Probes

The RS PRO passive oscilloscope probe is ergonomically designed and is suitable for use with all the major brands of oscilloscopes as well as our range. This probe does not require a power supply or batteries. Hence it is lightweight and easily portable. It comes with a fixed 10:1 attenuation, bandwidth up to 150MHz and is designed for measurements up to 600V.

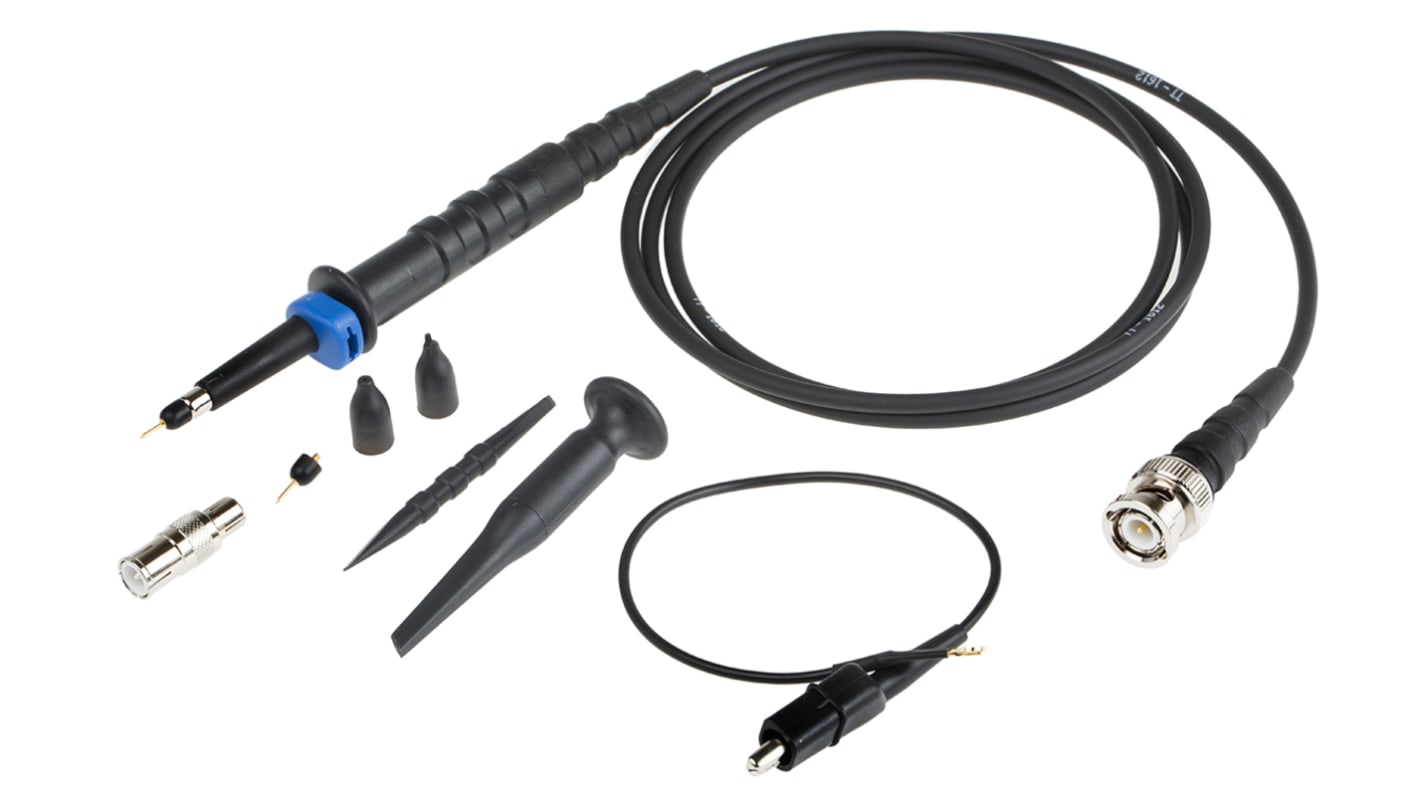

Contents
LF Oscilloscope Probe
Protective caps
BNC adapter
Spring hook tip
Spare probe tip
Grounding lead terminated with insulated crocodile clip
Trimmer tool
Probe Options:
RS - LF 212
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.

Features and Benefits

Bandwidth is DC to 150MHz
Attenuation ratio is 10:1
Input impedance is 10Mohmll 14pF
Rise time is 2.3nS
Maximum common mode input voltage is ±20V
10:1 max. input voltage is 600V CAT I (VDC + Peak AC)

Certifications

CAT I

Specifications
Attribute Value
Probe Type Passive
Attenuation 1:10
Bandwidth 150MHz
Maximum Common Mode Input Voltage 20V
Connector Type BNC
Number of Probes 1
Safety Category Level CAT I
Safety Category Voltage 600V
Safety Category CAT I 600 V
Rise Time 2.3ns
42 Within 2 working day(s) (EU stock)
86 Within 2 working day(s) (EU stock)
Unit of sale: Each
30.04
(exc. VAT)
36.35
(inc. VAT)
units
Per unit
1 +
€30.04
