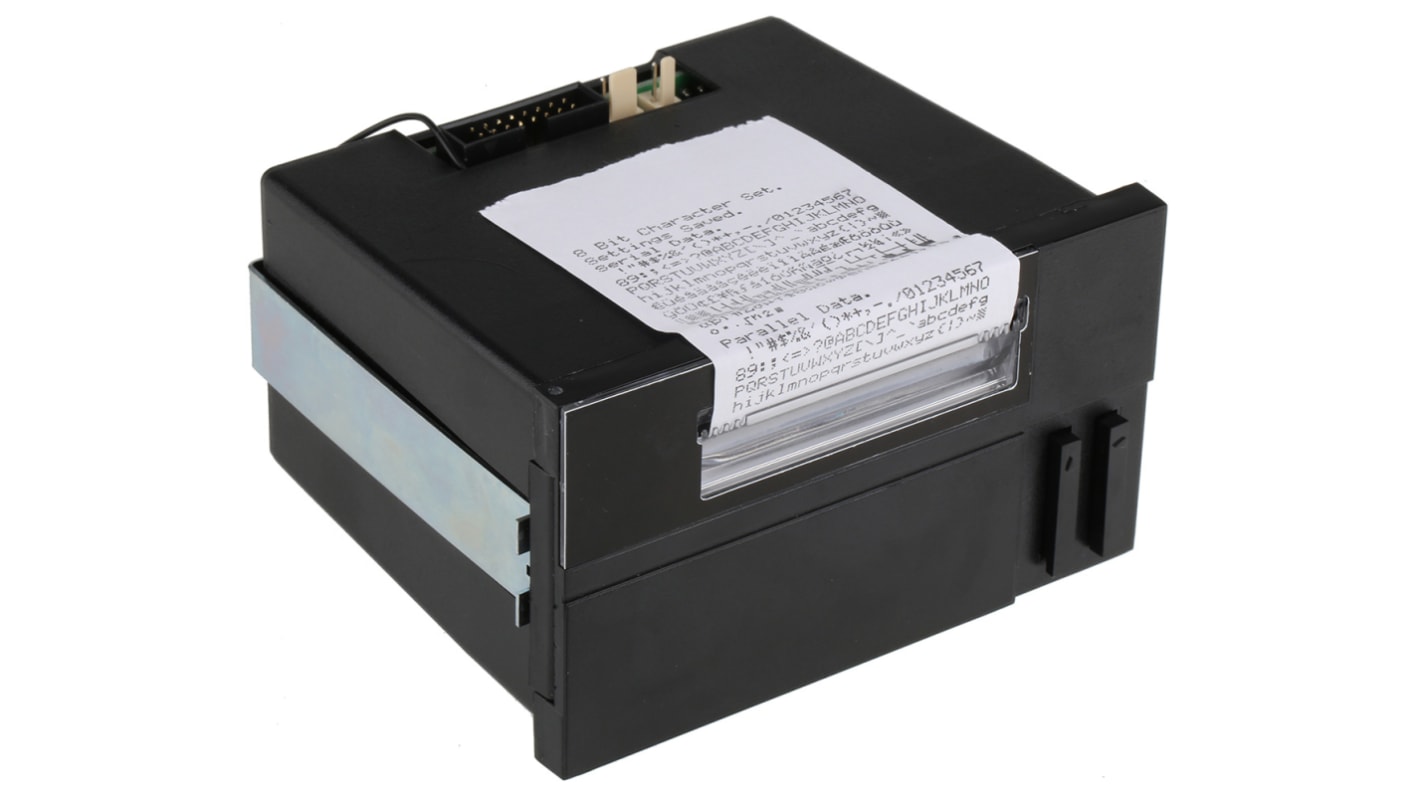

Able Systems Panel Printer

  • RS Stock No. 260-139
  • Mfr. Part No. AP25-24-RS
  • Manufacturer Able Systems
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Microprocessor Controlled Alphanumeric Printers

Low cost, 24 column, panel-mounted, complete with data cable
Snap-in ink ribbon cartridges, printout on standard paper rolls
Incorporates highly reliable EPSON printer mechanisms
Ideal for use in automatic test equipment, communication terminals, data logging, weighing equipment, etc.
Selectable inverted print
Dot addressable graphics (144 dots per line)
Double width or height; double width/height printout modes
Built in self-test
Operating temperature range 0 to 50°C

Technical Specification

Parallel input TTL parallel interface, positive true; 7 bits, STROBE and BUSY Centronics protocol
Serial input V24/RS-232C protocol TTL interface, positive true; 1 start bit, 7 data bits, 2 or more stop bits, parity ignored. Pin selectable 110, 300, 1200, 2400 baud
Character set 96 character ASCII lower case and upper case
Character format 7 (high) ´ 5 (wide) dot matrix. 24 characters per line. Graphics mode, n ´ 144 dots. Double height and width character format, as well as text (standard) or data (inverted) mode, can be selected by sending appropriate control codes before printable codes
Connectors Polarised 16-way wrap posts (0.1 pitch) for data lead (supplied)

Specifications
Attribute Value
Paper Width 57.5mm
Resolution 0.33 dpmm
Cutout Height 96mm
Cutout Width 113.5mm
17 In stock for delivery within 2 working days
Unit of sale: Each
258.47
(exc. VAT)
317.92
(inc. VAT)
units
Per unit
1 +
€258.47
