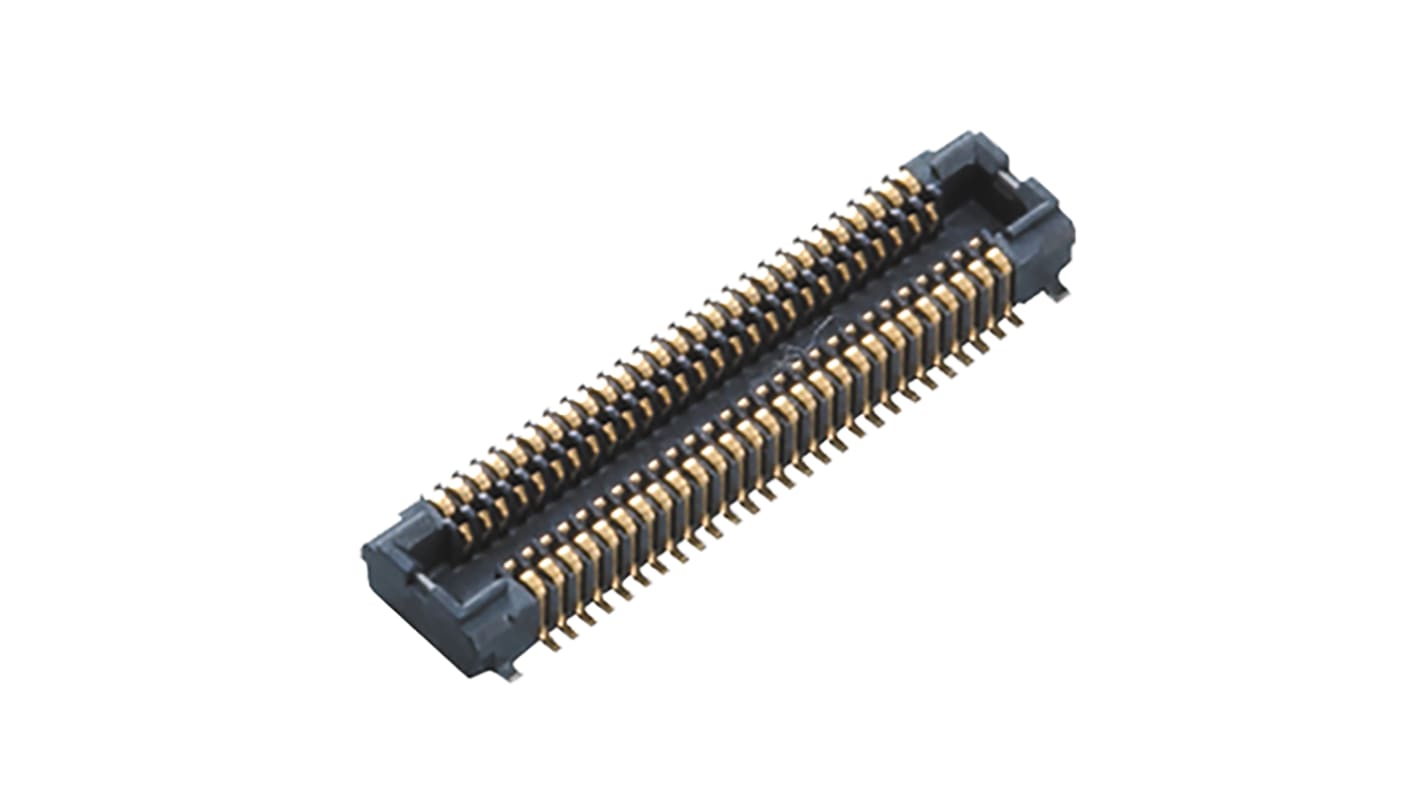

Panasonic P4S Series Surface Mount PCB Socket, 16-Contact, 2-Row, 0.4mm Pitch, Solder Termination
- RS Stock No.:
- 179-0865
- Mfr. Part No.:
- AXT316124
- Manufacturer:
- Panasonic
Temporarily out of stock - back order for despatch 16-08-2024, delivery within 2 working days
Added
Price Each (In a Pack of 5)
€0.874
(exc. VAT)
€1.075
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | €0.874 | €4.37 |
| 25 - 95 | €0.80 | €4.00 |
| 100 - 245 | €0.774 | €3.87 |
| 250 - 495 | €0.754 | €3.77 |
| 500 + | €0.734 | €3.67 |
| *price indicative | ||
- RS Stock No.:
- 179-0865
- Mfr. Part No.:
- AXT316124
- Manufacturer:
- Panasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
FEATURES
“TOUGH CONTACT” construction for excellent vibration
resistance
Pattern wiring possible on PC board of the connector
undersurface
Models that support an ambient temperature of 125°C are
also available.
Connectors for inspection available
Shield type is also available.
APPLICATIONS
Mobile devices and industrial equipment
“TOUGH CONTACT” construction for excellent vibration
resistance
Pattern wiring possible on PC board of the connector
undersurface
Models that support an ambient temperature of 125°C are
also available.
Connectors for inspection available
Shield type is also available.
APPLICATIONS
Mobile devices and industrial equipment
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Type | Socket |
| Mounting Type | Surface Mount |
| Stacking Height | 1.5mm |
| Termination Method | Solder |
| Current Rating | 12A |
| Voltage Rating | 60 V |
| Series | P4S |
| Contact Material | Copper |
