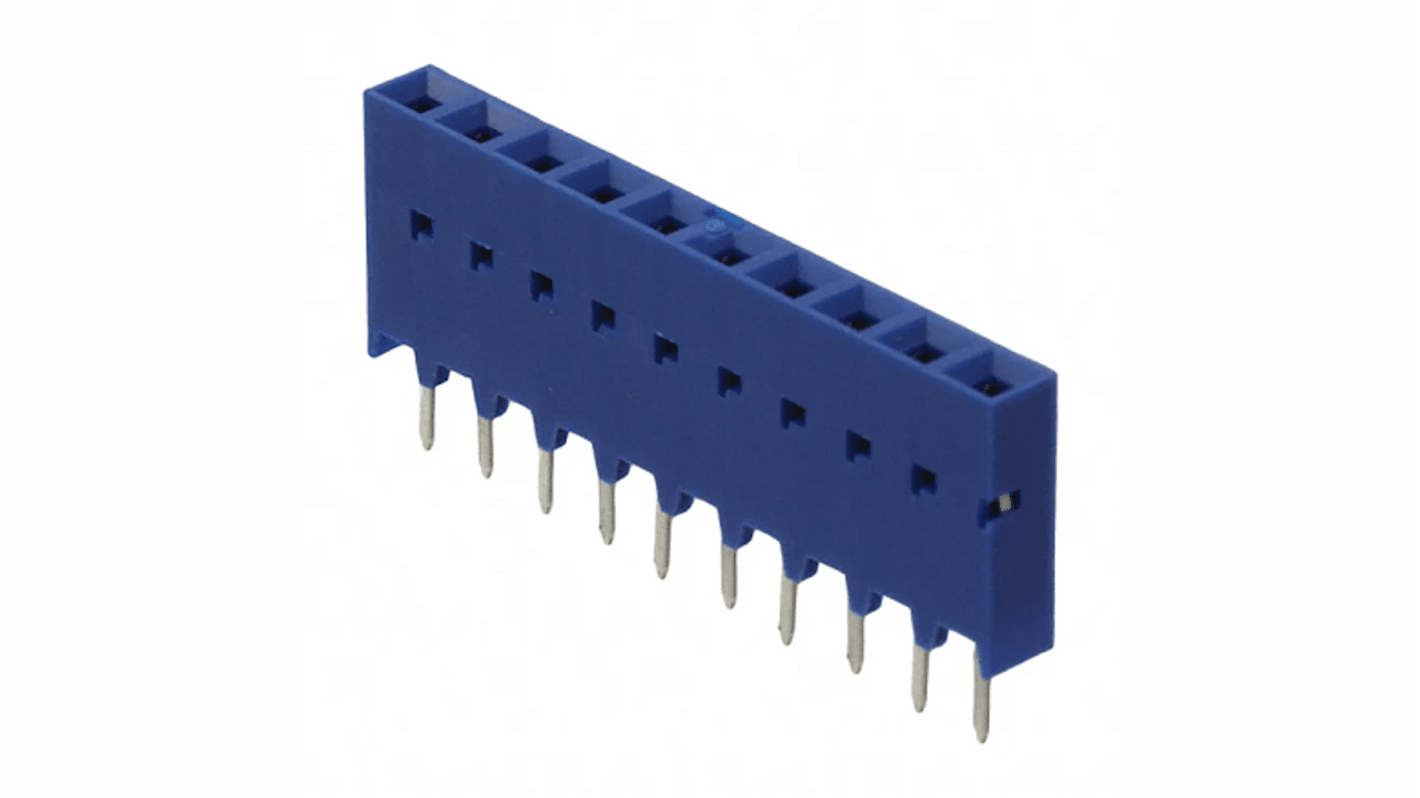

Amphenol ICC Surface Mount PCB Socket, 10-Contact, 1-Row, 2.54mm Pitch
- RS Stock No.:
- 246-3045
- Mfr. Part No.:
- 75915-310LF
- Manufacturer:
- Amphenol ICC
483 In stock for delivery within 2 working days
Added
Price Each (In a Tube of 23)
€1.00
(exc. VAT)
€1.23
(inc. VAT)
| Units | Per unit | Per Tube* |
| 23 - 115 | €1.00 | €23.00 |
| 138 - 253 | €0.88 | €20.24 |
| 276 + | €0.745 | €17.135 |
| *price indicative | ||
- RS Stock No.:
- 246-3045
- Mfr. Part No.:
- 75915-310LF
- Manufacturer:
- Amphenol ICC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
BERGSTIK MezzSelect Connectors
Professional range of 2.54mm pitch FCI headers from the BERGSTIK series.
Straight or Right Angle body orientation available
Phosphor Bronze
2.54mm Pitch
Solder
Phosphor Bronze
2.54mm Pitch
Solder
The Amphenol ICC single row, top entry vertical receptacles board to board connector has a pre-stressed, dual beam design to enable low insertion force which has 3A DC maximum per individual contact and 2A DC maximum per contact for fully energized connec
4-wall contact design for signal protection
Operating temperature range from -65°C to +125°C
Compatible with wave soldering process
Dielectric withstanding voltage up to 1000V RMS
Gold or tin material plating
Operating temperature range from -65°C to +125°C
Compatible with wave soldering process
Dielectric withstanding voltage up to 1000V RMS
Gold or tin material plating
PCB Mounted
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Type | Socket Strip |
| Mounting Type | Surface Mount |
