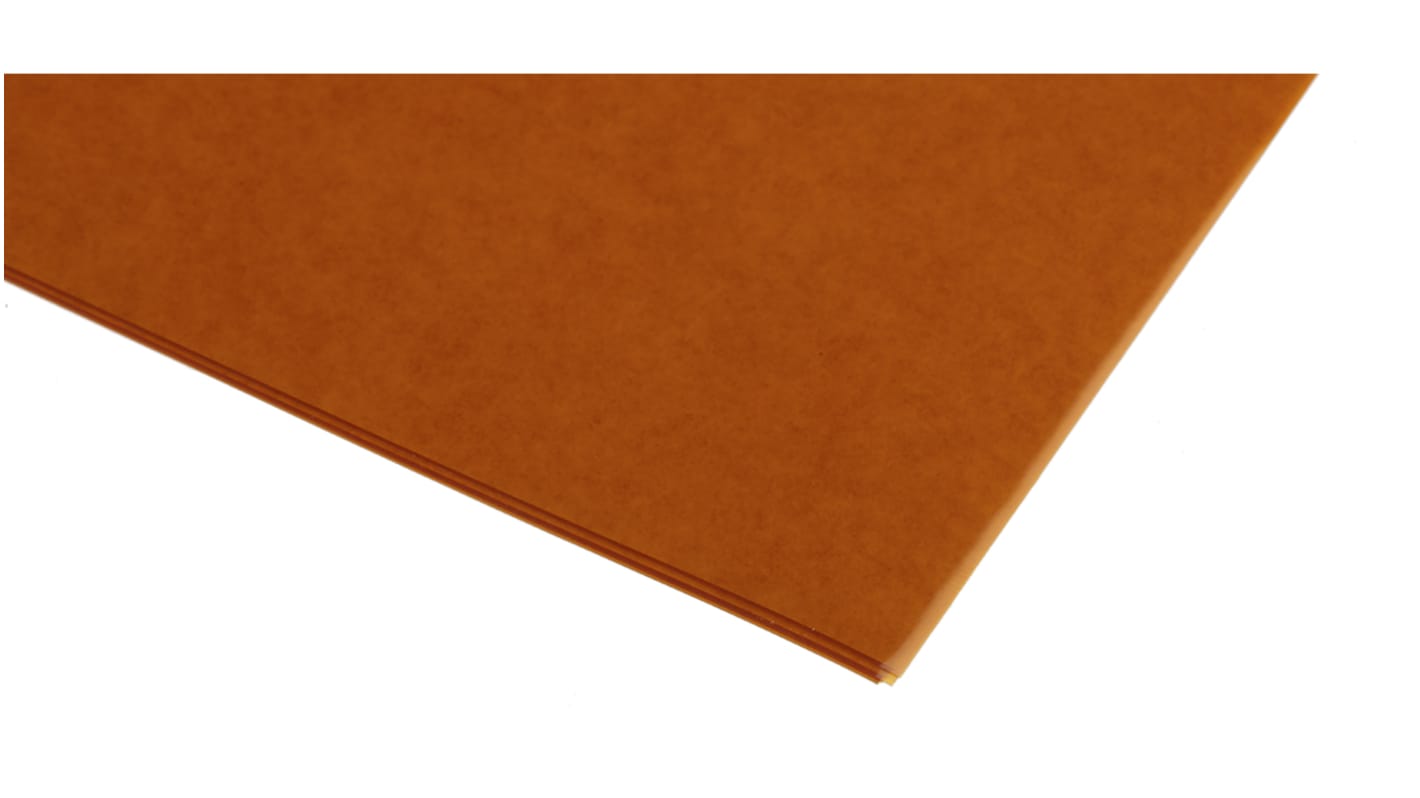

Kapton HN Thermal Insulating Film, 304mm x 200mm x 0.05mm
- RS Stock No.:
- 536-3952
- Mfr. Part No.:
- KAPTON FILM 304X200X0.05MM
- Manufacturer:
- DuPont
1 Within 1 working day(s) (IE stock)
25 Within 2 working day(s) (EU stock)
Added
Price 1 Lot of 5
€78.46
(exc. VAT)
€96.51
(inc. VAT)
| Lot(s) | Per Lot | Per unit* |
| 1 - 2 | €78.46 | €15.692 |
| 3 - 5 | €72.96 | €14.592 |
| 6 - 11 | €69.04 | €13.808 |
| 12 + | €62.76 | €12.552 |
| *price indicative | ||
- RS Stock No.:
- 536-3952
- Mfr. Part No.:
- KAPTON FILM 304X200X0.05MM
- Manufacturer:
- DuPont
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
DuPont Insulating Film
The DuPont insulating film has a length of 304mm, a width of 200mm and thickness of 0.05mm. It is designed to heat any surface for various heating applications. This Kapton HN insulating film can be laminated, metallized, punched, formed, or adhesive-coated. This insulating film possesses a unique combination of properties ideal for a variety of applications in many different industries.
Features and Benefits
Density is 1.42g/cc
Excellent physical, electrical and mechanical properties maintained over a wide temperature range, up to 400°C
High electrical insulation at elevated temperatures is 1012 ohm-cm at 200°C
Thermal conductivity is 0.16W/mK
Excellent physical, electrical and mechanical properties maintained over a wide temperature range, up to 400°C
High electrical insulation at elevated temperatures is 1012 ohm-cm at 200°C
Thermal conductivity is 0.16W/mK
Applications
Automotive diaphragms sensors and manifolds
Electrical insulation
Electronic parts
Etching
Fibre optics cable
Insulation blankets
Insulation tubing
Mechanical parts
Pressure sensitive tape
Shims
Electrical insulation
Electronic parts
Etching
Fibre optics cable
Insulation blankets
Insulation tubing
Mechanical parts
Pressure sensitive tape
Shims
Certifications
ASTM D-5213 (type 1, item A)
IPC 4202/1
IPC 4202/1
Specifications
Attribute | Value |
|---|---|
| Material | Kapton HN |
| Length | 304mm |
| Width | 200mm |
| Thickness | 0.05mm |
| Density | 1.42g/cm³ |
| Dielectic Strength | 118kV/mm |
| Thermal Conductivity | 0.16W/mK |
| Maximum Operating Temperature | +400°C |
