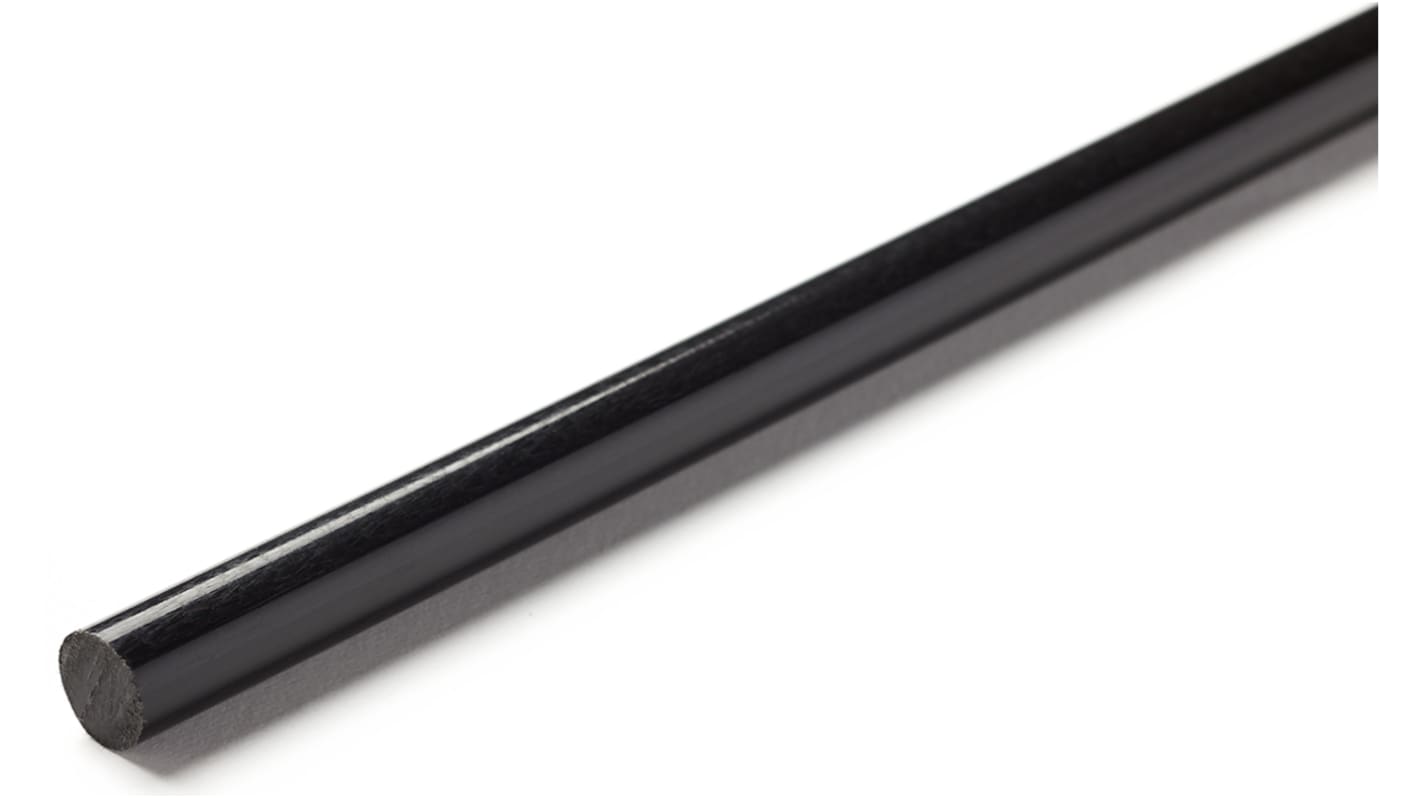

RS PRO Black Nylon Rod, 1m x 30mm Diameter

  • RS Stock No. 282-0676
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Nylon 6

Black extruded Nylon 6 containing MoS2

Good sliding and dry running properties
Resistant to oils, grease, petrol etc.
Easily welded, bonded, machined and polished
UV and weather resistant
Suitable for friction bearings/strips, gears, castors, pulleys, chains, wheels and machine parts etc
Black in colour
Tolerance thickness sheets: +0.2 mm → +0.9 mm

Note

This material is not electrically insulating

Standards

DIN 50 014

Natural & Cast Nylon

Specifications
Attribute Value
Colour Black
Length 1m
Material Nylon
Form Rod
Rod Diameter 30mm
Density 1.14g/cm³
Tensile Strength 75 MPa
Flammability Rating UL 94 HB
Hardness 107 Ball Indentation
Maximum Operating Temperature +160°C
Elongation 25%
Water Absorption 8 9%
26 In stock for delivery within 2 working days
Unit of sale: 1 Lot of 2
24.03
(exc. VAT)
29.56
(inc. VAT)
Lot(s)
Per Lot
Per unit*
1 - 2
€24.03
€12.015
3 - 5
€22.35
€11.175
6 - 11
€21.16
€10.58
12 +
€19.23
€9.615
*price indicative
