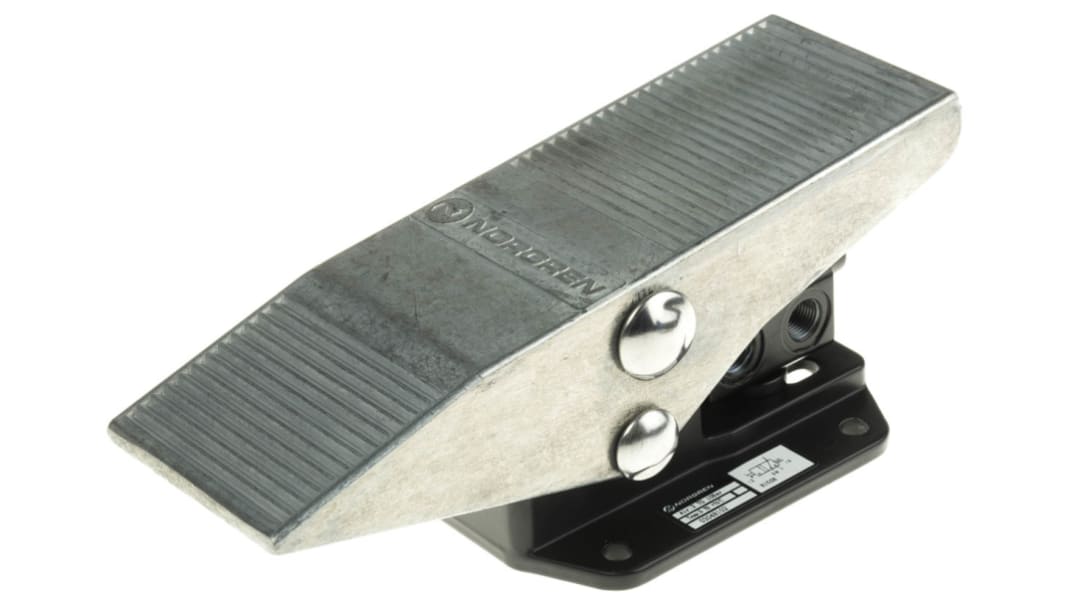

Norgren Pedal 3/2 Pneumatic Manual Control Valve 03 Series

  • RS Stock No. 724-239
  • Mfr. Part No. 03048102
  • Manufacturer Norgren
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Norgren Super X Series Pedal Actuated Valves

Norgren Super X series 2 way manually actuated spool valves with foot pedal actuator. Suitable for multi-directional flow and dual supply applications. The plunger on this valve is designed for axial loading.

Features and Benefits

  • Made from lightweight, corrosion-resistant materials
  • High flow capacity

  • Maximum operating pressure 10 bar

  • Temperature range 0°C to +70°C

//media.rs-online.com/t_line/L724217-02.gif
//media.rs-online.com/t_line/L724217-03.gif
//media.rs-online.com/t_line/LD724223-02.gif
//media.rs-online.com/t_line/LE724223-01.gif

Norgren, Parker & Herga

Foot switches with a maximum operating pressure of 10 bar.

Specifications
Attribute Value
Control Mechanism Pedal
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series Super X
Control Button/Switch Colour Black
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
12 In stock for delivery within 2 working days
Unit of sale: Each
146.93
(exc. VAT)
180.72
(inc. VAT)
units
Per unit
1 - 4
€146.93
5 +
€142.40
