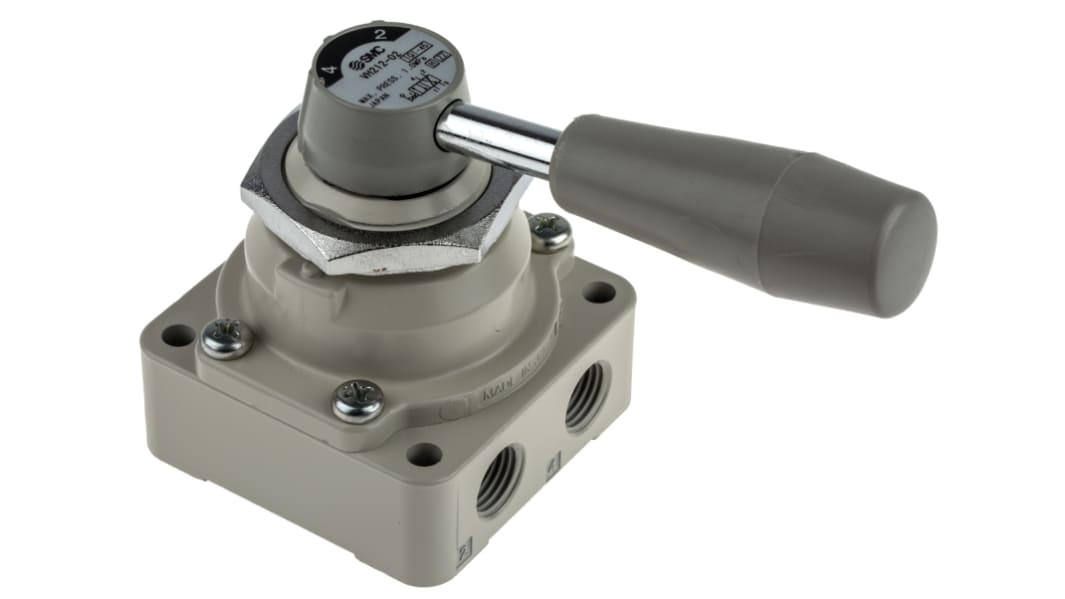

SMC Handle 4/2 Pneumatic Manual Control Valve VH Series

  • RS Stock No. 217-6159
  • Mfr. Part No. VH212-02
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

Series VH Hand Valves

The SMC VH series are compact rotary hand valves with a variety of flow rates. Suitable for applications that require manual directional control. These valves are easy to operate while offering a high tolerance to contamination.

Body mounted or panel mounted options
Proof pressure 1.5 MPa
Operating angle 90 °
Self cleaning
Wiping action

//media.rs-online.com/t_line/L217613-01.gif
//media.rs-online.com/t_line/LE217613-01.gif
//media.rs-online.com/t_line/LI217613-01.gif

SMC VCH Series

Specifications
Attribute Value
Control Mechanism Handle
Function 4/2
Connection Port Thread Rc 1/4
Thread Size 1/4in
Thread Standard Rc
Manufacturer Series VH
Maximum Operating Pressure 1 MPa
Body Material Die Cast Aluminium
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Number of Ports 4/2
2 Within 1 working day(s) (IE stock)
14 Within 2 working day(s) (EU stock)
Unit of sale: Each
63.98
(exc. VAT)
78.70
(inc. VAT)
units
Per unit
1 - 4
€63.98
5 +
€62.04
