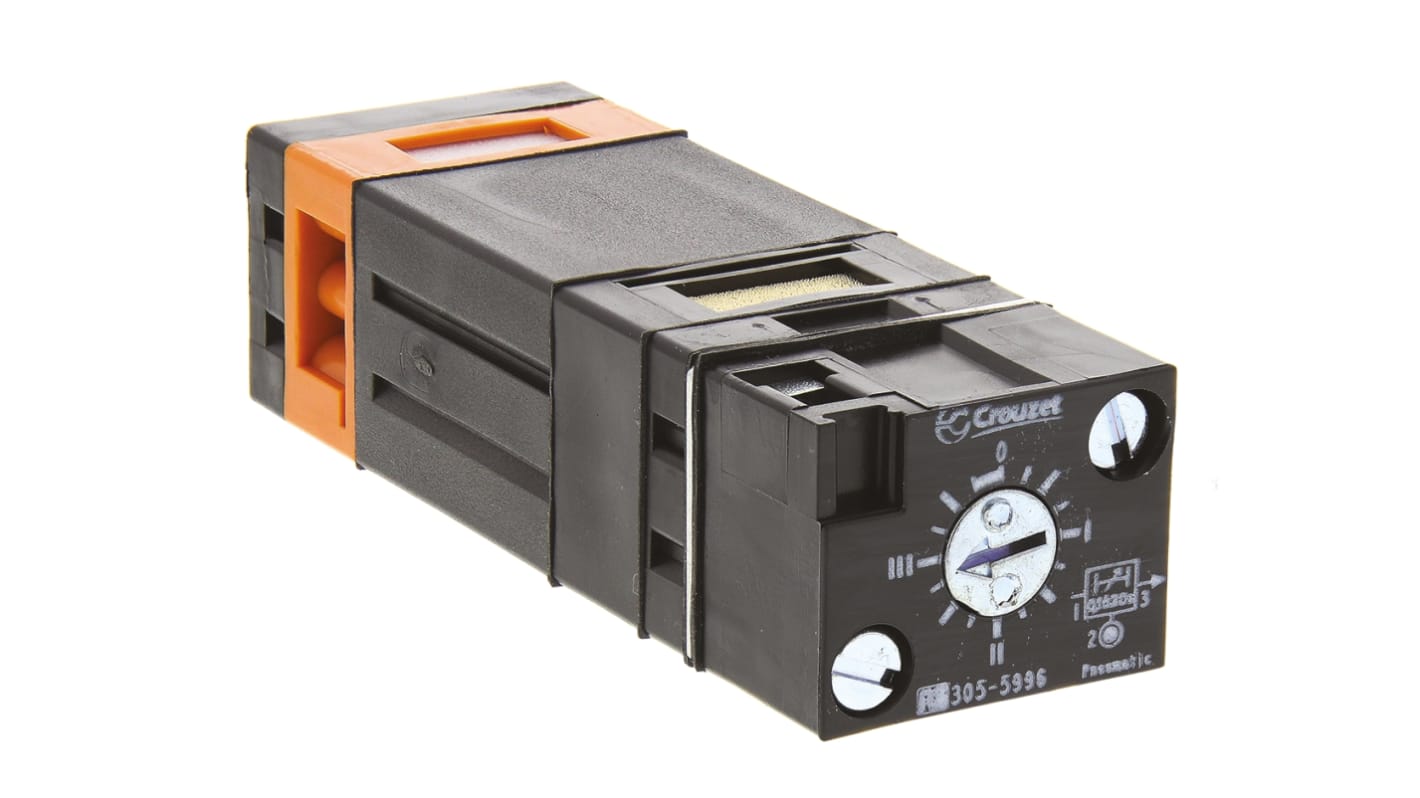

Crouzet 81 series 0.1s to 30s Pneumatic Timer, 8 bar max
- RS Stock No.:
- 305-5996
- Mfr. Part No.:
- 81503720
- Manufacturer:
- Crouzet
5 Within 2 working day(s) (EU stock)
23 Within 2 working day(s) (EU stock)
Added
Price Each
€180.54
(exc. VAT)
€222.06
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €180.54 |
| 5 - 9 | €174.99 |
| 10 - 24 | €170.26 |
| 25 - 49 | €165.78 |
| 50 + | €161.53 |
- RS Stock No.:
- 305-5996
- Mfr. Part No.:
- 81503720
- Manufacturer:
- Crouzet
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Crouzet Pneumatic Timer
The Crouzet 81 series pneumatic adjustable positive time delay module requires operating pressure ranging between 2bar and 8bar. This timer has a counting range from 0.1 seconds to 30 seconds. On the application of a pilot signal, the reservoir starts to fill via the flow restrictor. After the set time delay the relay is operated and an output is given. This timer will not reset until the pilot signal is removed.
Features and Benefits
Orifice diameter is 2.7mm
Flow rate at 6bar is 170NL/minute
Mechanical operating life is >10^7
Operating temperature ranging between -5°C and 50°C
Flow rate at 6bar is 170NL/minute
Mechanical operating life is >10^7
Operating temperature ranging between -5°C and 50°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Maximum Time | 30s |
| Minimum Time | 0.1s |
| Maximum Operating Temperature | +50°C |
| Manufacturer Series | 81 |
| Minimum Operating Pressure | 2bar |
| Maximum Operating Pressure | 8 bar |
| Minimum Operating Temperature | -5°C |
