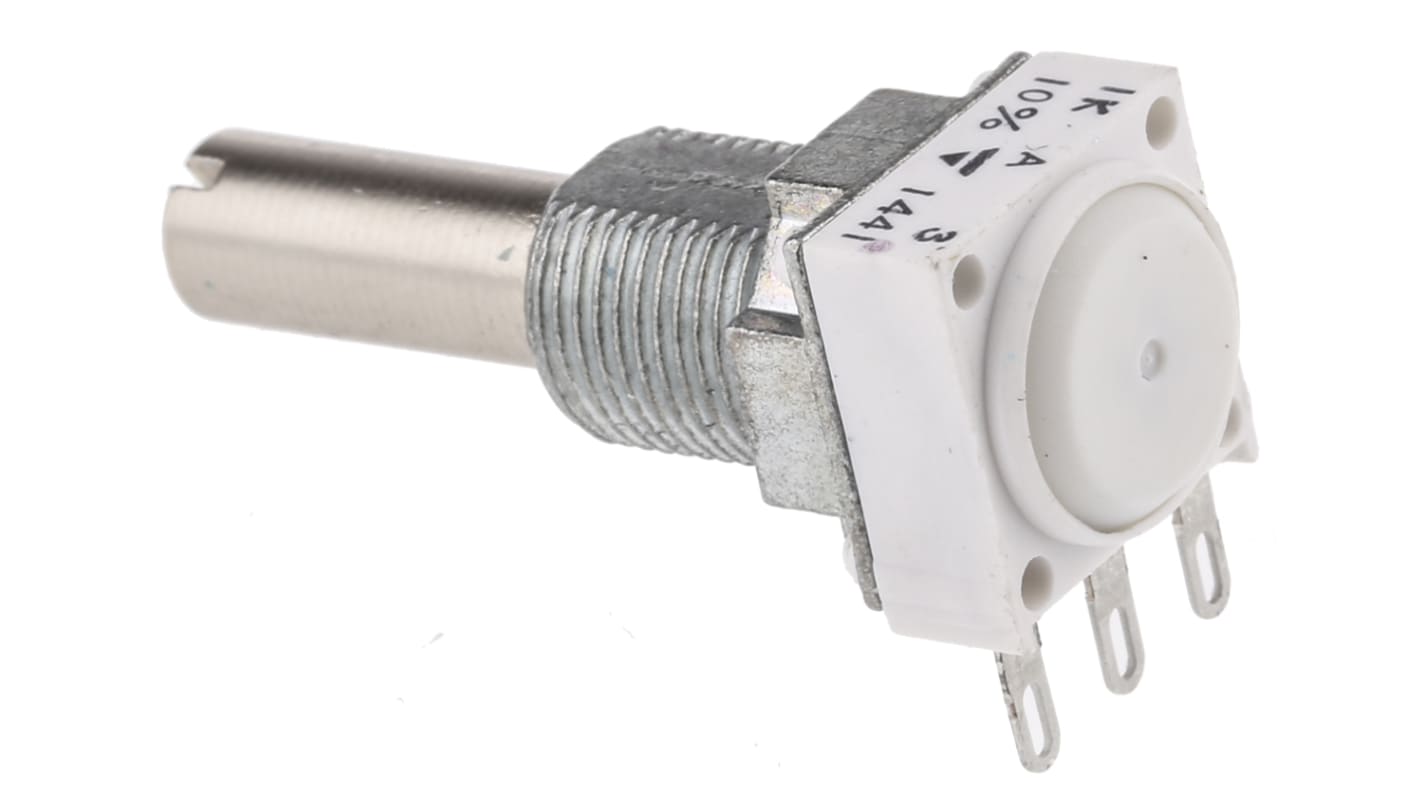

Vishay 1 Gang Rotary Cermet Potentiometer with a 6 mm Dia. Shaft, 1kΩ, ±10%, 1W, Linear P11S1V0FLSY00102KA

  • RS Stock No. 790-4362
  • Mfr. Part No. P11S1V0FLSY00102KA
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

12mm P11 Series

Cermet track potentiometer with metal body and shaft
Panel mounting, solder pin connection
Single or double linear & logarithmic models
Insulation resistance >1000GΩ at 500Vdc
Environmental class 55/125/56
Enclosures class IP64
Linear tracks rated 1W, log tracks 0.5W

Standards

CECC 41301-004; NFC 83253; LNZ, GAM T1

Supplied with

metal lock washer and nut.

//media.rs-online.com/t_line/LF188530-10.gif
Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 1 kΩ
Number of Gangs 1
Number of Turns 1
Power Rating 1W
Electrical Taper Linear
Element Material Cermet
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 25mm
Shaft Diameter 6 mm
Tolerance ±10%
Actuator Type Slotted Shaft
Series P11S
Temporarily out of stock - back order for despatch 27-07-2020, delivery within 2 working days
Unit of sale: Each
11.07
(exc. VAT)
13.62
(inc. VAT)
units
Per unit
1 - 49
€11.07
50 - 99
€8.51
100 - 249
€7.66
250 - 499
€6.60
500 +
€6.37
Packaging Options:
