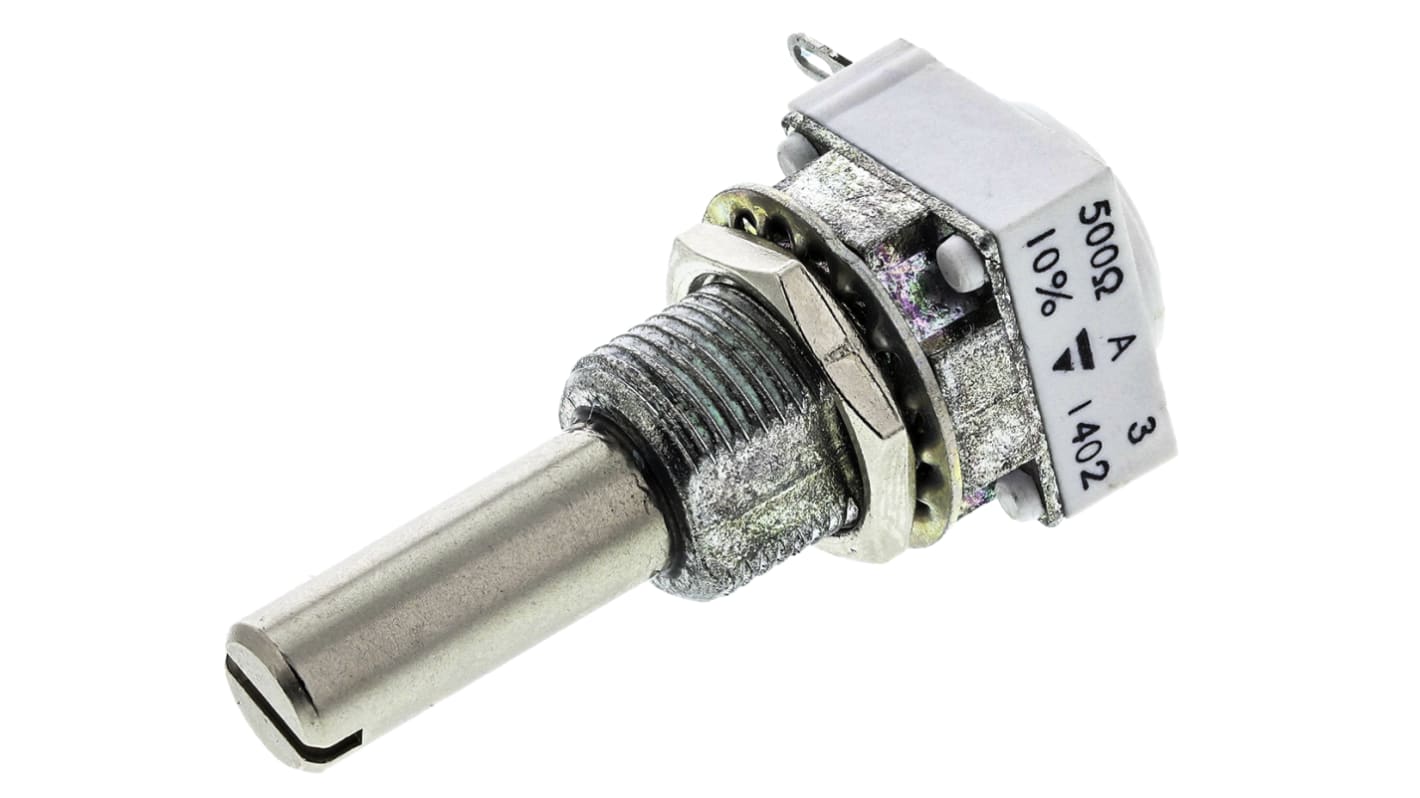

Vishay 1 Gang Rotary Cermet Potentiometer with a 6 mm Dia. Shaft, 500Ω, ±10%, 1W, Linear P11S1V0FLSY00501KA

  • RS Stock No. 790-4390
  • Mfr. Part No. P11S1V0FLSY00501KA
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

12mm P11 Series

Cermet track potentiometer with metal body and shaft
Panel mounting, solder pin connection
Single or double linear & logarithmic models
Insulation resistance >1000GΩ at 500Vdc
Environmental class 55/125/56
Enclosures class IP64
Linear tracks rated 1W, log tracks 0.5W

Technical specification
Electrical rotation: 270°±10°
Mechanical rotation: 300°±5°
Dielectric strength (RMS): 1500Vac
Shaft diameter: 6mm
Insulation resistance >1000GΩ at 500Vdc
Temperature Coefficient: ±100ppm/°C
Environmental Class: 55/125/56
Enclosures Class: IP64

Standards

CECC 41301-004; NFC 83253; LNZ, GAM T1

Supplied with

metal lock washer and nut.

//media.rs-online.com/t_line/LF188530-10.gif
Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 500 Ω
Number of Gangs 1
Number of Turns 1
Power Rating 1W
Electrical Taper Linear
Element Material Cermet
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 25mm
Shaft Diameter 6 mm
Tolerance ±10%
Actuator Type Slotted Shaft
Series P11S
37 In stock for delivery within 2 working days
Unit of sale: Each
8.92
(exc. VAT)
10.97
(inc. VAT)
units
Per unit
1 - 49
€8.92
50 - 99
€6.92
100 - 249
€6.47
250 - 499
€6.01
500 +
€5.72
