- RS Stock No.:
- 190-7932
- Mfr. Part No.:
- MAX1563ETC+
- Manufacturer:
- Maxim Integrated
- RS Stock No.:
- 190-7932
- Mfr. Part No.:
- MAX1563ETC+
- Manufacturer:
- Maxim Integrated
Technical data sheets
Legislation and Compliance
Product Details
Programmable Current Limit (1A to 4A) with Resistor
Autoreset Feature Saves System Power
20ms Fault-Blanking Circuitry
Active-High/Low Control Logic
Fault-Indicator Output
Thermal-Overload Protection

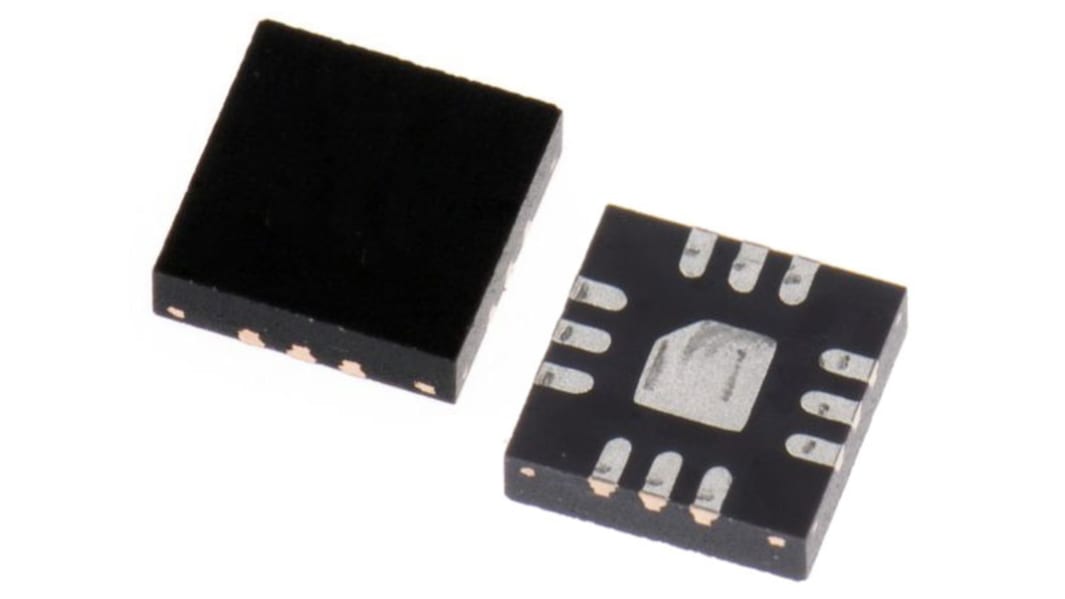

Smaller 4mm x 4mm Thin QFN Package (MAX1563)
3μA Shutdown Current
Applications
Desktop Computers
Docking Stations
Notebook Computers
PDAs and Palmtop Computers
USB Ports and Hubs
Autoreset Feature Saves System Power
20ms Fault-Blanking Circuitry
Active-High/Low Control Logic
Fault-Indicator Output
Thermal-Overload Protection
Smaller 4mm x 4mm Thin QFN Package (MAX1563)
3μA Shutdown Current
Applications
Desktop Computers
Docking Stations
Notebook Computers
PDAs and Palmtop Computers
USB Ports and Hubs
Specifications
Attribute | Value |
---|---|
Power Switch Topology | High Side |
Power Switch Type | High Side |
Switch On Resistance | 50mΩ |
Maximum Operating Supply Voltage | 5.5 V |
Maximum Operating Current | 80µA |
Protection Features | Thermal Shutdown |
Mounting Type | Surface Mount |
Package Type | TQFN |
Pin Count | 12 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 4.1 x 4.1 x 0.75mm |
