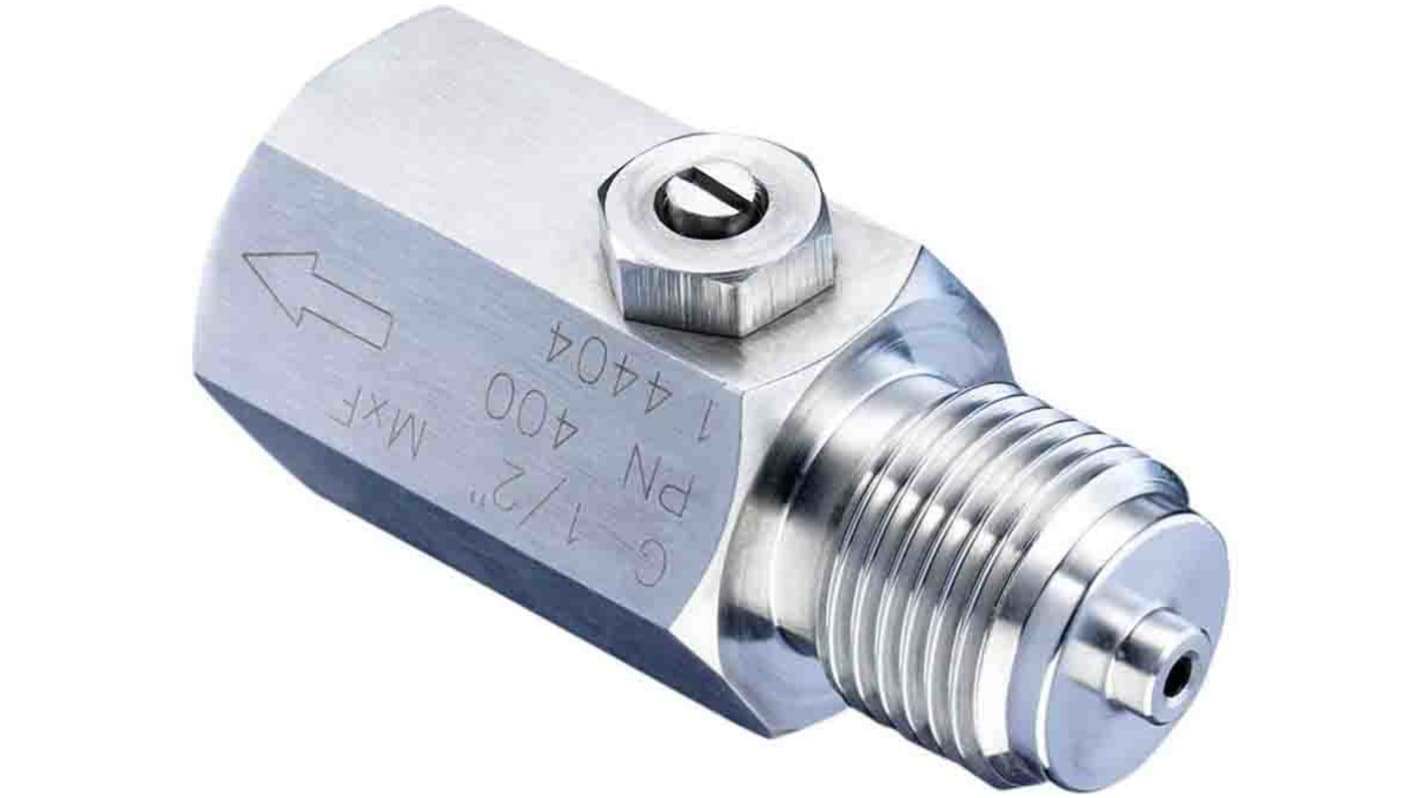

Bourdon Adapter, G 1/2 Female, G 1/2 Male, 400bar max
- RS Stock No.:
- 184-6117
- Mfr. Part No.:
- ARA-10.D30L
- Manufacturer:
- Bourdon
13 In stock for delivery within 2 working days
Added
Price Each
€74.18
(exc. VAT)
€91.24
(inc. VAT)
| Units | Per unit |
| 1 + | €74.18 |
- RS Stock No.:
- 184-6117
- Mfr. Part No.:
- ARA-10.D30L
- Manufacturer:
- Bourdon
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Pulsation dampeners are used to protect pressure measurement instruments from ram effects and fluid pulses. They can be adjusted even during use.In use, the ARA 06 has a greater operating adjustment range and can be used with manometers as well as with transmitters. Further, the ARA 06 is suitable for higher pressure and temperature ranges.The ARA 10 must be screwed down fully then slightly unscrewed (1/8 turn maximum) to adjust the damping. Its adjustment range is thus smaller than that of the ARA 06. It cannot be used with transducers.
Improves readability of pressure gauges
Reduces the effect of pulsations
Max. 600 bar
Max. 250 °C
Option: NACE conform
Applications
Oil & Gas / Chemical
Water & Waste water
Energy
Machinery
Reduces the effect of pulsations
Max. 600 bar
Max. 250 °C
Option: NACE conform
Applications
Oil & Gas / Chemical
Water & Waste water
Energy
Machinery
Specifications
Attribute | Value |
|---|---|
| Accessory Type | Adapter |
| Connector A | G 1/2 Female |
| Connector A - Gender | Female |
| Connector A - Thread Size | 1/2in |
| Connector A - Thread Standard | G |
| Connector B | G 1/2 Male |
| Connector B - Gender | Male |
| Connector B - Thread Size | 1/2in |
| Connector B - Thread Standard | G |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 400bar |
