Allen Bradley 800F Series, BLACK, BLUE, GREEN, RED, WHITE, YELLOW Push Button Head, Alternate, 22.5mm Cutout

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Pushbutton Operators

Finished with corrosion resistant anodised plating
Low front of panel profile

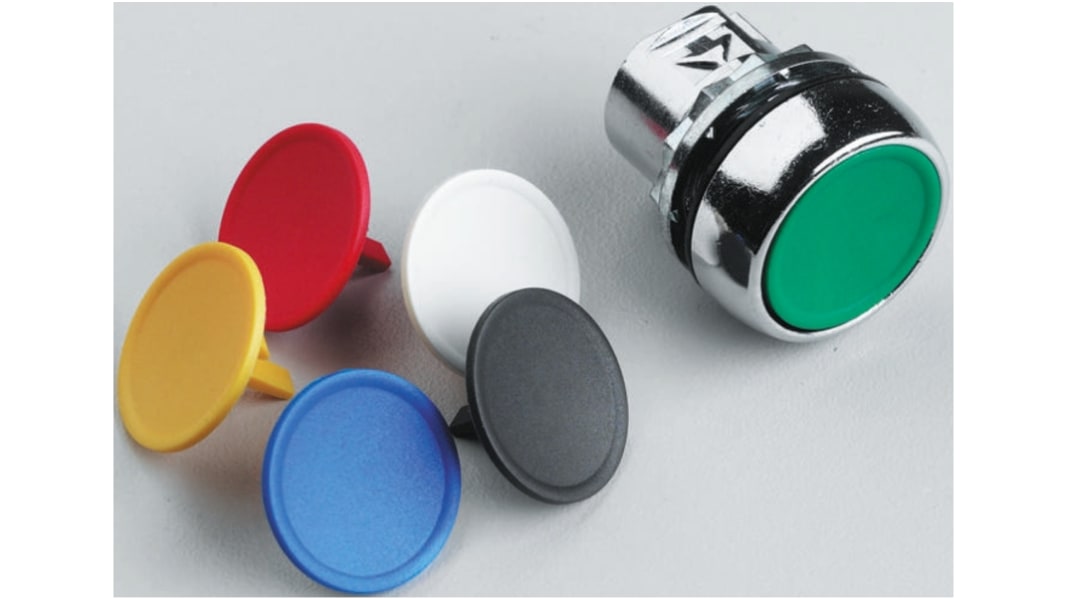

Multi-coloured types contain 1 cap of each colour

800F Series Pushbuttons & Indicators

The 800F range of Push Buttons is designed and manufactured to meet demanding performance specifications. Using state-of-the art solid modelling techniques, each component built into 800F Push Buttons is optimized for durability and safe performance.,Designed to conform with the industry standard 22mm hole fixing requirements, the 800F range covers the following products.

Illuminated/non-illuminated push-buttons and mushroom operators
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self monitoring contact block
Low front of panel profile
Selection of silicone boots are available
Plastic enclosures
Up to six circuits per operator
Metal operators offer ruggedness and durability
IP66 protection class
Meets CE/UL/CSA standards and CCC (Chinese standard) compliant
Finished with corrosion-resistant anodized plating
Single person panel installation
Easy to install operators provide significant time and cost savings

Attribute Value
Series 800F
Cutout Diameter 22mm
Push Button Colour Black, Blue, Green, Red, White, Yellow
Push Button Shape Round
Push Button Actuation Alternate
Push Button Style Round
IP Rating IP65, IP66
1 In stock for delivery within 2 working days
Unit of sale: Each
(exc. VAT)
(inc. VAT)
Per unit
1 +
