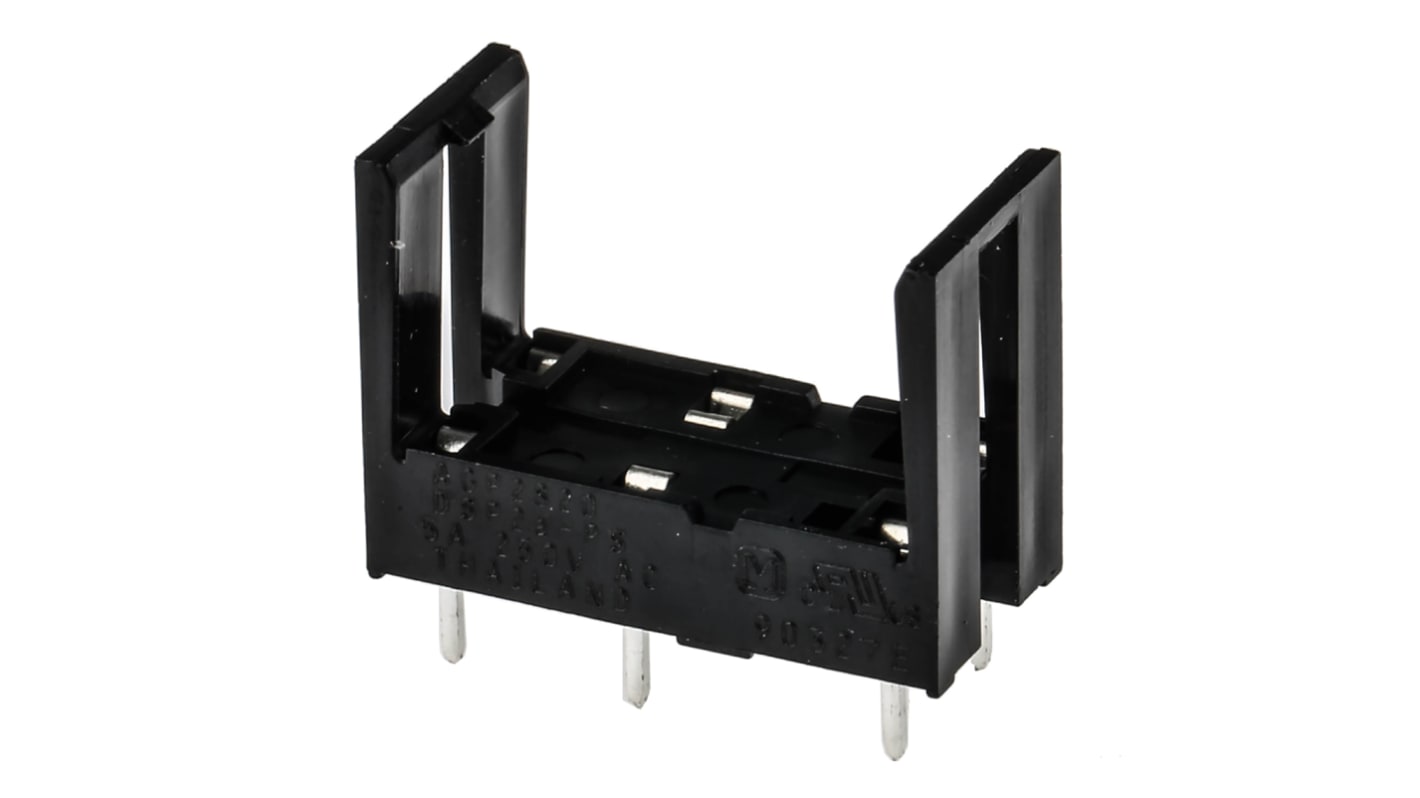

Panasonic 8 Pin Relay Socket

  • RS Stock No. 173-8193
  • Mfr. Part No. DSP2APS
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

Panasonic Relay Socket

The Panasonic 8-pole DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 5A and voltage rating of 250VAC.
Note:
Reverse polarity types have a part number with an R suffix

Features and Benefits

High contact rating
High switching capability
High sensitivity
High break-down voltage
Sealed construction allows automatic washing

Applications

Office and industrial electronic devices
Measuring instruments
Office equipment
Temperature controllers
Programmable logic controllers

Certifications

UL approved
CSA approved
TUV approved

Specifications
Attribute Value
Accessory Type Socket
Number of Contacts 8
200 In stock for delivery within 2 working days
Unit of sale: Each (In a Box of 50)
2.584
(exc. VAT)
3.178
(inc. VAT)
units
Per unit
Per Box*
50 - 200
€2.584
€129.20
250 - 450
€2.455
€122.75
500 +
€2.333
€116.65
*price indicative
