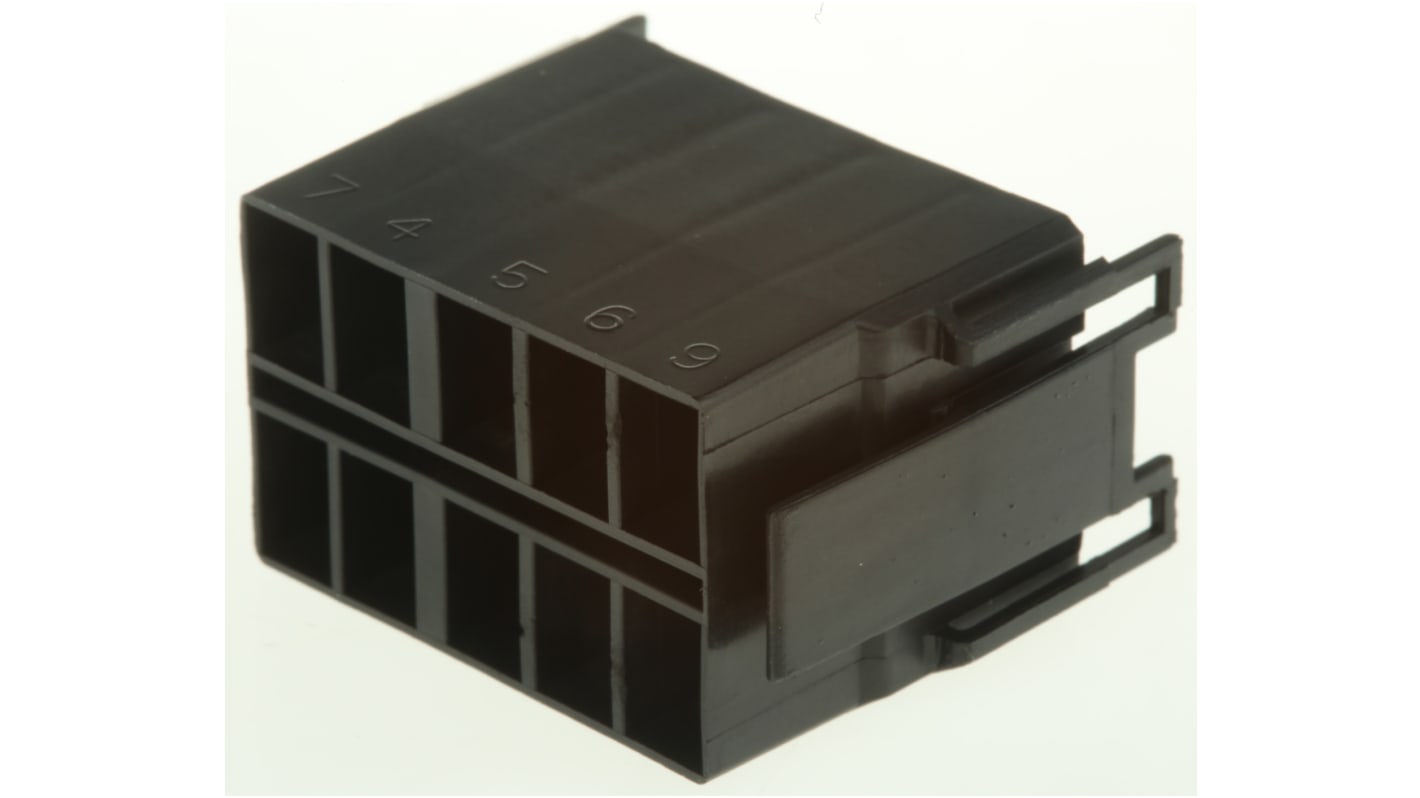

Rocker Switch Connector for use with Rocker Switch

  • RS Stock No. 507-277
  • Mfr. Part No. U2292
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

KR Rocker Cases - Double Pole

Double pole 10A/24Vdc 'snap-in' rocker switch cases, fitted with 6.35x0.8mm quick connect terminals
Available in non illuminated or LED illuminated versions (with 12V or 24V red, green or amber single or twin LED's)
A large variety of switch configurations and actuator colours/markings available
Suitable actuators should be ordered separately (see typically 507-267 and range)
To facilitate wiring harness preparation and quick panel assembly, all double pole switch cases can also be used with rear crimp connector housing 507-576, accepting up to 10 crimps terminals (except for 507-431, which can be used with connector housing 507-560)
Other accessories include switch case housings 507-611 & 507-615, panel blanking plugs 507-318 and actuator removal tool 507-312
Switch case panel knockout 36.80x21.08mm
Operating Temperature -40 to +85 °C
Contact Resistance 10 mΩ
Dielectric Strength 2,000 Vrms 50 Hz min. between terminals

//media.rs-online.com/t_line/L0507277-99.gif

IP68 Modular KR Series

Specifications
Attribute Value
Accessory Type Connector
For Use With Rocker Switch
Stock check temporarily unavailable - call for stock availability
Unit of sale: Each
3.77
(exc. VAT)
4.56
(inc. VAT)
units
Per unit
1 - 9
€3.77
10 - 24
€3.54
25 - 49
€3.24
50 +
€2.94
