TE Connectivity DPDT, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 317-235
- Mfr. Part No.:
- FLN19BLACK04
- Manufacturer:
- TE Connectivity
Temporarily out of stock - back order for despatch 05-11-2024, delivery within 2 working days
Added
Price Each
€34.08
(exc. VAT)
€41.92
(inc. VAT)
| Units | Per unit |
| 1 - 49 | €34.08 |
| 50 - 99 | €32.85 |
| 100 - 249 | €31.72 |
| 250 + | €30.67 |
- RS Stock No.:
- 317-235
- Mfr. Part No.:
- FLN19BLACK04
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Miniature Lever/Rocker Switches
Switches with body and switch mechanism identical to the miniature toggle switches with silver contacts, but fitted with alternative style of actuators in a choice of colours

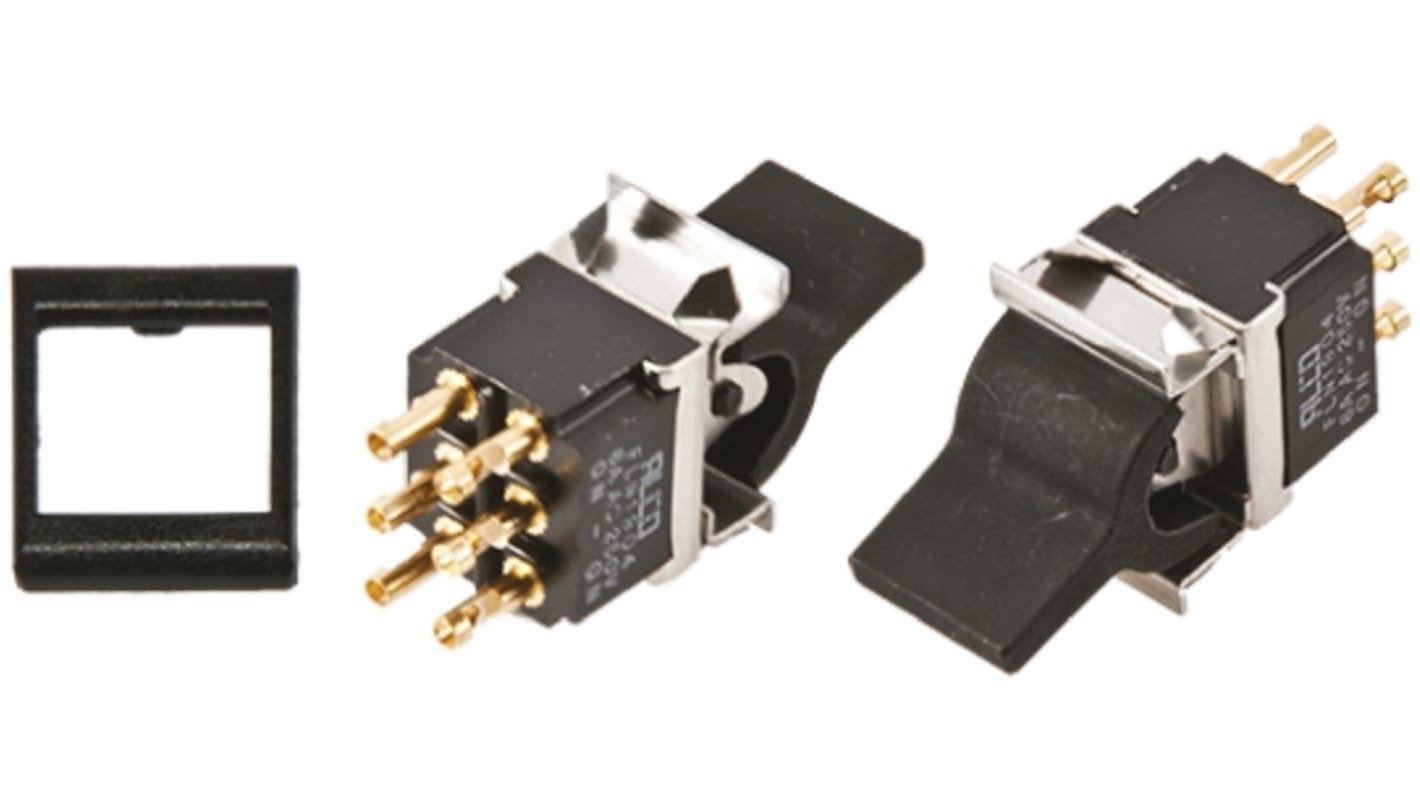

Each switch is supplied with an optional black bezel that may be fitted by snapping it over the flanges on two sides of the switch, prior to fitting to a panel by means of clipping the frame into a prepared cut-out (hole cutter see stock no. 545-323 is suitable)
These switches have the advantage of toggle switch design, compact dimensions, and are useful where toggle levers are undesirable
The use of alternative styles and colours allows the possibility of coding switch functions
Contact Rating-A 6A
Contact Rating-V 28Vdc/250 Vac
Each switch is supplied with an optional black bezel that may be fitted by snapping it over the flanges on two sides of the switch, prior to fitting to a panel by means of clipping the frame into a prepared cut-out (hole cutter see stock no. 545-323 is suitable)
These switches have the advantage of toggle switch design, compact dimensions, and are useful where toggle levers are undesirable
The use of alternative styles and colours allows the possibility of coding switch functions
Contact Rating-A 6A
Contact Rating-V 28Vdc/250 Vac
Approvals
UL; CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | Latching |
| Panel Cut Out Width | 13mm |
| Panel Cut Out Height | 15.9mm |
| Contact Current Rating | 6 A |
| Illuminated | No |
| Mounting Type | Panel Mount |
| Terminal Type | Wire Lead |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 15.9 x 13mm |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +80°C |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Contact Material | Silver Alloy |
